Zaxcom IFB200 ZaxNet Transceiver
Code: ZAX/IFB200
ZaxNet transceiver with built-in recorder can be used as a receiver and transmitter, capable of sending IFB audio, timecode and remote control commands to Zaxcom TRX transmitters and ERX receivers.
For purchasing information
Enquire Now
The IFB200 can be used as either a transmitter or receiver. As a transmitter, it sends IFB audio, timecode and remote control commands to Zaxcom's TRX digital recording wireless transmitters and ERX receivers. It can also be used to monitor audio from a QRX or any other ZaxNet transmitter. The signals are carried on a single RF channel over a 2.4 GHz signal and can be used license-free in almost every country with an IFB audio range of approximately 100 feet and an IFB timecode and remote control range of approximately 400 feet.

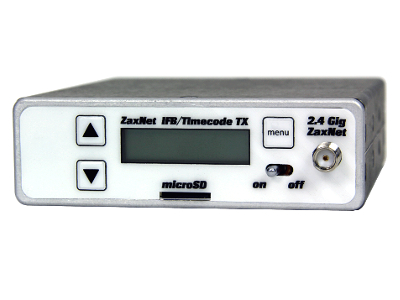

The front has a graphic LCD screen showing timecode and transmitter status. The IFB200 has a built-in 2-channel mixer for combining two separate channels into a mono transmission signal.
The IFB200 can be used in an array of applications – sound cart, sound bag, studio or on the side of your video camera.
Encrypted Audio
Keeps transmitted audio private.
Internal Recording
Records timecoded audio files.
MARF
Highly reliable lossless recording format.
Timecode
Built-in timecode reader and generator.
ZaxNet
Provides wireless timecode, ZaxNet audio and remote control between Zaxcom products.
ZaxNet Remote
Controls your wireless transmitters remotely.
IFB RF Transmitter
| RF Power Output: |
75mW |
| RF Modulation: |
Digital Spread Spectrum |
| RF Frequency Range: |
2.403 to 2.475 GHz |
| RF Frequency Step: |
0.001 GHz (1MHz) |
| RF Bandwidth |
1 MHz |
| Channel Separation: |
2 MHz |
| Antenna Connector: |
50 Ω SSMA Female |
| Emission Designator: |
180 KV2E |
| FCC Part: |
CFR Title 47, Part 18 |
IFB Audio Transmitter Audio
| Dynamic Range: |
103 dB |
| Distortion: |
0.01% |
| Frequency Response: |
20 Hz to 12 kHz |
| High Pass Filter: |
Off or 30 to 220 Hz, Steps: 10 (6 dB Per
Octave) |
| System Group Delay: |
10 ms |

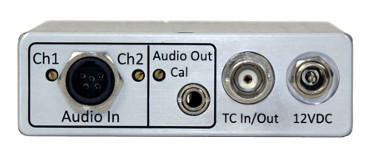

IFB Analog or Digital Audio Input
| Connector: |
TA-5M |
| Type: |
Balanced |
| Level: |
-10 dBu tp +4 dBu |
| Impedance: |
10 k Ω |
| ADC Bit-depth: |
24 bits |
| ADC Sampling Rate: |
48 kHz |
Timecode Input/Output
| Connector: |
BNC |
| Input Level Range: |
1 to 5V, P-P |
| Output level: |
2V P-P |
| Impedance: |
75 Ω |
Timecode Reader / Generator
| Clock Accuracy: |
1.54 PPM (1 Frame Out in 6 Hours) |
| Timecode Type: |
SMPTE |
| Timecode Frame-Rates: |
23.98, 24, 25, 29.97NDF, 29.97DF, 30NDF,
30DF |
Physical
| Weight: |
7.3 oz. |
| Dimensions (H x W x D): |
3.6″ x 3.23 x 1.0″ |
| External Power: |
8 to 18 VDC @ 180 mA |
| Internal Power: |
N/A |
| Display: |
Graphic LCD |
