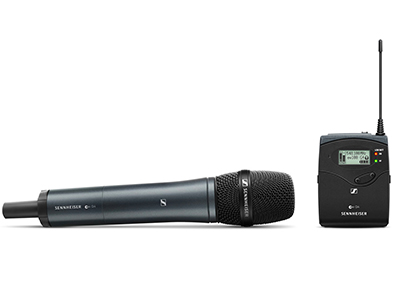

Sennheiser EW 135 G4 Wireless Handheld Mic System (B: 626 - 668 MHz)

Code: SEN/509756

NO LONGER AVAILABLE

Overview
Specifications

The EW 135P is a versatile wireless solution for reporters or presentation moderators. The transmitter and receiver wirelessly link with a single touch of the sync button while the rugged EW 135 microphone resists any bad weather or field condition. Additionally, the G4 model is lighter in weight due to it's aluminum housing and the backlit graphic display has been updated with a high-contrast LCD, blue sync LED making it even easier to read in all lighting conditions.

Features

Rugged all-in-one wireless system with high flexibility for broadcast quality sound
Excellent sound and construction quality
Easy to use and fast setup time
Powerful and reliable wireless transmission
Range: up to 100 meters / 330 feet
Up to 8 hours of operation time

Kit Includes

EK 100 G4 camera receiver
SKM 100 G4 handheld transmitter
MMD 835-1 microphone head
MZQ 1 microphone clamp
CA 2 camera adapter
CL 1 3.5 mm jack cable
CL 100 XLR to 3.5 mm jack adapter cable
Quick guide, safety guide

Specifications

EK 100 G4

Frequency range	B: 626 - 668 MHz
Dimensions	Approx. 82 x 64 x 24 mm
Compander	Sennheiser HDX
THD, total harmonic distortion	≤ 0.9 %
Weight	(incl. batteries) approx. 160 g
Audio output	3.5 mm jack socket: +12 dBu (mono, unbalanced)
Signal-to-noise ratio	≥ 110 dBA
Switching bandwidth	up to 42 MHz
Peak deviation	±48 kHz
Nominal deviation	±24 kHz
Operating time	Typically 8 h
Modulation	Wideband FM
Power supply	2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption	at nominal voltage: typ. 180 mA with receiver switched off: ≤ 25 µA
Adjacent channel rejection	≥ 65 dB
Intermodulation attenuation	≥ 65 dB
Powering	3 V battery / 2.4 V rechargeable battery
Receiving frequency	Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
RF sensitivity	< 1.6 μV for 52 dBA eff S/N
Squelch	low: 5 dBµV, middle: 15 dBµV, high: 25 dBμV
Temperature Range	-10 °C to +55 °C
Receiver Principle	Adaptive diversity
Blocking	≥ 70 dB

SKM 100 G4

Dimensions	Approx. Ø 50 x 265 mm
Compander	Sennheiser HDX
THD, total harmonic distortion	≤ 0.9 %
Weight	(incl. batteries) approx. 450 g
Signal-to-noise ratio	≥ 110 dBA
RF output power	Max. 30 mW
Switching bandwidth	up to 42 MHz
Peak deviation	±48 kHz
Nominal deviation	±24 kHz
Operating time	Typically 8 h
Modulation	Wideband FM
Power supply	2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption	at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 µA
Input impedance	40 kΩ
Max. Input voltage	3 Veff
Powering	3 V battery / 2.4 V rechargeable battery
Transmission frequency	Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
AF frequency response	80 – 18,000 Hz
Temperature Range	-10 °C to +55 °C
Frequency stability	≤ ±15 ppm

ME 2

Connector	3.5 mm jack
Frequency response	50 to 18,000 Hz (ME 2-II)
Max. sound pressure level	130 dB
Cable length	approx. 1.60 m
Transducer principle	pre-polarized condensor microphone
Pick-up pattern	omni-directional
Sensitivity in free field, no load (1kHz)	20 mV/Pa
Equivalent noise level	36 dB
