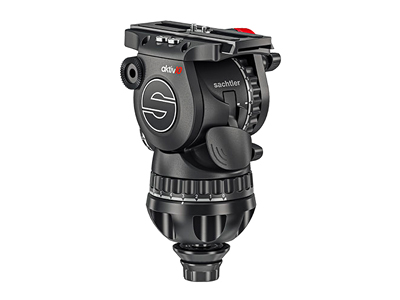

Sachtler aktiv10 Fluid Head

Code: BLO/ST-S2072S

This Sachtler aktiv10 100mm fluid head is perfect for payloads of up to 12 kg. It features both SpeedLevel and SpeedSwap technologies to deliver ultimate flexibility, and giving you time to get the perfect shot in documentary, corporate or news applications.

This item is currently out of stock.

Enquire Now

Overview
Specifications

What's In The Box?

aktiv10 Fluid Head
Sideload Plate S
Pan Bar DV 75 Right

The Sachtler aktiv10 100 mm fluid head is rated for payloads of up to 12 kg. Using the unique SpeedLevel™ technology, it can be levelled in seconds, giving you time to get the perfect shot in documentary, corporate or news applications.

The SpeedSwap™ system delivers the fastest way to switch between tripod and slider in seconds giving you ultimate flexibility.

Key Features

Visible from any height or angle - day or night with Innovative PrismBubble
Capture extreme low angle shots right down to ground with Innovative streamlined mounting system
Switch between tripod and slider in seconds with Revolutionary SpeedSwap system
Create moving stories, whatever the weather with Performance tested to the extreme
Base Type: 100mm Bowl Mount
Maximum Load Capacity: Up to 12kg

Range	aktiv
Pan bar length	430 mm
Payload	0 to 12 kg
Weight	2.90 kg
Pan bar type	Pan bar DV 75
Pan bar attachment	16/-/28 mm
Pan bar count	1
Level bubble	PrismBubble, illuminated
Battery type	CR2032
Adaptor viewfinder extension	No Adaptor
Bowl size	100 mm
Flat base	SpeedSwap base
Camera plate	Sideload plate S
Temperature range	-40 to 60 °C
Tilt range	+90° to -70°
Sliding range	120 mm
Interface Compatibility	Sideload
Counterbalance	15 + 0 steps
Drag	7 + 0 drag settings
