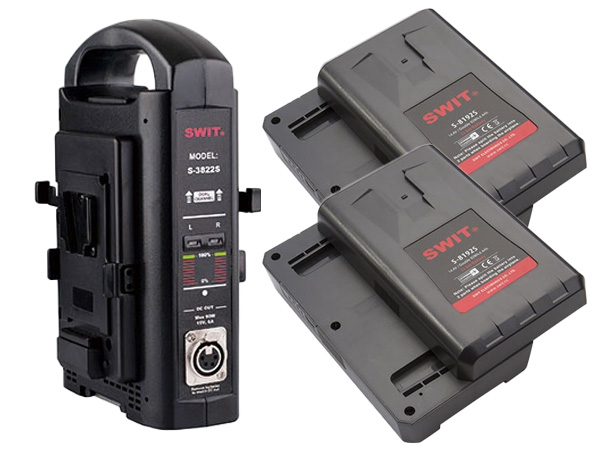

SWIT S-8192S 184Wh Separable V-Lock Fast Charge Battery Bundle

Code: BUN/SBB9

On Sale!

$1,481.82
$1,549.00
12% Savings

With its large 184Wh capacity, the SWIT S-8192S can be easily divided into 2 halves, meaning you are free to travel without running afoul of air transportation regulations.

Add to Cart

This item is already in your cart, click here to update quantities.

ENQUIRE NOW

Got a question about this product?
Send us a message

Low Stock

Limited Stock - Call for availability

What's In The Box?

  • 2x SWI/S-8192S 184Wh Batteries
  • 1x SWI/S-3822S Charger
  • IATA DGR regulations restrict the air transportation of over 100Wh Li-ion battery packs. Luckily the S-8192S can be divided into 2 parts, each part containing 92Wh of capacity, meaning they are not restricted by air transportation regulations. And when using S-8192S, just assemble the 2 parts once you land and you've got a Li-ion battery pack with a large 184Wh capacity!

    184Wh / 12.8Ah High Capacity

    When assembled, the S-8192S consists of 20pcs 18650 battery cells, and reaches 184Wh / 12.8Ah maximum capacity. S-8192S can run regular 30W ENG cameras for approx. 6 hours.

    Reliable V-Lock Connection

    S-8192S features the standard V-Lock connection and adopts the high quality fiber glass V-wedge that ensures the reliable mounting.

    Build-in D-tap DC Output Socket

    A D-tap DC output socket is equipped on the top side of S-8192S battery, for DC14.4V connections such as on-camera lights, monitors, wireless transmitters, etc. The Max Power from D-tap is 100W, 8A.

    4-level LED Power Indicator

    On the side of the battery, there are 4-level LED power indicators allowing you to check the remaining capacity of the battery at a glance.

    SWIT S-3822S V-Lock Charger/AC Adaptor

    S-3822S is a portable 2-channel simultaneous (up to 2 batteries at a time) charger for V-Lock batteries

    AC-DC Adapting Output

    The S-3822S can also be used as an AC-DC adaptor with an output of 14.4V DC, 5A, 72W through its 4-pin XLR DC output.

    Please note: the AC-DC adapting output will not work when battery is charging.

    Key Features

    • V-Lock battery charger
    • 2-ch simultaneous charging
    • 3A charging current per channel
    • LED charging indicators
    • Support AC to 4-pin XLR output
    • Light weight and portable
    Battery

    Nominal Voltage

    14.4V

    Capacity

    92+92Wh/6.4+6.4Ah

    Max output power

    100W

    Max output current

    8A

    Mount Type

    V-Lock

    Operation Temperature

    0-40°C

    Net weight

    Approx 1.27kg

    Dimensions

    168×101×60mm
    Charger
    Input AC 100V-240V 50/60Hz
    Power consumption Max 136W
    Charging output DC 16.8V, 3Ax2-ch
    Adapting output DC 14.4V, 5A
    Working temperature 0°C ~ +40°C
    Working humidity 10% ~ 90%
    Dimension 228×140×120mm
    Weight Approx. 1.0kg
