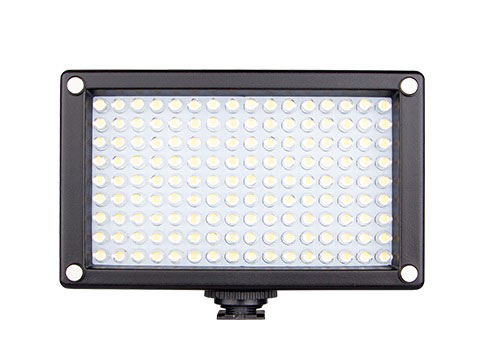

144 LEDs Panel Light
Adjustable between Tungsten and Daylight
The Swit S-2210C is a portable on-camera LED light featuring 144 advanced LEDs, half of which are set at 5600K and half at 3200K color temperature. The LEDs can last in excess of 50,000 hours and eliminate the need to carry spare filament bulbs.
350 Lux @ 1 meter
Only 9W power consumption
When set to full daylight 5600K or full tungsten 3200K settings, the S-2210C outputs max 350Lux illuminance at 1 meter distance while consuming only 9W of power.
10%-100% Dimmable
Flicker free output
The output of the light can be adjusted via a simple rotating knob on the back of the housing. The light output is flicker free, and color temperature will stay constant during dimming.
Magnetic Diffuser Cover
The S-2210C housing features a magnet at each corner of the housing, to attach the included diffuser.
DC 6-17V Power Supply
5.5mm Pole DC input and battery power
The S-2210C accepts a wide 6-17V voltage input, allowing you to power from a DC source as well as from V-mount or Gold (AB) mount batteries, DV batteries and D-tap output sockets. You can also directly mount a 7.2V DV battery onto the rear of S-2210C with the appropriate battery plate. Press the power check button on the rear panel of S-2210C and the 4-level LED indicators will display the remaining battery power. Please note that when there’s DV battery mounted power cannot be input via the DC socket as this will harm the battery.
Interchangeable DV plates
You can power the S-2210C from most popular DV batteries via the easy interchangeable DV battery plates. We supply the following (optional) DV plates:
| Model of Plates | Compatible batteries |
|---|
| S-7004F | SONY NP-F970/770, SWIT S-8972,S-8970,S-8770 |
|---|
| S-7004U | SONY BP-U60/U30, SWIT S-8U63 |
|---|
| S-7004D | Panasonic CGA-D54 VW-VBG58, SWIT S-8D62, S-8D58 |
|---|
| S-7004B | Panasonic VW-VBG6, SWIT S-8BG6 |
|---|
| S-7004J | JVC BN-V428U, SWIT S-8428 |
|---|
| S-7004V | JVC BN-VF823, SWIT S-8823 |
|---|
| S-7004i | SSL-JVC50, SWIT S-8i50 |
|---|
| S-7004C | Canon BP-945/970G, SWIT S-8845, S-8945 |
|---|
| S-7004E | Canon LP-E6, SWIT S-8PE6 |
|---|
Power by Special Compact Battery
If you want a compact battery power solution, you may choose SWIT S-8040 Li-ion battery to instead of the DV plates and DV batteries. The S-8040 was designed for use with the S-2210C, with 7.2V 21Wh/3Ah capacity and can power the S-2210C for two hours. The S-8040 has a 4-level power indicators and a pole-tap charging input socket. You can use SWIT portable Pole-tap charger S-3010D to charge the S-8040.
Connect more lights for more power
The S-2210C provides cold shoe slots on the left, right and top and a cold shoe adaptor on the bottom. You can use several S-2210C lights mounted together to get a brighter panel light source.
Ball Head Bracket
Both Cold shoe and Screw install
The bottom cold shoe adaptor also provides a 1/4” screw thread, and the package provides a ball head bracket so you can adjust the light angle with the ball head.
Standard Package
S-2210C package includes
- 1x Interchangeable DV plate (S-7004 series, optional for different types)
- 1x Magnetic Diffuser Cover
- 1x Cold shoe ball head
- 1x Portable bag
- The S-8040 Li-ion battery and S-3010D charger are optional.
Features
- 144 ultra bright LEDs, 50,000hrs life
- 9W, Max 350Lux @ 1m distance
- 10%-100% flicker free dimming
- 3200K-5600K continuously adjustable
- Magnetic installed diffuser cover
- Interchangeable DV battery plates
- Battery power check
- Connectors to add additional lights
- Ball head, diffuser and bag
