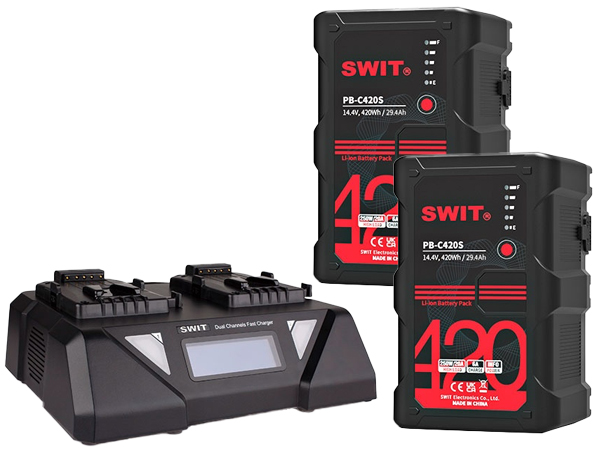

SWIT PB-C420S 420Wh Large Capacity V-Lock Super Fast Charge Battery Bundle

Code: BUN/SBB19

On Sale!

$2,781.82
$2,905.00
12% Savings

The PB-C420S reaches the world’s largest capacity: 420Wh of handheld V-Lock battery, long time power supply for cameras, monitors, lights and many power hungry devices of broadcast and film industry.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when SWIT PB-C420S 420Wh Large Capacity V-Lock Super Fast Charge Battery Bundle is back in stock.

What's In The Box?

  • 2x SWI/PB-C420S 420Wh Batteries
  • 1x SWI/S-3812S Charger
  • PB-C420S reaches the world’s largest capacity: 420Wh of handheld V-Lock battery, long time power supply for cameras, monitors, lights and many power hungry devices of broadcast and film industry.

    Key Features

    • 14.4V, 420Wh/29.1Ah large capacity
    • 250W/20A constant load, 305W peak load
    • 100W/6A fast charging support
    • 2x D-tap power sockets, 150W load
    • 5-LED digital power indicators
    • SONY/RED viewfinder power info display
    • Multiple circuit protections

    14.4V, 420Wh, 2x D-tap

    PB-C420S consists of 24pcs Li-ion cells, 14.4V nominal voltage, 420Wh, 29.1Ah large capacity, and provides with 2x D-tap sockets at left and right side, for camera-top devices.

    250W Constant High Load

    PB-C420S outputs at least 250W/20A high load even at 1% capacity (Peak load up to 305W), to drive high power Cine cameras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output. Over current protection: 24A.

    100W 6A Fast Charging

    PB-C420S supports 100W/6A fast charging to save more than 50% charging time. The 420Wh battery can be charged from 0 to 80% after 3.9 hours, and fully charged within 5.3 hours.

    Reliable SWIT Quality

    The PB-C420S internal controller supports multiple protection circuit, to detect any abnormal conditions includes over load, over charging, over discharging, high temperature, short circuit, etc, and actively protect the devices from potential safely issue. SWIT battery will always be your reliable choice.

    SWIT S-3812S V-Lock Fast Charger

    Key Features

    • 2-ch simultaneous charging
    • Identify battery type and adjust charging method
    • 6A fast charging for SWIT particular batteries
    • 3A charging for normal batteries
    • Support AC to 4-pin XLR output
    • Support battery to 4-pin XLR output
    • LCD display charging/adapting info

    Battery Charging + DC Output

    The S-3812S also outputs DC power via 4-pin XLR port, while simultaneously charging batteries*. Via a 4-pin XLR female to male cable (sold seperately), it can supply 16.8V DC power with a max load of 200W/12A.

    *2 batteries sequential, when AC load is less than 100W
    Battery
    Nominal Voltage 14.4V
    Capacity 420Wh/29.1Ah
    Power Load 250W / 20A constant, 305W peak
    Charging DC 16.8V, 6A
    D-tap 2x D-tap 150W/10A in total
    Mount Type V-Lock
    Charging Temperature 0-40°C
    Discharging Temperature -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)
    Net weight Approx 2.07kg
    Dimensions 155×101×80mm
    Charger
    Input 100~240VA, 50/60Hz
    Power consumption Max 260W
    Charging output DC 16.8V, Max 6A×2-ch
    Adapting output DC 16.8V, Max 12A
    Working temperature 0°C~+40°C
    Working humidity 10%~90%
    Dimensions 272mm×246mm×97mm
    Weight Approx. 1.85kg
