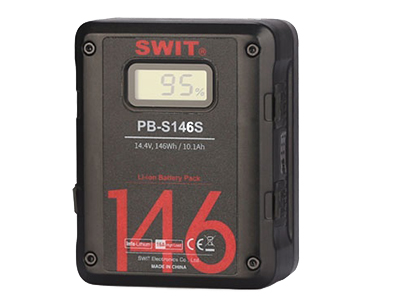

SWIT PB-S146S 146Wh Square Digital Battery

Code: SWI/PB-S146S

The new PB-S series camera batteries from SWIT are compact designed, shorter-than-normal, square shaped V mount batteries.

For purchasing information

Enquire Now

Square shape design for Cine Cameras

The new PB-S series camera batteries from SWIT are compact designed, shorter-than-normal, square shaped V mount batteries.

146Wh /10.1Ah Capacity

The PB-S146S includes 12x high class 18650 battery cells, with a nominal voltage of 14.4V and 146Wh / 10.1Ah high capacity. For a 30W camera, the PB-S146S will run it for approx. 5 hours.

High Load for Cine Cameras

At least 200W / 16A load

The PB-S146S battery provides at least 200W/16A high load even at 1% capacity and can run high-power cameras and on-camera devices together. The high load cells ensure long battery life compared to normal load batteries if there is sustained full load output.

The PB-S146S also features 18A over current protection

2× D-tap, 1× USB

The PB-S146S features 2x D-tap outputs with 10A/120W load, and 1x USB 5V/2A to power on-camera accessories.

Digital Power Info

LCD displays accurate remaining run time

The built-in LCD displays remaining power percentage, working time, low power warning, and battery cycle times. The PB-S146S also supports viewfinder info display on both SONY and RED cameras.

Battery plate V-mount
Nominal voltage 14.4V
Capacity 146Wh, 10.1Ah
Max output In total: 200W
Electrodes: 200W,16A
USB:10W, 5V/2A
D-tap: 120W / 10A
Dimension 121×95×59mm
Net weight 0.878kg
Max charging current 5A
D-TAP socket number 2
USB socket number 1
