SWIT PB-R160S 160Wh Heavy Duty Battery Fast Charge Bundle

Code:

Exclusive to Lemac

$1,620.00
The PB-R160S is a 160Wh V-mount battery, for Cine and ENG cameras, with a newly designed heavy duty housing and shock-proof design. The battery supports high load, fast charging and digital power info display, making it an ideal power solution for field applications.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock

Out of stock - Usually ships in 2-4 weeks

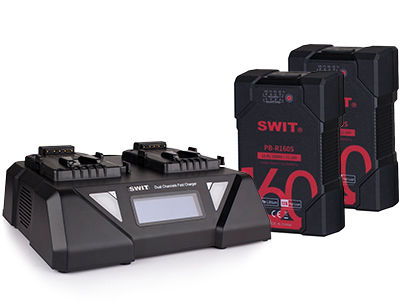

What's In The Box?

  • 2x SWIT PB-R160S Heavy Duty Batteries
  • 1x SWIT S-3812S Fast Charger
  • Heavy Duty Digital Li-ion Battery

    V-mount camera battery

    PB-R160S is a 160Wh V-mount battery, for Cine and ENG cameras, with latest designed dual housing heavy duty structure, drop-off proof. The battery supports high load, fast charging and digital power info display, which is an ideal power solution for field applications.

    160Wh / 11.1Ah Capacity

    The largest capacity for airplane boarding

    Consists of 18pcs high class 18650 battery cells, and reaches 160Wh / 11.1Ah high capacity, which is the largest capacity to board to airplane. Can run approx 6 hours for normal ENG cameras, and approx 2 hours for ARRI ALEXA.

    High Load for Cine Cameras

    Max 150W / 12A constant output

    Normal Li-ion batteries offer 100W/8A output and suitable for most ENG cameras, but the Cine Cameras such as ALEXA require around 85W high draw which is too heavy for the normal Li-ion batteries: the battery life will be reduced if long time full draw powering. Moreover, if there’re monitor, lighting work together, and total power will be above 100W, and the normal batteries cannot draw completely. Using PB-R160S high-load battery, you can get MAX 150W/12A constant power output, which can drive more high power cameras, lightings and other equipments easily, and won’t reduce battery life during long time high power output.

    6A Fast Charging

    Using SWIT S-3812S fast charger

    PB-R160S supports 6A fast charging by SWIT S-3812S fast charger, to save more than 50% charging time. The 160Wh PB-R160S battery can be charged from 0 to 80% after 1.5 hours, and fully charged within 2.5 hours.

    Digital Power Info

    8-LED + SONY&RED viewfinder info

    PB-R160S has the innovative 8-LED power indicators. When free or charging, the LEDs will indicate current capacity percentage, and when battery is discharging, the LEDs will display the remaining running time at the current discharging power, accurate to 15 minutes. Meanwhile, the battery pack adopts intelligent digital info chip that compatible with both SONY and RED camera info system, and can display remaining minutes on camera viewfinder.

    D-tap Socket

    A D-tap DC output socket is equipped on the top side of the battery pack, to power the other on-camera equipments together. The Max output current of D-tap is 10A.

    High quality Lithium cells

    For 20 years, SWIT has been leading brand of broadcast camera batteries. The first reason is the high quality Lithium cells we adopted.  The high quality cells featured long life, durable, safety, and most of all, the cells has very little difference to each other, which ensures the high performance of the whole battery pack. Moreover, the cells we’re using, have a smooth discharging curve by voltage, so that you can judge the remaining running time accordingly. Also when in storage, the self-discharging rates are very little, that extends the battery life effectively.

    Strong Protective Structure

    Dual housing + Rubber cover

    SWIT new generation heavy duty batteries have innovative dual housing structure: the inner cell cage and outer anti-shock housing with rubber covers. The new structure makes the battery quite strong, anti-shock, protects the battery from drop-off accident.

    8-LED Power Indicators

    When battery is discharging: Press “Power Check” button, Upper 4 LEDs display remaining working hours, and Lower 4 LEDs display remaining working minutes, under current output power. When battery is charging: Upper 4 LEDs flashing constantly, indicates the real-time capacity percentage 25%, 50%, 75% and 100%. When battery is free: Press “Power Check” button, Upper 4 LEDs light up, to indicate the remaining capacity percentage 25%, 50%, 75% and 100%.

    Multiple Safety Protection Circuit

    The battery has an MCU to measure and record the real time data, and will cut off power when over-voltage, under-voltage, over-current, high-temperature of low-temperature is detected.

    Cell balance adjustment

    After the batteries are used for a period of time, the cells voltage might get difference, and our specially designed circuit can optimize the imbalanced cells, to prolong the battery life.

    Features

    • 160Wh Heavy Duty Digital Battery Pack
    • 1.5m drop off proof, IP54 water proof
    • 14.4V, 160Wh capacity
    • Max 150W/12A heavy load
    • 6A fast charging support
    • 8-LED digital power indicators
    • SONY/RED viewfinder power info display
    • D-tap power output socket
    • V-mount connection
    • Multiple circuit protections

    Specifications

    Nominal Voltage 14.4V
    Capacity 160Wh/11.1Ah
    Max output power 150W
    Max output current 12A (D-tap port 10A)
    Max charging current 6A fast charging
    Mount Type V-mount
    Operation Temperature 0-40°C
    Net weight Approx 1.08kg
    Dimensions 162×101×53mm
