SWIT PB-M45S 45Wh Pocket V-mount Battery Portable Bundle

Code: BUN/SBB11

Exclusive to Lemac

$615.00
The SWIT PB-M45S battery is a tiny V-mount battery with built-in D-tap and USB and featuring 150W high load.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock

Out of stock - Call for availability

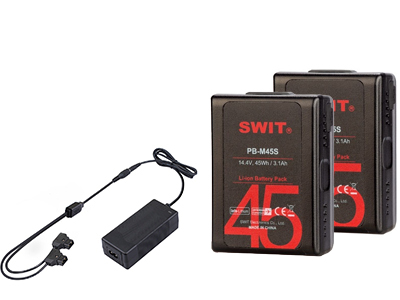

What's In The Box?

  • 2x SWIT PB-M45S 98Wh Batteries
  • 1x SWIT PC-U130B2 Charger
  • The SWIT PB-M45S battery is a tiny V-mount battery with built-in D-tap and USB and featuring 150W high load.

    This battery is specifically designed to be compact, durable and convenient.

    The PB-M45S is very small - only DV battery sized - 45Wh capacity, and without any compromise on the DC sockets!

    Tiny V-mount battery

    Pocket fit size

    V-mount batteries can be too big and heavy for location productions, especially when used with handheld stabilisers, focus puller monitors, portable LED panels, or small cameras.

    The PB-M45S Pocket V-mount battery is a perfect solution! It’s very small - only DV battery sized - 45Wh capacity, and without any compromise on the DC sockets!

    45Wh Plane Friendly

    150W/12A constant high load

    The PB-M45S consists of 4 high class 18650 battery cells, with a nominal voltage of 14.4V and 45Wh / 3.1Ah high capacity. You can take this battery in carry-on luggage to board airplane.

    The constant load is as high as 150W, 12A, making it suitable for high power lightings.

    Built-in D-tap and USB

    The pocket size PB-M45S has D-tap and USB sockets built-in. The D-tap socket share 100W/8A load DC output with the V-mount pins, and support charging input by SWIT PC-U130B2 dual D-tap charger.

    The USB socket outputs 5V/2A for smart phone fast charging.

    5-LED Power Indicator

    Low battery warning

    The PB-M45S has 5-LEDs to indicator remaining power percentage. When remaining power is less than 10%, the last LED will flash automatically as a reminder to change battery.

    Hot-Swap Adaptor

    You can use 2x PB-M45S hot-swapable on cameras, with the SWIT Hot-swap Adaptor KA-M20S, for longer periods of uninterrupted power, equivalent to a standard size V-mount battery.

    Specifications

    Battery plate V-mount
    Nominal voltage 14.4V
    Capacity 45Wh, 3.1Ah
    Max output In total: 150W
    Electrodes: 150W, 12A
    USB:10W, 5V/2A
    D-tap: 100W / 8A
    Dimension 100×74×34mm
    Net weight 0.31kg
    Max charging current 3A
