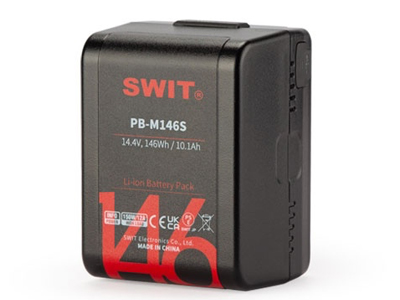

SWIT PB-M146S 146Wh Pocket V-Lock Battery

Code: SWI/PB-M146S
$400.00

As a new member of the PB-M series Pocket V-Lock batteries, the PB-M146S provides a larger capacity of 146Wh to extend run time while maintaining a tiny size for convenient carrying.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when SWIT PB-M146S 146Wh Pocket V-Lock Battery is back in stock.

As a new member of the PB-M series Pocket V-Lock batteries, the PB-M146S provides a larger capacity of 146Wh to extend run time while maintaining a tiny size for convenient carrying.

The PB-M146S has a nominal voltage of 14.4V, a large capacity of 146Wh, and a 5-step LED power indicator. It also features a built-in D-tap DC output and charging input, as well as a USB-A 5V/2A power output. The constant load is 150W, 12A.

Hot-Swap Adapter

You can use 2x PB-M146S hot-swappable batteries on cameras with the Hot-swap Adapter KA-M20S to get one-by-one hot-swap uninterrupted power, equivalent to a standard size V-Lock battery.

50W/3A Fast Charging

The PB-M146S can be charged by all standard V-Lock chargers and D-tap chargers.

Wire-Free Internal Tech

The PB-M146S features innovative "Wire-Free" internal technology, with all the cells, D-tap, USB, and power indicator devices directly soldered onto the PCB without connecting wires. This reduces internal resistance effectively and makes the circuit stable, safe, and reliable.

Specifications
Battery plate V-Lock
Nominal voltage 14.4V
Capacity 146Wh, 10.1Ah
Power output In total: 150W
Electrodes: 150W, 12A
USB: 10W, 5V/2A
D-tap: 100W / 10A
Charging input 16.8V 3A (Max)
Charging Temperature 0-40°C
Discharging Temperature -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)
Dimension 100×74×63.7mm
Net weight Net 0.72kg; With package 0.75kg
