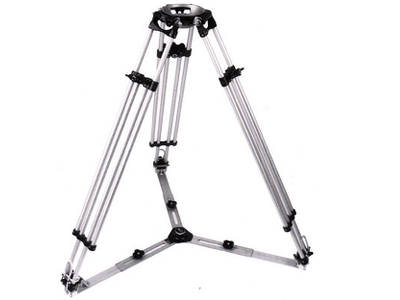

Head fittings
150mm bowl supplied as standard. Mitchell plate or 100mm bowl supplied to order.
Technical Specifications
Castings are LM25 anodised, stove enamelled black texture.
Tubes are ¾” dia x 16swg HE30TF alloy, polished and anodised, with nylon wipers and nylon locking pads.
Stainless Steel spikes to feet, with rubber covers.
Locking levers are anodised and stove enamelled black texture. All steel parts are hardened where necessary, and chrome plated.
Height
With legs spread at 1’6” (45.7cm): closed 3ft’ (91.4cm), fully extended 5’6” (167.6cm).
Weight
14lb (6.5kg).
Spreader
An infinitely adjustable spreader, integral tripod, with a strong elastic clip-down device, which is secured in seconds. Made from high tensile anodised aluminium with large diameter locking hand-wheels to adjust length of spread; steel parts hardened and heavily chromium plated.
Dimensions
centre to foot minimum 1’5” (43cm), maximum 2’1” (64cm).
Weight
4lb 7oz (2kg).
