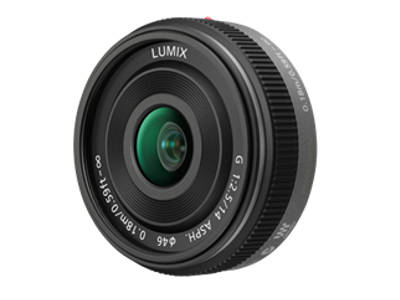

Panasonic Lumix 14mm F2.5 Micro 4/3 Pancake Lens

Code: GEC/H-H014AE-K
The world’s lightest slim interchangeable single focal length lens


Got a question about this product?
Send us a message

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when Panasonic Lumix 14mm F2.5 Micro 4/3 Pancake Lens is back in stock.

Single focal length lens for wide angle shooting

A wide angle of view and outstanding depth of field make this pancake-type wide angle lens a good choice for both snapshots and landscapes.

Rendering high-contrast images across the entire frame and correcting distortion, this super-thin lens is especially ideal for capturing subjects that are primarily linear, such as buildings with a number of straight lines. Its simple lens construction (six elements in five groups, including three glass aspherical lenses) delivers both high performance and an astonishingly compact size.

Aspherical lenses

These lenses prevent spherical and distortion aberrations, so higher magnification can be achieved with fewer lenses. Resulting in smaller size and weight, these lenses feature the high dimensional accuracy of Panasonic’s cutting-edge production technologies, including concave lenses that measure just 0.3mm at their thinnest part.

Lenses manufactured with uncompromising devotion to high image quality

The production process for Lumix G and LEICA DG lenses is conducted in ‘clean rooms’ to rigorous environmental standards. Now acclaimed worldwide, our UA3P Ultra-Accurate 3D Profilometer, with its measurement accuracy of 1/10,000mm, gives objective numerical evaluations and detects flaring, colour coatings and the ‘feel’ of the focus ring.

An original lens-drive motor for high-precision, high-speed contrast AF

Lumix G and Leica DG lenses incorporate a unique ‘stepping motor’ with a screw unit in the motor shaft that moves the focus lens directly, without relay gears or cams. Information transfers from lens to camera faster, making auto focus swift and accurate with reduced drive noise for better movie recording.


  • The world’s lightest* slim interchangeable single focal length lens
  • 28mm wide angle (35mm camera equivalent) and F2.5 brightness
  • Three aspherical lenses for a superb optical performance in a compact size
  • High-speed, silent Contrast AF for both photos and movies with inner focus drive system
  • Multi-coated lens elements minimize ghosts and flare

There is no media for this item.


Lens LUMIX G 14 mm / F2.5 ASPH
Lens Construction 6 Elements in 5 Groups (3 Aspherical Lenses)
Nano Surface Coating -
Mount Micro Four Thirds
Optical Image Stabiliser (OIS) -
Focal Length (mm) f=14
Focal Length - 35mm (mm) f=28
Aperture Type 7 Diaphragm Blades / Circular Aperture Diaphragm
Aperture Range F2.5
Minimum Aperture F22
Closest Focusing Distance (m) 0.18
Maximum Magnification Approx. 0.1x (35 mm camera equivalent: 0.2x)
Diagonal Angle of View - Wide / Tele 75°
Projection System -
Stereo Base (mm) -
Filter Size (mm) φ46
Maximum Diameter (mm) φ55.5


Weight (g) Approx. 55
Overall Length (mm) Approx. 20.5 (from the tip of the lens to the base side of the lens mount)


Standard Lens Front Cap
Lens Rear Cap
Lens Storage Bag
Optional -
