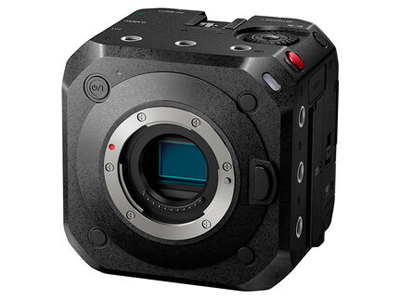

Panasonic Lumix DC-BGH1 (Body Only)

Code:

The DC-BGH1 is the ultimate jack-of-all-trades for production video professionals. Its 10.2MP sensor with Dual Native ISO delivers C4K 60p/50p 10-bit video and 13-stops of dynamic range with built-in V-Log L. Weighing just 545g, the DC-BGH1 offers a compact and lightweight body design with industry standard mounts and connectivity.

For purchasing information

Enquire Now

Overview
Specifications

Features

Unbox Your Creativity

High-performance livestream camera is small and light, with expandability and multi-camera control, perfect for livestreamers, broadcasters, and cinema.

Box-Style Cinema & Live Camera

Dual Native ISO, C4K 60p 10-bit recording, 13 stops of dynamic range with V-LogL all in an easy to deploy box-style camera for increased shooting flexibility.

Superior Low Light Performance

High-sensitive 10.2MP Live MOS sensor with Dual Native ISO technology for outstanding low-light video performance.

A LUMIX First: Simultaneous SDI/HDMI Output

You can simultaneously monitor SDI output, record HDMI output externally, and control the camera remotely via USB or LAN tethering for professional cinematic quality.

A LUMIX First: Ethernet / PoE+ Compatible Camera

Simply by connecting the BGH1 via Ethernet cable, your camera will be powered over Ethernet* and allow multiple-camera remote control through the LUMIX Tether software.

_{* IEEE802.3at compliant.}

Remote Control Multiple Cameras with LUMIX Tether

Multiple camera recording enabled by Ethernet cable connection on LUMIX Tether software* enables more efficient video production.

_{*LUMIX Tether for Multicam software will be released at the product shipment of BGH1.}

Front Tally Lamp / Rear Tally Lamp

Thanks to the clean lines of the body design, the tally lamps can be monitored from the front, top, side, or back, a welcome convenience on any shoot.

Stable Connectivity with Simultaneous SDI/HDMI Output

Supports extended cable runs and external monitoring. Supports simultaneous C4K/4K 60p 4:2:0 10-bit internal recording and C4K/4K 60p 4:2:2 10-bit HDMI live output external recording.

3 Power Source Options

Three power source options are offered. 1. AC Adaptor (12V, 3A) (bundled) / 2. Li-ion Battery Pack (7.28V) (sold separately) / 3. PoE+ (IEEE802.3at compliant) (sold separately).

Image Sensor Size	19 x 13 mm (4/3")
Sensor Type	MOS
Sensor Resolution	Actual: 10.2 MP
Color Filter	Bayer
Shutter Type	Mechanical Shutter
ISO	160 to 51,200 (Native) 80 to 204,800 (Expanded)
Advertised Dynamic Range	13 Stops
Signal-to-Noise Ratio	9.7 dB
Lens Mount	Micro Four Thirds
Lens Communication	Yes
Interchangeable Lens Mount	Yes
Built-In Microphone Type	Stereo
Recording Media	2 x SD Card Slots
Variable Frame Rates	DCI 4K: 1 to 60 fps 1080p: 1 to 240 fps
Recording Modes	AVC-Intra/AVC-LongG/H.264 Long GOP/H.265/MOV 4:2:0 10-Bit: 4096 x 2160p at 23.98/24/25/29.97/50/59.94 fps (100 to 400 Mb/s) 3840 x 2160p at 23.98/24/25/29.97/50/59.94 fps (100 to 200 Mb/s) 3328 x 2496p at 23.98/24/25/29.97/50/59.94 fps (100 to 400 Mb/s) 1920 x 1080p at 23.98/24/25/29.97/50/59.94 fps (100 to 200 Mb/s) AVC-Intra/AVC-LongG/H.264 Long GOP/H.265/MOV 4:2:0 8-Bit: 4096 x 2160p at 23.98/24/25/29.97/50/59.94 fps (100 to 150 Mb/s) 3840 x 2160p at 23.98/24/25/29.97/50/59.94 fps (100 to 150 Mb/s) 3328 x 2496p at 23.98/24/25/29.97/50/59.94 fps (100 to 150 Mb/s) 1920 x 1080p at 23.98/24/25/29.97/50/59.94 fps (100 Mb/s) AVC-Intra/AVC-LongG/H.264 Long GOP/H.265/MP4 4:2:0 10-Bit: 3840 x 2160p at 23.98/25/29.97/50/59.94 fps (72 to 100 Mb/s) AVC-Intra/AVC-LongG/H.264/H.264 Long GOP/H.265/MP4 4:2:0 8-Bit: 3840 x 2160p at 23.98/25/29.97 fps (100 Mb/s) 1920 x 1080p at 23.98/25/29.97/50/59.94 fps (24 to 28 Mb/s)
Gamma Curve	Panasonic V-Gamut, Panasonic V-Log
Audio Recording	MOV: 24-Bit 48 kHz LPCM Audio MOV: 24-Bit 96 kHz LPCM Audio MP4: 24-Bit 48 kHz LPCM Audio MP4: 24-Bit 96 kHz LPCM Audio
Video Output	4:2:2 10-Bit via SDI/BNC: 1920 x 1080p at 60 fps 4:2:2 10-Bit via HDMI: 4096 x 2160p at 60 fps
Video Connectors	1 x BNC (3G-SDI) Output 1 x HDMI (HDMI 2.0) Output
Audio Connectors	1 x 1/8" / 3.5 mm Stereo Mic Level Input 1 x 1/8" / 3.5 mm Stereo Headphone Output
Other I/O	1 x USB Type-C Camera Interface, USB 3.1 Gen 1 Data, Control, Video Input 1 x BNC Timecode Data Input/Output 1 x BNC Genlock Data Input/Output 1 x RJ45 LAN Control, Monitor, Video Input/Output 1 x 2.5 mm LANC Control Input
Wireless Interfaces	2.4 GHz Wi-Fi, Bluetooth Video Output, Control
EVF	Optional, Not Included
Battery Type	Panasonic AG-VBR Series
Power Connectors	1 x Weipu SF610/S2 (12 VDC) Input
PoE Support	PoE+ 802.3at
Tripod Mounting Thread	1/4"-20 Female (Bottom)
Material of Construction	Aluminium
Dimensions	3.7 x 3.7 x 3.1" / 9.3 x 9.3 x 7.8 cm (Without Protrusions)
Weight	1.2 lb / 545 g
