| Power Requirements | 12 V DC (10.8 V to 13.2 V) (Supplied AC adapter) |
|---|
| PoE+ | IEEE802.3at compliant : DC42 to 57 V (Camera Input)(Software authentication (LLDP) is supported) |
|---|
| Current Consumption | 1.8 A (Supplied AC adaptor), 0.6 A (PoE+ power supply) |
|---|
| Ambient Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
|---|
| Ambient Operating Humidity | 20 ％ to 90 ％ (no condensation) |
|---|
| Storage Temperature | -20 °C to 50 °C (-4 °F to 122 °F) |
|---|
| Mass | Approx. 1.8 kg (3.97 lbs) (excluding ceiling mounting bracket)Approx. 2.05 kg (4.51 lbs) (including ceiling mounting bracket) |
|---|
| Dimensions (W x H x D) (mm) | 160.0 mm x 192.1 mm x 166.0 mm (Excluding protrusions, cable cover, ceiling mounting bracket) |
|---|
| Dimensions (W x H x D) (inch) | 6.299 inches x 7.563 inches x 6.535 inches (Excluding protrusions, cable cover, ceiling mounting bracket) |
|---|

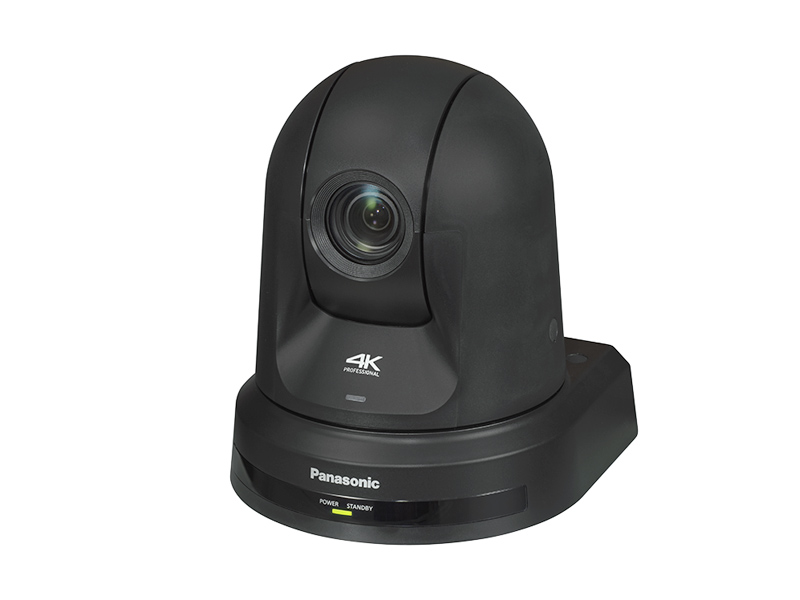

| Finish | AW-UE30W: WhiteAW-UE30K: Black |
|---|
| Controller Supported | AW-RP150GJ, AW-RP60GJ, AW-RM50AG |
|---|
| Camera Unit | |
|---|
| Imaging Sensors | 1/2.5-type 4K MOS x1 |
|---|
| Lens | Motorized Optical 20x zoom, F1.8 to F3.9 [f=4.12 mm (5/32 inches) to 82.4 mm (3‑1/4 inches); 35 mm (1‑3/8 inches) equivalent: 25.0 mm (31/32 inches) to 500.0 mm (19‑11/16 inches)] |
|---|
| Zoom | • Optical zoom: 20x • i.Zoom UHD 23x, FHD 30x • Digital extender zoom: 1.4 x , 2 x |
|---|
| Conversion Lens | Not supported |
|---|
| Angle of View Range | Horizontal angle of view: 74.1° (wide) to 4.0° (tele) Vertical angle of view: 46.0° (wide) to 2.2° (tele) Diagonal angle of view: 81.8° (wide) to 4.5° (tele) |
|---|
| Optical Filter | |
|---|
| Focus | Switching between auto and manual |
|---|
| Focus Distance | Entire zooming range: 1200 mm (3.9 ft)Wide end: 100 mm (0.33 ft) |
|---|
| Color Separation Optical System | 1MOS |
|---|
| Minimum Illumination | 3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation) |
|---|
| Horizontal Resolution | UHD: 1,500 Typ (Center area)FHD: 1,000 Typ (Center area) |
|---|
| Gain Selection | Auto, 0 dB to 36 dB*1 (Super Gain function equipped : 37 dB to 42 dB) |
|---|
| Frame Mix | Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB*2 |
|---|
| Electronic Shutter Speed | |
|---|
| Electronic Shutter Speed | 59.94p/59.94i | 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
|---|
| Electronic Shutter Speed | 29.97p | 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
|---|
| Electronic Shutter Speed | 50p/50i | 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
|---|
| Electronic Shutter Speed | 25p | 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
|---|
| Syncro Scan | |
|---|
| Synchro Scan | 59.94p/59.94i | 60.0 Hz to 7200 Hz |
|---|
| Synchro Scan | 23.98p/24p | 24.0 Hz to 7200 Hz |
|---|
| Synchro Scan | 50p/50i | 50.0 Hz to 7200 Hz |
|---|
| Synchro Scan | 25p | 25.0 Hz to 7200 Hz |
|---|
| Gamma | HD / Normal / Cinema1 / Cinema2 / Still Like |
|---|
| White Balance | • ATW : 3200 K, 5600 K (ATW Speed 3-stage variables.) • AWB : AWB-A / AWB-B • VAR (selectable between 2000 K and 15000 K by designating a value) |
|---|
| Chroma Amount Variability | OFF, -99 ％ to 99 % |
|---|
| Scene File | |
|---|
| Output Format | |
|---|
| Output Format | HDMI | 4K | 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Just), 2160/23.98p (Native) |
|---|
| Output Format | HDMI | HD | 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native), 23.98p (over59.94i), 1080/24p (Just), 23.98p (Native), 720/59.94p, 50p |
|---|
| Input | |
|---|
| Input Connector | DC 12 V IN |
|---|
| Output | |
|---|
| Video Output | |
|---|
| Video Output | HDMI | HDMI 1.4 connector, 4:2:2/10bit • HDCP is not supported. • Viera Link is not supported. |
|---|
| Input/Output | |
|---|
| Input/Output Connector | |
|---|
| Input/Output Connector | LAN | LAN terminal for IP control (RJ-45) |
|---|
| Input/Output Connector | RS-422 | CONTROL IN RS422A (RJ-45) |
|---|
| MIC/Line Input | AAC compatibility (compatible with IP only) Φ3.5 mm stereo mini jack • During MIC input Input level: -40 dBV (0 dB=1 V/Pa, 1 kHz) Supply voltage: 2.5 V±0.5 V (plug-in power compatible) • Input impedance: Approx. 2 kΩ (when plug-in power is turned ON) Approx. 20 kΩ (when plug-in power is turned OFF)" • During LINE input Input level: -10 dBV Input impedance: Approx. 3 kΩ • Input volume variable range: -36 dB to 12 dB (3 dB step) • Embedded audio output level: -12 dBFS • Sampling frequency: 48 kHz |
|---|
| Pan Tilt Head Unit | |
|---|
| Camera/Pan-Tilt Head Control | |
|---|
| IP Connecting Cable | • If you have a PoE+ ethernet hub LAN cable*3 (category 5e or above, straight cable) Max 100 m (328 ft) • If you don't have a PoE+ ethernet hub LAN cable*3 (category 5e or above, straight cable) Max 100 m (328 ft) |
|---|
| AW Protocol Connecting Cable | • LAN cable*3 (category 5e or above, straight cable) Max 1000 m (3280 ft) |
|---|
| Installation Method | Stand-alone (Desktop) or suspended (Hanging)*4 |
|---|
| Pan/Tilt Operation Speed | Speed range: 0.08°/s to 60°/s (Normal mode)*5 • 3 speed modes installed Normal:60°/s, Fast1:90°/s, Fast2:180°/s |
|---|
| Panning Range | ±175° |
|---|
| Tilting Range | -30°to 90°*6 |
|---|
| Quietness | NC25 or less |
|---|
| Supported operating systems and web browsers | *7 |
|---|
| Windows | Windows 10 Windows® Internet Explorer® 11 (32 bit / 64 bit) Microsoft Edge Google Chrome |
|---|
| Mac | Mac OS v11.0.1 / Safari 14.01 Mac OS v11.0.1 / Google Chrome Mac OS v10.15 / Google Chrome Mac OS v10.14 / Google Chrome |
|---|
| iPhone / iPad | iOS Safari iPadOS |
|---|
| Android | Android OS Google Chrome |
|---|
| IP Streaming | |
|---|
| Image Streaming Mode | JPEG (MJPEG), H.264, H.265, |
|---|
| Image Resolution | 1920x1080, 1280x720, 640x360, 320x180 |
|---|
| Image Transmission setting (JPEG) | Frame rate: Maximum 30fpsImage quality (Fine / Normal) |
|---|
| Image Transmission Setting (H.264) | Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port Transmission Priority: Constant bit rate, Frame rate, Best effort Frame Rate: [60 Hz] 5fps / 15fps / 30fps / 60fps, [50 Hz] 5fps / 12.5fps / 25fps / 50fps Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps /12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps |
|---|
| Image Transmission Setting (H.265) | Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port Transmission Priority: Constant bit rate, Frame rate, Best effort Frame Rate: [60 Hz] 30fps / 60fps, [50 Hz] 25fps / 50fps Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps /12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps |
|---|
| Audio Compression Type | AAC-LC, 48 kHz / 16 bit / 2ch |
|---|
| Supported Protocol | |
|---|
| Supported protocol | IPv6 | TCP/IP, UDP/IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, RTMP, SRT |
|---|
| Supported protocol | IPv4 | TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT |
|---|
| New Functions | |
|---|
| F-Number Display | Displayed on the AW-RP150GJ and AW-RP60GJ sides |
|---|
| Menu Display on IP Video | Supported*9 |
|---|
| Power LED | ON/OFF control |
|---|
| Tripod Screw Penetration Measures | Possible |
|---|
| Pan/Tilt Mechanical Method | New Direct Drive System |
|---|
| Image Stabilization | OIS 2-axis MENU switching: Select between Off/O.I.S. |
|---|
| Privacy Mode | The lens surface faces backward when standing by (ON/OFF) * Default is OFF |
|---|
| Other Functions | |
|---|
| Tally LED display color | red / green |
|---|
| Note | *1:Can be set in 1 dB step increments. *2:Cannot be set when the format is 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/23.98p (59.94i), 1080/29.97PsF, 1080/23.98PsF, 1080/25p, 1080/25PsF. *3:STP (Shielded Twisted Pair) is recommended. *4:To ensure safety, the unit must be secured using the mount bracket supplied. *5:Note that the operating noise may be loud in high speed. If the operating noise is disturbing, use the Normal mode. *6:The main unit may appear in the video depending on the pan/tilt position. *7:Supported OS indicated are for browsers current as of September 2021. See "Service and Support / PASS” for the latest information on browser support. *8:NDI® is a registered trademark of Vizrt NDI AB in the United States and other countries. *9:Non-synchronous with SDI-OUT |
|---|
