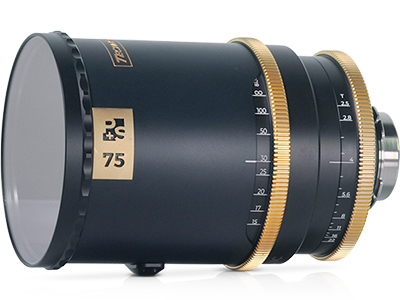

P+S Technik Technovision 75mm 1.5x Anamorphic T2.5 Lens

Code:

Cinematographers who seek the classic look of the iconic TECHNOVISION lenses from the 1970s can now achieve that look with the new TECHNOVISION 1.5X series consisting of five focal lengths 40, 50, 75, 100 and 135mm.

For purchasing information

Enquire Now

Cinematographers who seek the classic look of the iconic TECHNOVISION lenses from the 1970s can now achieve that look with the new TECHNOVISION 1.5X series consisting of five focal lengths 40, 50, 75, 100 and 135mm.

The squeeze factor 1.5X offers the best flexible solution to use digital and scalable sensors from S35 to Full Format (36 x 24mm) – and from the 50mm on up to the 65/70 scope format.

The anamorphic elements are placed in the front to achieve the unique anamorphic bokeh. High contrast and deliberate flares define the lens character.

Key Features

  • Front Anamorphic lenses with 1.5X factor, universal on Large format from 16:9 to 1:2.40
  • TECHNOVISION “Emulsion”, rich in contrast but including chromatic aberrations and flares
  • Designed for Full Format, PL and LPL mount
  • Aperture from T2.2 to T2.5
  • Innovative combination of single and multilayer coating

Specifications

Focal Length T-Stop CFD (Closest Focusing Distance) Weight
m ft kg lbs
40mm T 2.2 0.7 2'3" 2,4 5,3
50mm T 2.2 0.7 2'3" 2,6 5,6
75mm T 2.5 1 3'3" 4 8,8
100mm T 2.5 1 3'3" 4 8,8
135mm T 2.5 1 3'3" 5,5 12
Focal length

75mm

Anamorphic Squeeze Factor 1.5X
Lens Mount

PL (standard)
LPL (additional)
IMS Interchangeable Mount System

T-Stop 2.5
Angular Rotation of Iris Scale 90°
Angular Rotation to Focus Endstop 350°
CFD (Closest Focusing Distance) 1m / 3'3"

Image Diameter

ø 43,3 mm
Iris Drive Gear Mod. 0.8
Focus Drive Gear Mod. 0.8
Front Diameter 136mm
Weight 4000g
Dimensions 262×136×136mm
