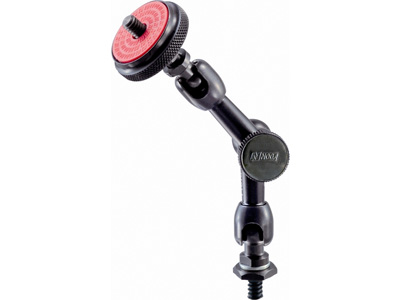

Noga LC Holder Arm: 1/4 inch screw -1/4 inch screw (76mm Long)

Code: NOG/LC9014

$155.00

The ever reliable Noga Arm can be used to mount monitors, on-board lights or other accessories onto an enormous range of video or digital cinema cameras, via a 1/4" screw.

Add to Cart

Found this item cheaper elsewhere? Let us know

ENQUIRE NOW

Low Stock

Limited Stock - Call for availability

The ever reliable Noga Arm can be used to mount monitors, on-board lights or other accessories onto an enormous range of video or digital cinema cameras, via a 1/4" screw.

Max. Load: 2kg/4.4lb
Weight: 0.13kg/0.286lb
Material: Aluminum
Total Length: 76mm/3"
Top Length/L2: 38mm/1.5"
Bottom Length/L1: 38mm/1.5"
Top Thread: 1/4" - 20 Ext. + Nut
Bottom Thread: 1/4" - 20 Ext.

Noga HoldIt Comparison Chart

	Max. load		Bottom length/L1		Arm L1	Top length/L2		Arm L2	Total length L1+L2
Order no.	lb	kg	mm	inch	Bottom external	mm	inch	Top external	mm	inch
LC9014	4.4	2	38	1.5	1/4”-20 Ext.	38	1.5	1/4”-20 + Nut	76	3
NF9014	6.6	3	56	2.2	1/4”-20 Ext.	56	2.2	1/4”-20 + Nut	112	4.4
NF9038	6.6	3	56	2.2	3/8”-16 Ext.	56	2.2	1/4”-20 + Nut	112	4.4
DG9014	8.8	4	110	4.33	1/4”-20 Ext.	110	4.33	1/4”-20 + Nut	220	8.66
DG9038	8.8	4	110	4.33	3/8”-16 Ext.	110	4.33	1/4”-20 + Nut	220	8.66
MG9038	11	5	133	5.25	3/8”-16 Ext.	133	5.25	1/4”-20 + Nut	266	10.5
GR9038	13.2	6	279	11.02	3/8”-16 Ext.	279	11.02	1/4”-20 + Nut	558	22.04

Click here for PDF

Max. Load	2kg / 4.4lb
Weight	0.13kg / 0.286lb
Material	Aluminum
Bottom Length/L1	38mm / 1.5"
Top Length/L2	38mm / 1.5"
Total Length L1+L2	76mm / 3"
Bottom Thread	1/4" - 20 Ext.
Top Thread	1/4" - 20 Ext. + Nut
