Vizrt Flex Control Panel

Code: BLO/NT-FCP
$16,370.00

he Vizrt Flex is the best way to harness the power of TriCasters anywhere - operators can take direct control of PTZ devices, audio connections, audio and video mixing, and talkback – all connected with NDI®.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when Vizrt Flex Control Panel is back in stock.

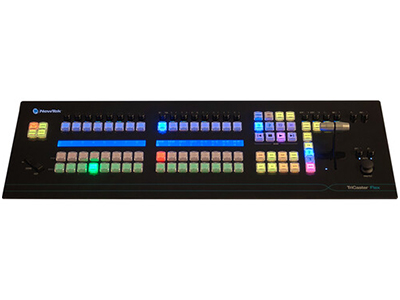

Use this Vizrt Flex Control Panel in tandem with your preexisting TriCaster system to mix audio and video, control PTZ cameras, expand your audio inputs and outputs, incorporate NDI connectivity, and facilitate talkback communication in your studio space with a single panel. Tactile manual control buttons, a T-bar, and display LCD screens for labelling offer an intuitive control experience.

Two pairs of 1/4" stereo audio inputs and two pairs of 1/4" stereo audio outputs on the back of the panel expand your audio ecosystem. An RJ45 Ethernet port facilitates NDI connection. Talkback and microphone inputs and a headphone output port allow you to communicate between your camera operators and talent.

Key Features

  • Intuitive layout mapped to the Video Mix Engine user interface
  • IP-based connectivity with support for multi-engine control over the network
  • Responsive multi-bus operation with independently assignable control stripes
  • Practical lighting, variable T-bar illumination, and dynamic LCD label displays
  • Precision controls for expert handing of real-time video operations
  • Controls

  • 16 direct crosspoints with bank and stripe functions
  • Row lighting color follows delegated UI
  • 2 x 40 character, two row LCD screens
  • PTZ control delegation and zoom rocker
  • Mini joystick for pan/tilt control, focus/iris control with auto function
  • 12 fader controls for audio inputs/outputs, talkback, DDR 1-2, sound, record 1-4
  • Four fader controls for stream 1 and 2, aux and master out, mic and headphone level
  • Media players and macro control
  • Stream, capture, and reply
  • Transitions and T-bar
  • Specifications
    Compatibility Vizrt TriCaster 2 Elite / TriCaster 1 Pro / TriCaster TC1 / TriCaster 410 Plus / TriCaster Mini 4K / TriCaster Mini X
    USB I/O 2 x USB-A 2.0 Female Input
    Video I/O
    1 x RJ45 Input/Output
    Audio I/O 2 x 1/4" Mic Input
    1 x 1/4" Headphone Output
    4 x 1/4" Line Input
    4 x 1/4" Line Input
    Wi-Fi Yes
    Power Source PoE
