Miller

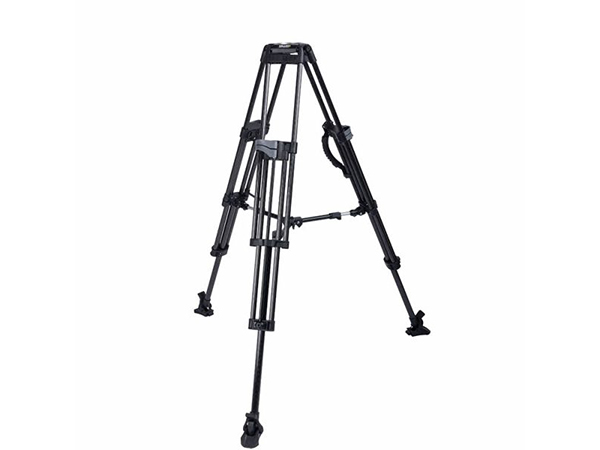

Miller 75 Sprinter II 2 Stage Carbon Fibre Legs (mid spreader)

Item Code: MIL/1620

The 75 Sprinter II 2-stage, carbon fibre, mid level spreader tripod (1620) employs the patented Miller design that enables the leg stages to be adjusted independently via two leg locks conveniently located high above the ground thus eliminating the need for the operator to bend down.
Out of stock - Usually ships in 3-5 days

RRP: 1120.0000   Save:

  • Qty:
  • Price:
    $920.00
    inc. GST

Found this item cheaper elsewhere? Let us know

The 1620 75 Sprinter II 2-stage, carbon fibre, mid level spreader tripod employs the patented Miller design that enables the leg stages to be adjusted independently via two leg locks conveniently located high above the ground thus eliminating the need for the operator to bend down.

The 75 Sprinter II dual action leg lock system is designed for operators who require speed and convenience of setup without compromise. By placing independent leg lock levers adjacent to each other, both the upper and lower stages they can be operated in unison or independently from one single upper leg location.

The unique intertwined layered construction method of the carbon/basalt fibre gives the tripod tubes incredible stiffness to the leg assembly.

The leg assemblies are integrated with the 75mm die-cast alloy bowl with precision resulting in a highly rigid tripod no matter what height you choose.

Features

  • Integrated 75mm bowl.
  • High speed independent 2-stage dual leg locks.
  • Lightweight carbon fibre tubing.
  • In-line carry handle.
  • Suited for mid-level spreader.
  • Integrated stainless steel spikes.
  • Stay flat rubber feet (optional).
  • Integrated transport clips.
  • 3 year warranty.

Specifications

Maximum Payload Capacity 30kg (66lbs)
Weight 3.2kg (7.0lbs)
Height Range 600-1530mm (23.6-60.4")
Transport Length 700mm (27.6”)
Mounting Base Ø75mm (2.9") ball levelling
Leg Extension 2-stage
Lock Type HS dual action
Leg Material Carbon fibre
