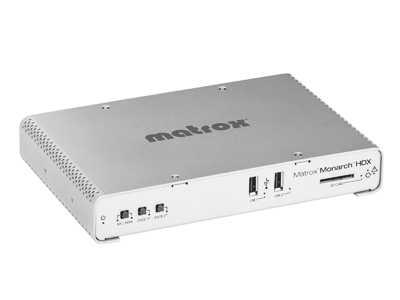

Matrox Monarch HDX Dual-Channel H.264 Encoder

Code: NMA/MHDXI*

NO LONGER AVAILABLE

Overview
Specifications

Dual-Channel H.264 Encoder for Broadcast Streaming and Recording

The Matrox Monarch HDX is a simple and versatile video encoding appliance specifically designed for broadcasters and webcasters who need a flexible solution that is powerful enough to take on today’s demanding webcasting and recoding workflows. Monarch HDX offers 3G-SDI and HDMI inputs with frame-synchronization to correct any discontinuity at the input, and two independent H.264 encoders that can be assigned to individual tasks. Webcasting to YouTube and Facebook Live is made easy through its simplified set up for these popular platforms. All that’s needed is to pair the device once with these accounts and it’s automatically retained for subsequent streams.

Powerful, High Quality H.264 Encoding Engine

The Monarch HDX can share 30 Mb/s of encoding capacity across the two channels. Each channel benefits from a powerful scaling, de-interlacing, and noise reduction engine to ensure only pristine images are sent to be encoded.

Simultaneous Streaming and Recording

The quality of your VOD downloads need never be dictated by the available upload bandwidth. Monarch HDX dual encoders can broadcast a live webstream at one bitrate while simultaneously recording mastering quality H.264 files for immediate availability, such as post event VOD or editing with your NLE of choice.

Dual-Channel Streaming

When used as a webcasting encoder, the Monarch HDX generates an H.264-encoded stream compliant with RTSP or RTMP protocols. You can assign each channel separately to deliver what you need, where you need. Each channel can stream up to 10Mb/s, allowing you to simultaneously stream to two destinations or set the device for up to 20Mb/s streaming quality for a single encoding destination.

Easily Webcast to Your Audience

Monarch HDX can provide live content to CDNs such as YouTube, Facebook Live, and Ustream; media servers such as Adobe Flash and Wowza; or directly to a computer or device found on a LAN. The device is easily configured and paired for YouTube and Facebook accounts with a few short steps. As a certified “Works with Wowza” encoder it allows users to benefit from enhanced integration with the Wowza™ streaming engine via XML files or Wowza tokens. Additionally, Monarch HDX supports XML files generated for use with Flash Live Media Encoder.

Dual-Channel Recording

Monarch HDX provides a huge amount of flexibility as an H.264 video recorder. Content is captured as either MOV or MP4 files to ensure that recordings can be played by the viewer’s choice of application. Each recording channel can be stored independently to a local SD card or USB drive, or remotely on a network-mapped drive so that files are immediately available to anyone on the network. Recordings can also be encoded at different bitrates should there be a need to deliver content to devices with varying decode or bandwidth capacities.

Secure Back-Up with Disaster Recovery

By targeting local and remote storage simultaneously, Monarch HDX ensures that no action will be lost should the network go down. Furthermore, it provides users with the ability to create split files while recording; particularly useful when recording for extended periods of time. The user can set a specific file segment length and Monarch HDX will automatically stop recording in one file and start a new file once the elapsed time is reached, without losing a single frame. The split file feature also ensures the majority of content will be preserved if disaster hits such as a power failure. All files created up to that moment will be saved and uncorrupted.

Matrox File Consolidator Application

Matrox provides a free Java-based utility that allows users to consolidate a sequence of MP4 or MOV files recorded with the “Split File” feature enabled. The application does not transcode but simply rewraps the video data, accelerating the consolidating process. The resulting file will have the same quality as the original and playback seamlessly, even across the file boundaries.

Selectable HDMI and SDI Inputs and Simultaneous Outputs

Monarch HDX H.264 video recorder can accept signals from HDMI or SDI sources. The input is selected using the web based UI, Matrox Command Center, or directly on the unit itself, allowing for a wide range of connectivity to devices such as cameras, switchers or routers. Additionally, both inputs are complemented by internal frame synchronizers to ensure uninterrupted streaming and recording operations, regardless of the disturbance on the input. The audio is also selectable between the two channels of the embedded video signal or the analog stereo input. Audio may be dynamically muted/unmuted without affecting the video encoding operation.

Regardless of input selection, SDI, HDMI video and embedded and analog audio outputs are live. For SDI workflows, the Monarch HDX recorder has an extremely low pass-through latency with a built-in power-loss relay which, in case of power loss, will route the SDI input directly to the SDI output, ensuring signal path integrity and fail safe design options.

Closed Captioning Support

Ideal for broadcasters who require the integration of closed captioning while streaming and/or recording. Monarch HDX retrieves closed captioning data from the SDI VANC or line 21, then embeds the data within the H.264 essence as CEA-608. Caption-enhanced H.264 media can be streamed to video hosting platforms including YouTube and Ustream, media servers such as Wowza™, or a variety of content delivery networks (CDNs). MOV/MP4 files recorded with Monarch HDX preserves captions and can be included in VOD or archiving workflows.

Profiles and Presets

Monarch HDX ships with a number of typical streaming and recording presets that define all the encoding parameters including resolution and bitrate. Whether preset or custom parameters are used, they only need to be entered once and saved as a unique profile. A profile not only contains encoding parameters but also destination information detailing where the encoded video is being sent. Multiple profiles can be saved if the device is used in different environments. Each profile can be loaded instantly without having to re-enter data.

Control from Anywhere

Matrox Monarch HDX can be controlled and configured via the Monarch HDX Command Center using any device on the network that supports a standard web browsing application such as a computer, smart phone or tablet. Designed for operator ease-of-use, master controls provide one-click operation to start streaming, recording or both from anywhere within the user interface.

The device also provides convenient controls directly on the unit itself to stop/start recording or streaming, and an additional button to assign the input.

Matrox Utils Application

The Matrox Utils application allows operators to remotely scan and find all Monarch HDX’s present on their network. The Utils application will also scan the attached Monarch HDX and notify the operator if the unit is up to date with its installed firmware version and will also update the device automatically to ensure that it has the latest software release installed. The Matrox Utils application can also be used to reboot Monarch HDX devices present on the network.

H.264 Preview Stream

Monarch HDX H.264 encoder provides a very useful low bitrate preview stream of the input directly in the Command Center UI. This same preview can be viewed using software players such as VLC or on third-party devices, such as Crestron control panels. This stream is available independently of the two encoder channels allowing you to check your video signal before your webcast goes live.

Integrate Matrox Monarch HDX into Your Own Application or Environment

Broadcasters, network or cloud-based video management platform developers, A/V integrators and value-added resellers can use Monarch HDX Dev Tools, which include automatic configuration tools and the Monarch HDX Control API, to provide a unified, consistent and branded user experience. Individual users need not interact with the Monarch HDX Command Center web UI, which can simplify enterprise-level and centrally administered deployments.

Automatic configuration tools can be used to set all Monarch HDX encoding and destination settings by simply loading a properly formatted configuration file. For example, specialized CDNs and video platform providers who wish to offer a branded plug-and-play user experience can use the automatic configuration tools to give their customers a very simple installation procedure. The customer only needs to insert a USB key containing the customized automatic configuration file, boot the new Monarch HDX and the device will be ready to stream at exactly the right settings. Similarly, IT administrators in broadcast, corporate and education environments with deployments of multiple Monarch HDX units on a network can use the tools to manage all of the units from a single application or portal. This can be done automatically by having each Monarch HDX access a defined webpage for configuration settings at boot up. Alternatively, the task of fetching configuration settings can be triggered manually from the Monarch HDX Command Center.

Monarch HDX Control API is an HTTP-based API that lets system integrators create their own control software to start, to stop, to set streaming bitrates and destinations, and to get the status of a Monarch HDX device. The Monarch HDX Command Center or the automatic configuration tools are used to initially configure devices with complete streaming and recording parameters. Once set up, units can be controlled using the custom application, on-device buttons only or the Command Center.

Integrate with Crestron or ROSS DashBoard

The Monarch HDX Control API is an ideal way to integrate Monarch HDX functionality into an existing broadcast facility, classroom, boardroom or other space equipped with a Crestron control system. Broadcasters who use ROSS equipment can take advantage of our ROSS DashBoard network control and monitoring integration. Monarch HDX registered users are invited to download a sample SIMPL module written to run on Crestron 2-Series® and 3-Series® Room Media Controllers or our ROSS DashBoard module for use with ROSS DashBoard Control Systems.

Robust and Practical Design

Powerful and robust, Monarch HDX offers simple, one touch stream and record push buttons, input selection, and a locking power connector. Monarch HDX's HDMI or SDI outputs makes it easy to monitor what you are streaming and recording, regardless of signal source. All eight channels of embedded audio can be passed from any input to any output. When embedded audio is selected, all eighth channels are passed from input to output. When Analog audio is selected, it is both looped out as well as embedded in video outputs. Its design allows Monarch HDX to be just as easily located on a desktop as in a rack—up to two units can fit in a single 1RU tray. The storage and button controls are conveniently located on the front of the unit while the power and I/O ports are found at the back. Finally, the Monarch HDX also features a wide input voltage range of 9 to 24 volts. It can be powered using the Matrox supplied power supply or DC sources such as standard field batteries.

Matrox Monarch HDX Technical Specifications

Inputs and Outputs
Supported HDMI Video Input	Progressive 1920x1080 @ 60/59.94/50/30/29.97/25/24/23.98 Frames per second 1280x720 @ 60/59.94/50 Frames per second Interlaced 1920x1080i 29.97/25 Frames per second
HDMI Video Output	Preview output of video input signal. Preview output is available when source is SDI or HDMI. Note that when input is an SD SDI resolution, the HDMI preview output will show video windowboxed on an HD output.
Supported SDI Video Input	Progressive 1920x1080 @ 60/59.94/50/30/29.97/25/24/23.98 Frames per second 1280x720 @ 60/59.94/50 Frames per second Interlaced 1920x1080i @ 29.97/25 Frames per second 720x486i @ 29.97 Frames per second 720x576i @ 25 Frames per second Compliant with SMPTE 259M/292M/424M (Level A) / 425M Closed Captioning embedded in VANC of SD or HD SDI signals per SMPTE 334-1 or Captions found in Line 21 of SD signals per EIA-608 are embedded in the essence of H.264 as SEI NAL Units (CEA-608) as per SCTE 128-1 specification
SDI Video Output	0 frame latency passthrough of Input signal. Output is a clean distribution of SDI incoming signal. Hardware bypass relay present in SDI signal path is "closed" on power failure.
Audio Input	Processes the first two channels of audio embedded in HDMI or SDI input signals. Unbalanced analog stereo input via 1/8” (3.5mm) jack. Line Level
Audio Output	Passthrough of 8 channel of embedded audio channels in HDMI and SDI signals. Unbalanced analog stereo output via 1/8” (3.5mm) jack—passthrough of input. Line Level Note that all outputs are active regardless of audio and video input selection.
Extra features	Video Input Format is Auto-Detected in SDI and HDMI. All outputs are active regardless of audio and video input selection.
Frame Synchronization
Frame Synchronization	The Monarch HDX contains frame synchronization circuitry designed to compensate for disruptions of the input signal. This circuitry is in place for both SDI and HDMI inputs. Streaming and recording operations will proceed cleanly with repeated or dropped frames.
H.264/MPEG-4 Part 10 (AVC) Video Encoder
Resolutions	Selectable encoding resolutions ranging from: 128x128 to 1920x1080
Bit Rates Ranges	Single Encoder - Streaming mode: 20 Mbps Single Encoder - Recording mode: 30 Mbps Dual Encoder - Maximum of 10 Mbps for streaming channels Maximum of 30 Mbps combined for both channels
Encode Frame Rates	Encode frame rates selection includes; 60/50, 30/25/24 and 15/12.5. Single Encoder – Maximum of 1080p60 fps Dual Encoder – Maximum of 720p60 fps or 1080p30 fps
Encoding Profiles	Baseline, Main and High
Encoding Controls	2.0, 3.0, 3.1, 4.0, 4.1 Level Support GOP Size Variable bit rate support Average max/min data rate controls Deblocking Filter
View Samples	Click here
MPEG-4 AAC Audio Encoder
Standard	AAC-LC
Sample Frequency	32, 44.1 and 48 kHz when digitized from an analog source
Channels	2 channels Stereo (L/R)
Bit Rates	Range from 32 kbps to 256 kbps Note that audio codec settings are applied to both encoders.
Scaler
	High Quality multi-tap 10 bit Down Scaler and De-Interlacer Available to both streaming and recording operations
H.264 Input preview Stream
Resolution	320x180
Average Bitrate	100-300 kbps
Stream Type	RTSP Note the preview encoder is automatically disabled when primary encoder resolution are at the max to ensure best streaming and/recording performance.
Recording File Format
File Type	Industry Standard MP4 and MOV files with two channels of embedded AAC audio
Recording Lengths	Maximum file length of 300 minutes—irrespective of storage type used. File splitting feature allows a user to record continuously for long periods by defining file segment sizes. The Monarch HDX will create these sequential file segments over the course of the recording operation without losing a single frame of video. File segment can have a length of 1 to 300 minutes.
Network Interfaces
Connector	RJ45 providing 10/100/1000 Base-T Ethernet with Static or DHCP addressing
Protocols	RTMP, RTSP/RTP IPv4 Support Unicast and Multi Unicast (number of clients may vary from 3 to 10)
User Interface
Computer Based control	HTTP via standard PC or Mac web browser using Monarch HDX Command Center.
Physical Interface	On Device push buttons for independent streaming and recording with Start/Stop control
Storage Types for File Recording
2 x USB 2.0	Support for NTFS (3.1) and FAT32 file system The Monarch HDX will support writing to USB3 devices at USB2 speeds. Also note, there is a very high variability in the performance capabilities of “thumb” drives (even USB3 versions). Many are optimized for “read” operations while the Monarch HDX requires sustained “write” capabilities. For best results, Matrox recommends using powered USB drives. If small portable media is required, SD cards may be more suitable.
1 x SD card Slot	Supports SD and SDHC cards. Only NTFS formatted SDXC cards are supported. (Class 10 highly recommended).
Network Mapped Drive	Support for writing to shared folders in computers found on a network using Windows Share protocols (SMB v1) (suitable for Windows system) as well as NFS protocols (suitable for Mac and Linux systems).
Matrox Monarch HDX Command Center Web UI
Start Stop Controls	These buttons are available at all times no matter where you navigate in the UI.
Status Page	Provides relevant operational information concerning Status of Monarch HDX unit at that time including; Input video detection and resolution, State and configuration of Streaming operation, State and configuration of Recording operation, Error conditions, etc.
Control Page	Multiple Monarch devices can be connected in a Master/Slave topology to allow for synchronized recording and streaming operations across multiple units via a single interface.
Record Settings	Configuration of recording parameters set within this page. A number of presets are included which are selected based on post event use of the recorded asset. If file is to be uploaded for VOD purposes, a YouTube preset may be selected. If content is to be edited for high quality production, a higher bitrate preset may be preferable.
Streaming Settings	Configuration of Streaming parameters performed on this page. The RTMP or RTSP credentials as well as encoding parameters are entered. Encoder presets have been included to quickly select an ideal encoder settings based on desired delivery resolution or bitrate. The loading of Flash Media Server XML configuration files is supported.
Administrative tools	Device Naming, IP configuration, Date/Time settings and a variety of other tasks performed via this page.
Additional Tools	Matrox provides PC or Mac based utilities to help detect the Monarch HDX Device on a particular Network (DHCP server required), to update Monarch HDX devices with latest firmware and to reboot the devcies remotely.
Physical
Dimensions	Length (shell) - 5.6" (14.2cm), Length (shell +BNCs) - 6" (15.3cm), Width - 8.5" (21.6 cm), Height (shell) - 1.4"(3.6cm), Height (Shell + pads) - 1.5" (3.81cm)
Weight	1.3 lbs, 0.6 kg
Operating conditions	32 to 104 deg. F (0 to 40 deg. C), 20 to 80% relative humidity (non-condensing)
Power	Input: 9-24 volts Connector: Din4 Total Power Consumption: 20-30 watts (42 max)
Power Supply	Line Voltage: 100-240 VAC Frequency: 50-60 Hz Input: External AC/DC adapter - IEC320-C14 DIN4 Locking Power Connector
Transport and Storage	Max Operating Altitude: 3000 meters Max Transport altitude: 12,000 meters Storage Humidity 5 to 95% relative humidity (non-condensing)
Regulatory	EMI: FCC Class A, CE Mark Class A, ACMA C-Tick Mark, VCCI Power-supply Safety : UL/CUL(UL60950-1), TUV-GS(EN60950-1), T-LICENSE(BS EN60950-1), CCC(GB4943.1-2011), PSE(J60950), SAA(AS/NZS60950-1), KC-MARK(K60950), S-MARK(IEC60950-1) RoHS Directive 2002/95/EC
Warranty	2 years with free telephone support
Kit Contents
In the box	Matrox Monarch HDX device Matrox Monarch HDX external power supply IEC-C8 power cords (US, GB and EU)
Ordering Information
MHDX/I	Matrox Monarch HDX part number
MRCH/RACK/KIT	Monarch Rack Mount Kit. Can fit up to two Monarch HDX units in a 1RU space.
PWR/SUP/MHDX	Monarch HDX power supply unit. Does not include IEC-C8 power cord. These cables must be sourced locally.
