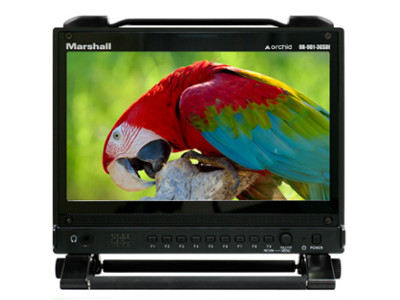

The OR-901-3GSDI 9" ORCHID® rack mountable / portable field monitor has all the features that customers have asked for and more. The OR-901-3GSDI is 4RU and has 9 user-assignable function keys as well as a rotary menu system. The ORCHID series includes a variety of 3D production tools and Anaglyph views. The built-in waveform monitor (which includes adjustable White and Black clip level indicators) can be displayed in three different aspect ratios including Full Screen. The built-in Vectorscope displays in full color and can also be displayed in three different ratios.

The Vectorscope has adjustable gain from 1x to 5x. The OR-901-3GSDI will de-embed and display up to 16 channels of audio and allow the user to monitor any two channels at once through the headphone jack or rear line output jack. Also includes built-in front panel speaker and rear panel stereo input for audio monitoring. The 64-segment tri-color bar graph meters have user-adjustable reference levels. The OR-901-3GSDI comes standard with auto-sensing 3G-SDI inputs and re-clocked output. This unit can be used in a rack, on a desktop, in the field, or mounted to a camera. The new G-Marker displays a grid that corresponds to the horizon to help accurately level the camera and monitor.

3D PRODUCTION TOOLS:

The ORCHID series now includes 3D production tools including four Anaglyph 3D modes as well as five 3D analytic views. In order to make use of this feature, the source can be formatted as a single Side-by-Side Half Horizontal input.
