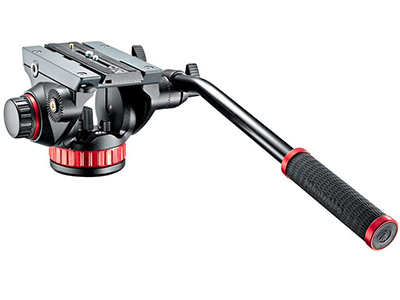

Manfrotto 502AH Fluid Video Head (Flat Base)

Code: JOH/MAV.MVH502AH

The Manfrotto 502 Fluid Video Head with flat base features variable fluid drag system for pan and tilt movements that's cleverly incorporated into the design.

For purchasing information

Enquire Now

Overview
Specifications

What's In The Box?

Manfrotto 502AH Pro Video Head

Manfrotto Quick-Release Long Mounting Plate

Pan Bar

The Manfrotto 502 Fluid Video Head with flat base features variable fluid drag system for pan and tilt movements that's cleverly incorporated into the design.

It's ideal for the latest camcorder and HDSLR cameras supplied with external accessories. It has a maximum capacity of 7kg and features a Ø75mm half ball connection to ensure compatibility with most equipment today.

This video head also has a fixed counterbalance system of 4 Kg Last but not least, 3/8'' Easy Link attachment points allow an external monitor or other accessory equipment to be fitted.

Features

Variable Fluid Drag System on PAN and TILT movements
Fixed Counterbalance system
Sliding plate for the fastest camera connection and set up
Flat base for multiple support combinations
3/8” easy link connectors for accessories

Specifications

Weight	1.691 kg
Top Attachment	1/4″ screw, 3/8″ screw
Ball Flat	Flat
Safety Payload Weight	7 kg
Counterbalance System	Fixed
Powered by (batteries)	0
Base Diameter	75 mm
Bubble Spirit Level (No.)	1
Center of gravity	55 mm
Certifications	None
Colour	Black
Easy Link	Yes
Front Tilt	-80° / +90°
Head Type	Video/Fluid Head
Material	Aluminium
Maximum Working Temperature	60 °C
Minimum Working Temperature	-20 °C
Pan Bar Included	Yes
Pan Drag	continuously adjustable from 0 to max level
Panoramic Rotation	360°
Plate Type	504PLONG
Quick Release	Yes
Tilt Drag	continuously adjustable from 0 to max level
Counterbalance Weight	4 kg
Working Height	13 cm
Accessory Compatibility	MVAPANBARM; MVAPANBARL; 502HLV; 509HLV; 520BALL, 520BALLSH
