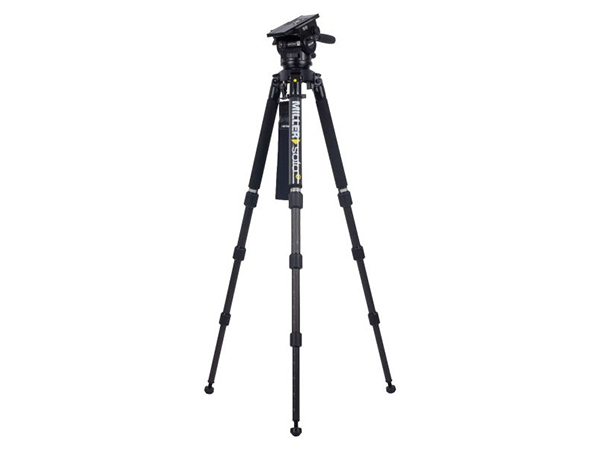

Miller 3032 - Arrow X1 Head with Solo 3 Stage Carbon Legs

Code: MIL/3032

On Sale!

$5,422.73

$3,213.00

Add to Cart

Found this item cheaper elsewhere? Let us know

ENQUIRE NOW

Special Order Item

Usually ships in 1-2 weeks

Request ETA

Overview
Specifications

What's In The Box?

1070 Arrowx 1 fluid head

1505 Solo 100 3-stage tripod (carbon fibre)

696 Pan handle - telescopic with clamp

1520 Solo shoulder strap (Aircell)3

3502 Arrowx softcase 2-stage

The 3032 Carbon Fibre, Solo 100, 3-stage Arrowx 1 system, is designed for speed of setup, high level of stability and flexibility of payloads, The 1505 spreader less three stage tripod, included in this system provides the ultimate range of heights, speed of set up and works perfectly on all terrains.

Specification - Arrowx 1 Solo 100 3 Stage Carbon Fibre

Payload Range	0-16.0kg (0-35.3lbs)
Weight	6.6kg (14.5lbs)
Height Range	382-2032mm (15-80")
Transport Length	820mm (32.3”)
Counterbalance Positions	16 selectable positions
Pan Tilt Drag	5 selectable fluid drag positions + 0
Pan Tilt Locks	Positive lock calliper brake system
Tilt Range	+90° / -75°
Pan Range	360°
Camera Platform	Quick release camera plate (Euro)
Sliding Range	120mm (4.7”)
Mounting Base	Ø100mm (3.9") ball levelling
Height Above Bowl	162mm (6.4")
Illuminated Controls	Bubble level, pan-tilt drag controls
Pan Handle	Telescopic 390-590mm (15.4-23.2")
Temperature Range	-40° to +65°C (-40° to +150°F)
Leg Extension	3-stage telescopic
Lock Type	Concentric Rapid lock
Leg Material	Carbon fibre
