MID49 Audio Breakout AB-7 Right Angle (ARRI Sonosax AEM-1, Dual Mini XLR Female)

Code: M49/M49-BOB-AB7-RA
$425.00

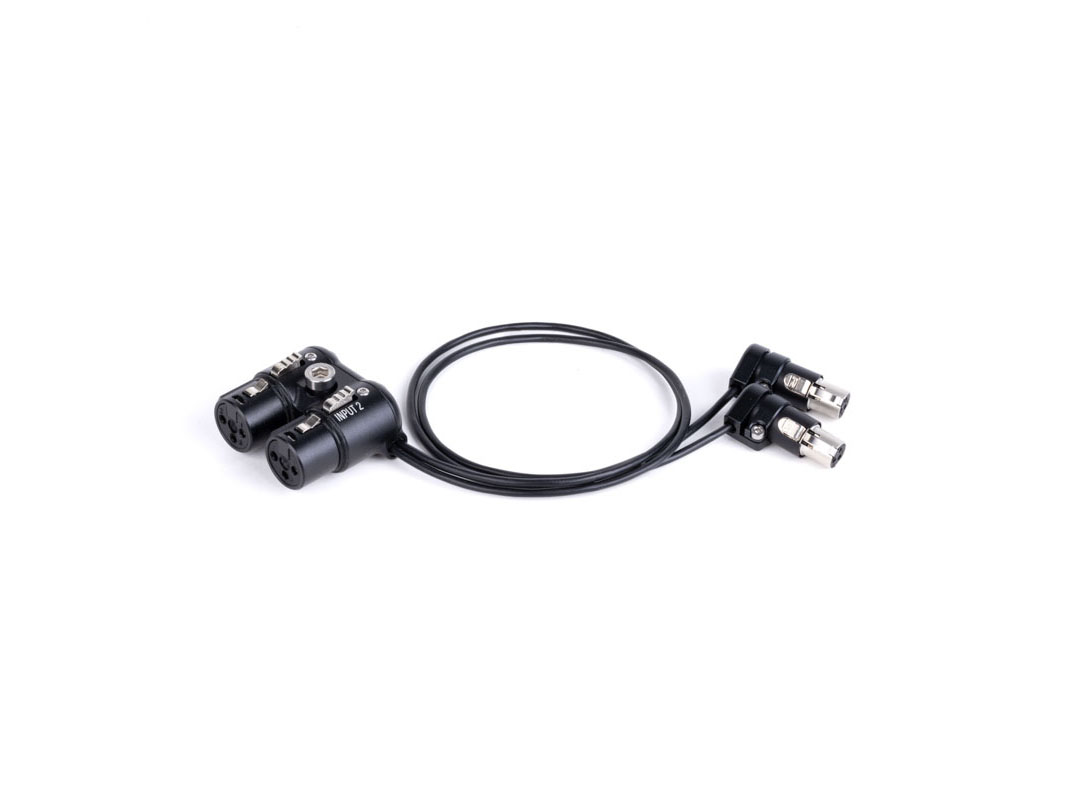

Audio Breakout AB-7 (ARRI Sonosax AEM-1, Dual Mini XLR Female) is a passive adapter that converts the ARRI Alexa 35's Sonosax AEM-1 dual mini XLRs to two standard, full-size XLRs.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when MID49 Audio Breakout AB-7 Right Angle (ARRI Sonosax AEM-1, Dual Mini XLR Female) is back in stock.

Audio Breakout AB-7 (ARRI Sonosax AEM-1, Dual Mini XLR Female) is a passive adapter that converts the ARRI Alexa 35's Sonosax AEM-1 dual mini XLRs to two standard, full-size XLRs.

Attaches by a captive 1/4-20 screw and rubber pad to ARRI's camera cage components.

Two M4 threaded holes in 20mm ARRI spacing are available to add Breakout Box Side Mounting Bracket (ARRI 3/8-16) (sold separately), which allows AB-7 to attach using a 3/8-16 screw with ARRI locating pins.

Attaches easily to rods using the Single 15mm Rod Clamp or Single 19mm Rod Clamp  (sold separately).

12 inch (30.5cm) cable length with two 3-pin female mini XLR connectors.  Right-Angle connectors also available.



Product Weight: 1.50oz (42g)
Product Dimensions (WxLxH):
1.36 x 10.91 x 1.09in (35 x 277 x 28mm)
