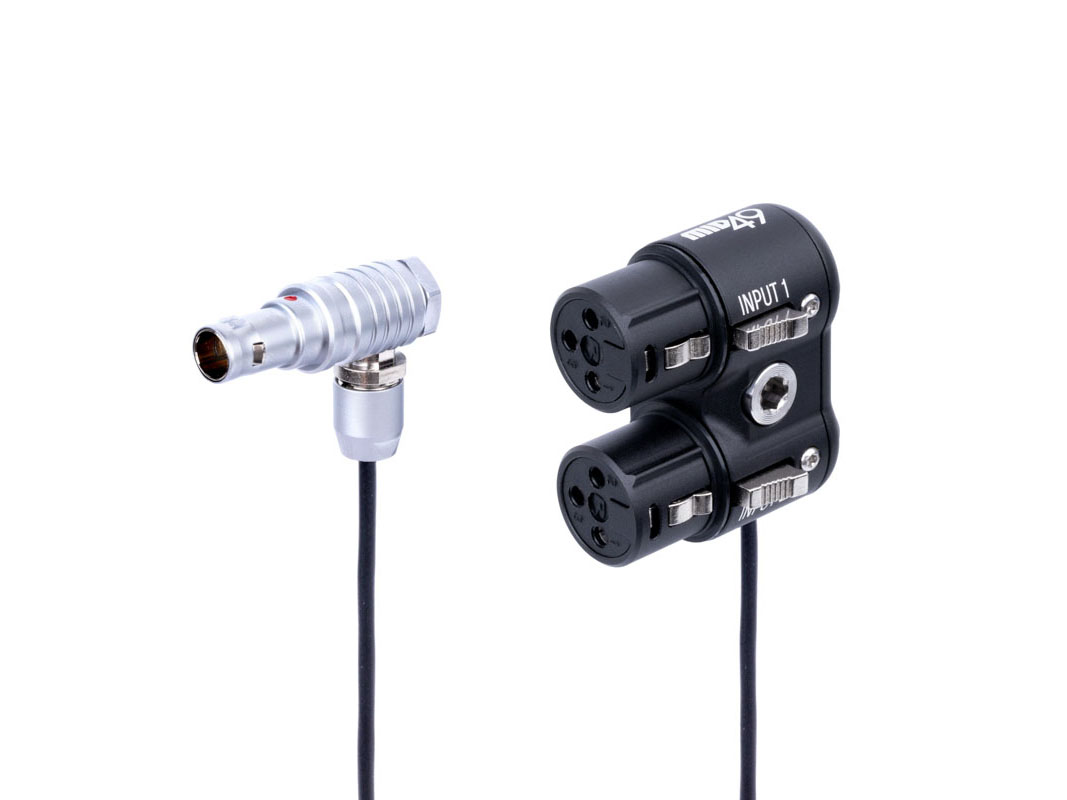

Audio Breakout AB-2 (ARRI Alexa 35, Alexa Mini LF) is a passive adapter that converts the camera's 6-pin 0B LEMO to two standard, full-size XLRs.Attaches by a captive 1/4-20 screw and rubber pad to the camera body or side plates.
Two M4 threaded holes in 20mm ARRI spacing are available to add Breakout Box Side Mounting Bracket (ARRI 3/8-16) (sold separately), which allows AB-2 to attach using a 3/8-16 screw with ARRI locating pins.Attaches easily to rods using the Single 15mm Rod Clamp or Single 19mm Rod Clamp (sold separately).
8 inch (20cm) cable length with right angle LEMO-compatible connector.
Product Weight: 1.50oz (42g)Product Dimensions (WxLxH): 1.36 x 10.91 x 1.09in (35 x 277 x 28mm)
