MID49 Audio Breakout AB-1 (RED Komodo-X, V-Raptor, ARRI Alexa Mini, Z CAM E-2)

Code: M49/M49-BOB-AB1
$360.00

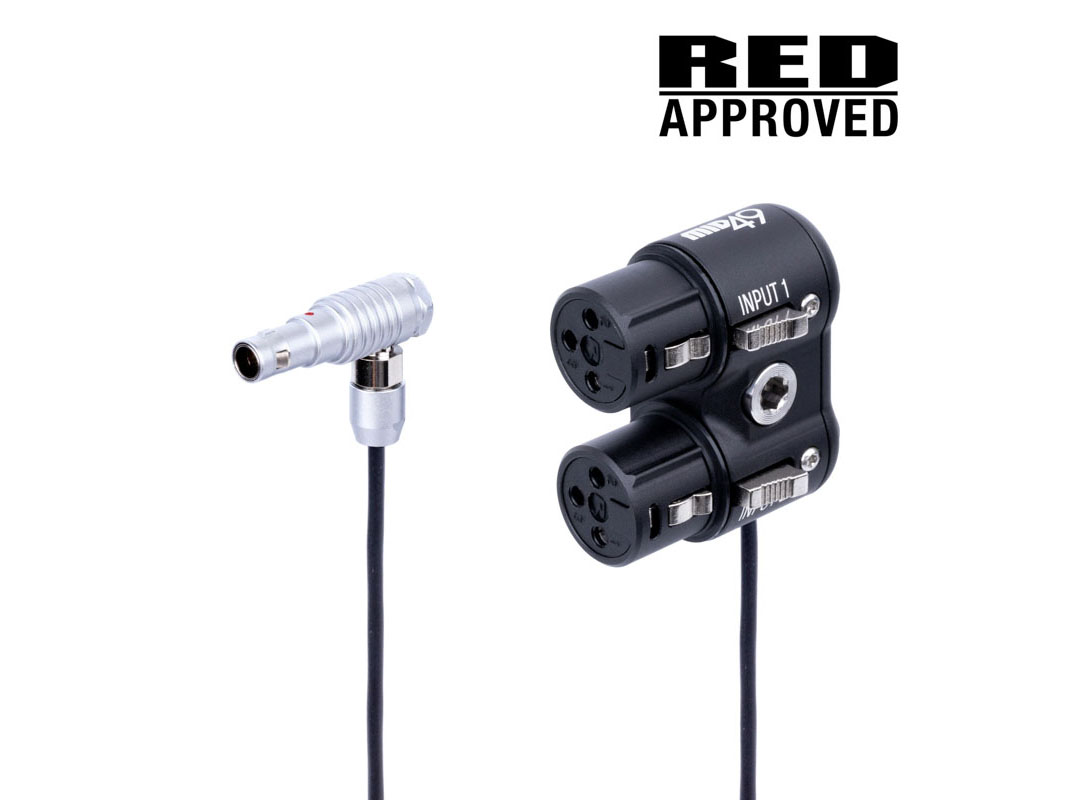

Audio Breakout AB-1 (RED Komodo-X, V-Raptor, ARRI Alexa Mini, Z CAM E-2) is a passive adapter that converts the camera's 5-pin 00 LEMO to two standard, full-size XLRs.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when MID49 Audio Breakout AB-1 (RED Komodo-X, V-Raptor, ARRI Alexa Mini, Z CAM E-2) is back in stock.

Audio Breakout AB-1 (RED Komodo-X, V-Raptor, ARRI Alexa Mini, Z CAM E-2) is a passive adapter that converts the camera's 5-pin 00 LEMO to two standard, full-size XLRs.

Attaches by a captive 1/4-20 screw and rubber pad to the camera body or side plates like RED Komodo Breakout Side Plate(sold separately).  Please see the installation guide video here

Two M4 threaded holes in 20mm ARRI spacing are available to add Breakout Box Side Mounting Bracket (ARRI 3/8-16) (sold separately), which allows the AB-1 to attach using a 3/8-16 screw with ARRI locating pins.

Attaches easily to rods using the Single 15mm Rod Clamp or Single 19mm Rod Clamp  (sold separately).

Also compatible with Z CAM E2 (all models) but may conflict with CTRL 1 port or COM port due to connector angles.

8 inch (20cm) cable length with right angle LEMO-compatible connector.

Product Weight: 1.50oz (42g)
Product Dimensions (WxLxH): 1.36 x 10.91 x 1.09in (35 x 277 x 28mm)
