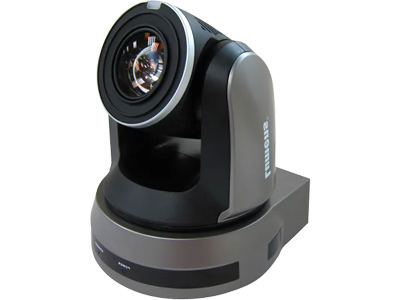

Lumens VC-A61PN UHD PTZ IP Camera with NDI

Code: COR/VC-A61PN

$5,395.00

With advanced NDI®|HX technology, the VC-A61PN delivers high-quality video with ultra-low latency and connects directly to an NDI®network, utilizing NDI-based video production workflows without additional configuration, reducing cost and set-up time.

Black version. White also available.

Add to Cart

Found this item cheaper elsewhere? Let us know

ENQUIRE NOW

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when Lumens VC-A61PN UHD PTZ IP Camera with NDI is back in stock.

Overview
Specifications

Advanced NDI®|HX Technology

With advanced NDI^®|HX technology, the VC-A61PN delivers high-quality video with ultra-low latency and connects directly to an NDI^®network, utilizing NDI-based video production workflows without additional configuration, reducing cost and set-up time.

4K Ultra HD Video Image Quality

Equipped with 4K Ultra HD 1/2.5” CMOS sensor that delivers a crystal-clear image and natural color reproduction. Outstanding video performance and quality make you capture every scene with ease.

See Image Details in 30x Optical Zoom

The superior 30x optical zoom lens smoothly and quickly captures every detail even in low light conditions and provides image details without any distortions.

The PTZ Camera for Every Application

Broadcasting, House of Worship, E-sports, Live Events, etc.
Live streaming for larger audiences with simpler installation
Ultra-low latency with NDI^®|HX technology enhances the streaming quality

Sensor	1/2.5" 8.57MP CMOS
Video Format	2160p: 29.97 / 25 1080p: 59.94 / 50 / 29.97 / 25 720p: 59.94 / 50 1080i: 59.94 / 50
Video Output Interface	3G-SDI / HDMI / Ethernet
Optical Zoom	30x
Digital Zoom	12x
Horizontal Viewing Angle	68°
Panning Angle	+170° ~ -170°
Panning Speed	300°/ sec
Tilting Angle	+90° ~ -30°
Tilting Speed	300°/ sec
Aperture	F1.6 ~ F3.4
Focal Length	4.6mm ~ 135mm
Shutter Speed	1/1 ~ 1/10,000 sec
Minimum Object Distance	1.5m (Wide / Tele)
Video S/N Ratio	> 50dB
Minimum Illumination	0.1 lux (F1.6, 50IRE, 30fps)
Focus System	Auto / Manual
Gain Control	Auto / Manual
White Balance	Auto / Manual
Exposure Control	Auto / Manual
WDR	Yes
3D NR	Yes
Image Flip	Yes
Preset Positions	256
Multiple Video Stream	H.264 4K30fps H.264 640x360 30fps
Audio Compression Format	AAC
Control Interface	RS-232 / RS-422 / Ethernet
Control Protocol	VISCA / PELCO D
Tally Light	Yes
PoE	PoE+ (IEEE802.3at)
Video Stream	NDI
Video Compression	H.264
Audio Input	Line In / MIC In (Phone Jack 3.5mm x1)
Audio Output	Ethernet / SDI / HDMI
IR Pass-through	Yes
IR Receiver	Yes
IR Remote control	Yes
DC In	12V +/- 20%
Power Consumption	PoE : 18W DC In : 16W
Weight	4.4 lbs (2 kg)
Dimensions	6.9" x 7.5" x 7.3" (174 x 190 x 187 mm)
