Lumens

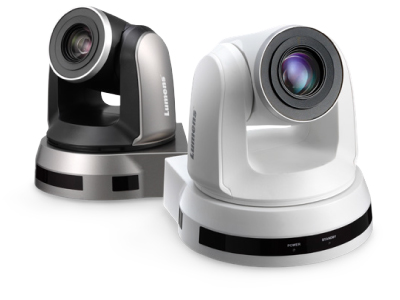

Lumens VC-A50P PTZ Camera

Item Code: COR/VC-A50P

The Lumens VC-A50P 20x 1080p IP/SDI/HDMI PTZ Camera supports simultaneous output of up to 1080p60 resolution video via Ethernet, 3G-SDI, and HDMI outputs. It is capable of live broadcasting over the Ethernet output with the space-saving MJPEG/H.264 SVC compression format and a latency of only <120ms. The camera offers up to 20x optical zoom and fast 120° horizontal and vertical rotation, making it suitable for lecture halls and large conference rooms. PoE-powered, it also allows for a simpler power solution.

RRP: 2983.0000   Save:

For purchasing information

What's In The Box?

  • Lumens VC-A50P PTZ Camera
  • Remote Control
  • Power Adapter
  • Power Cord
  • RS-422 Connector
  • Metal Plate A
  • Metal Plate B
  • Set of M3 Screws

The Lumens VC-A50P 20x 1080p IP/SDI/HDMI PTZ Camera supports simultaneous output of up to 1080p60 resolution video via Ethernet, 3G-SDI, and HDMI outputs. It is capable of live broadcasting over the Ethernet output with the space-saving MJPEG/H.264 SVC compression format and a latency of only <120ms. The camera offers up to 20x optical zoom and fast 120° horizontal and vertical rotation, making it suitable for lecture halls and large conference rooms. PoE-powered, it also allows for a simpler power solution.

The VC-A50P supports independent stereo audio input with AAC encoding for embedding into the IP, SDI, and HDMI signals. The camera can be controlled over RS-232/RS-422 serial control and over Ethernet, and it includes a free download of the Lumens VMS remote control software. Up to 128 presets can be set and recalled with smooth and quiet precision. The 2MP, 1/2.8" image sensor provides high color reproduction while auto/adjustable gain, white balance, exposure, and focus optimize the image for different environments.

Features

IP Camera

No need for extra cables, connect and control via IP.

Live Broadcasting

VC-A50P is applicable for lecture recording, videoconferencing, and live broadcasting.

SRT protocol

Supports SRT(Secure Reliable Transport) protocol that optimizes a streaming performance.

Image Quality

The VC-A50P is equipped with a professional 1/2.8 inch image sensor with Full HD 1080p output resolution. The sensor provides high color reproduction, high-definition signals, and crystal-clear image quality.

Supports PoE+ for Easy In allation

Power supplied through the PoE+ (Power over Ethernet) without additional power supply and cables that bring cost-effective and simple installation.

Wide Range Pan/Tilt/Zoom Action

The VC-A50P has a wide shooting area (pan angle from -170° to +170° ; tilt angle from -30° to +90°), as well as quiet, fast, and precise positioning movements.

Multiple Signal Interface

The VC-A50P has multiple interfaces like Ethernet, HDMI, and 3G-SDI for simultaneous image outputs.

Audio Input Support

The VC-A50P supports stereo audio input and AAC encoding transmission through the Internet, SDI and HDMI to extend the distance of the audio device. Through this transmission, sound quality is enhanced and installation costs are reduced.

Low-Latency Streaming

The VC-A50P supports MJPEG/ H.264 / SVC video compression format which reduce the bandwidth and it also supports low-latency and the fast response time is less than 120 ms so that allows human-unnoticeable delays between live image and streaming video.

RS-232/422 Remote Control

The camera’s settings and PTZ control functions can be performed remotely at any location and at high communication speeds via the RS-232/422 interface.

Remote image monitoring for IP Control

The built-in web page allow you to use an IP browser to remotely view and control camera using a PC, Mac or mobile devices. IP video can be transmited to up to 5 terminals.

Free Camera Control Software

Free Lumens camera control software for controlling Lumens PTZ cameras and pre-view function supports 1080p with 60fps video output. Easy to adjust camera pan, tilt, zoom operation, pre-set and image setting.

Support an upgrade for NDI|HX compatibility

VC-A50P can be upgraded to support NDI|HX technology for NDI-based video production.

Specifications

Sensor 1/2.8" 2MP CMOS
Video Output 1080p 60 / 59.94 / 50 / 30 / 29.97 / 25 fps,
1080i 60 / 59.94 / 50 fps,
720p 60 / 59.94 / 50 fps
Optical Zoom 20x
Panning Angle -170° ~ +170°
Tilting Angle -30° ~ +90°
Preset Positions 128
Video Output (HD) Interface 3G-SDI, HDMI, Ethernet
Video Stream RTSP / RTMP
PoE PoE+ (IEEE802.3at)
Camera Control Interface RS-232 / RS-422 / Ethernet
Camera Control Protocol VISCA / PELCO D
Video S/N Ratio > 50dB
Shutter Speed 1/1 ~ 1/10,000 sec
Focal Length f = 4.7 ~ 94 mm
Video Compression MJPEG, H.264 / SVC
3D NR Yes
Horizontal Viewing Angle 63°
Aperture F1.6 ~ F3.5
Minimum Illumination 1.0 lux (F1.6, 50IRE, 30fps)
Minimum Object Di ance 1.2m
Gain Control Auto, manual
White Balance Auto, indoor, outdoor, one-push, manual
Exposure Control Auto, manual
Focus System Auto, manual
Image Flip Yes
Audio Input Line In / MIC In
Audio Output Ethernet, SDI and HDMI
Weight 2 kg (4.4 lbs)
Package Contents
Dimensions (W x D x H) 174 x 186 x 187mm (6.9” x 7.3” x 7.3”) Sensor 1/2.8" 2MP CMOS
Video Output 1080p 60 / 59.94 / 50 / 30 / 29.97 / 25 fps,
1080i 60 / 59.94 / 50 fps,
720p 60 / 59.94 / 50 fps
Optical Zoom 20x
Panning Angle -170° ~ +170°
Tilting Angle -30° ~ +90°
Preset Positions 128
Video Output (HD) Interface 3G-SDI, HDMI, Ethernet
Video Stream RTSP / RTMP
PoE PoE+ (IEEE802.3at)
Camera Control Interface RS-232 / RS-422 / Ethernet
Camera Control Protocol VISCA / PELCO D
Video S/N Ratio > 50dB
Shutter Speed 1/1 ~ 1/10,000 sec
Focal Length f = 4.7 ~ 94 mm
Video Compression MJPEG, H.264 / SVC
3D NR Yes
Horizontal Viewing Angle 63°
Aperture F1.6 ~ F3.5
Minimum Illumination 1.0 lux (F1.6, 50IRE, 30fps)
Minimum Object Di ance 1.2m
Gain Control Auto, manual
White Balance Auto, indoor, outdoor, one-push, manual
Exposure Control Auto, manual
Focus System Auto, manual
Image Flip Yes
Audio Input Line In / MIC In
Audio Output Ethernet, SDI and HDMI
Weight 2 kg (4.4 lbs)
Dimensions (W x D x H) 174 x 186 x 187mm (6.9” x 7.3” x 7.3”)
