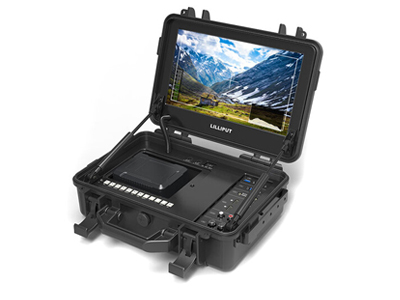

Lilliput BM120-4KS 12.5" 4K HDMI Broadcast Director Monitor in Hard Case

Code: DIS/LILLIBM1204KS
$1,195.00

Built for travel and location work, the Lilliput 12.5" 4K Broadcast Director Monitor with SDI, HDR & 3D LUTS in Hard Case is a portable self-contained monitor solution with a wealth of features suited to broadcast productions.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when Lilliput BM120-4KS 12.5" 4K HDMI Broadcast Director Monitor in Hard Case is back in stock.

What's In The Box?

  • Lilliput 12.5" 4K Broadcast Director Monitor with SDI, HDR & 3D LUTS in Hard Case
  • 1x Sun Hood
  • 1x V-Mount Battery Plate
  • 1x Tally Connector
  • 1x USD Flash Drive

Built for travel and location work, the Lilliput 12.5" 4K Broadcast Director Monitor with SDI, HDR & 3D LUTS in Hard Case is a portable self-contained monitor solution with a wealth of features suited to broadcast productions. Enclosed in a protective case, the monitor's 3840 x 2160 LCD panel is built into the lid, with the V-mount battery plate and inputs/outputs located in the base, and with all connections protected from dust, water, and damage during transport and storage. The case lid has two pistons that protect the built-in panel by preventing the lid from being jerked open or accidentally slammed shut. The monitor has 3G-SDI input and output supporting 1080p60, two HDMI 2.0 inputs that support 4K60, and two HDMI 1.4b inputs that support 4K30. The monitor also supports VGA and DVI inputs. Video signals inputted via any of these ports will be properly scaled to fit the entire screen. The USB port is used to load LUTs into the monitor, while analog audio from the RCA inputs or embedded digital audio from video inputs can be heard using the monitor's built-in speakers or via the 3.5mm headphone output. There is a tally input, and a DB-9 tally adapter is included to utilize tally information on the monitor. The monitor also supports adjustable HDR color spaces, and you can choose built-in presets or load custom 3D LUTs via its USB port. For power, this monitor accepts a V-mount battery (not included), and it has a built-in coaxial power input that accepts 10 to 24 VDC.

Features

Monitoring Tools

  • Peaking
  • Check field
  • Image rotation/flip
  • Overscan
  • Underscan
  • Image freeze
  • Pixel to pixel
  • False color
  • Exposure (SDI-only)
  • Histogram (SDI-only)
  • Timecode (SDI-only)
  • Aspect ratio selection
  • Screen markers
  • Color space
  • HDR
  • Color temperature adjustment

HDR and 3D LUTs

When HDR is activated (HDMI 1 only), the display reproduces a greater dynamic range of luminosity, allowing for colors and lighter and darker details to be displayed more clearly. You can use preset Logs or load your custom LUTs via the USB port.

Selection Buttons

Below the battery slot are dedicated input select buttons with menu and navigation buttons.

Accessory Mounting

An accessory mounting bar is mounted on the right side of the case exterior, allowing you to attach accessories such as a wireless video receiver to the case.

Power

The monitor features a V-mount for use of batteries, and it also has both a 10 to 24V power input and a 12V power output connector.

Specifications

Display

Panel Type LCD
Display Size 12.5" / 31.8 cm
Resolution 3840 x 2160
Aspect Ratio 16:9
Viewing Angle Horizontal: 170°
Vertical: 170°
Touchscreen No
Maximum Brightness 400 cd/m2
Contrast Ratio 1500:1
HDR Compatibility None
Pixels Per Inch (ppi) 352 ppi
Real-Time LUT Monitoring HDR
Image Controls Blue Only, Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, Green Only, Histogram, Image Flip, Red Only, Scaling, Screen Markers, Screen Split - Quarter, Underscan, Zebra

I/O

Video 2 x HDMI Type A (HDMI 2.0) Input
2 x HDMI Type A (HDMI 1.4b) Input
1 x BNC (3G-SDI) Input
1 x BNC (3G-SDI) Output
1 x DVI-I (Dual-Link DVI) Input
1 x DE-15/DB-15 (VGA) Input
Audio 1 x 2RCA Line Input
1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker 1
Power 1 x Coax (24 VDC) Input
1 x Coax (12 VDC) Output
Other I/O 1 x Tally (DE-9/DB-9)
Media/Memory Card Slot None
Wi-Fi None

Format Support

Video Format HDMI
UHD 4K
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98

Power

DC Input Power 10 to 24 VDC
Battery Type 1 x V-Mount
Power Consumption 23 W

Environmental

Operating Temperature 50 to 122°F / 10 to 50°C
Storage Temperature 50 to 140°F / 10 to 60°C

General

Dimensions 14 x 12.2 x 4.8" / 356.8 x 309.8 x 122.1 mm
Weight 9.59 lb / 4.35 kg
Warranty Length Limited 1-Year Warranty
