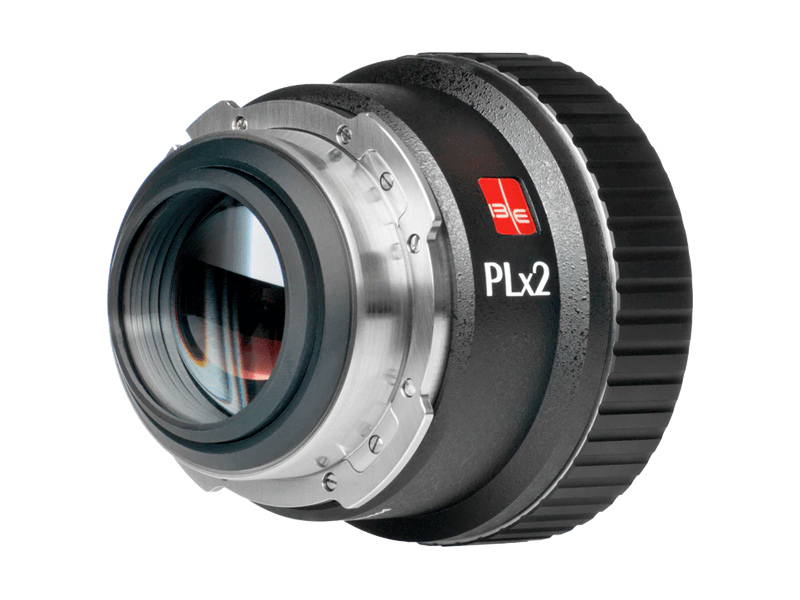

IB/E PLx2 Extender

Code: SEC/500000012495
$9,185.00

While most extenders can only physically fit on a limited range of lenses, the design of the PLx2 accommodates more spherical and anamorphic PL mount lenses than any other doubler on the market.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when IB/E PLx2 Extender is back in stock.

While most extenders can only physically fit on a limited range of lenses, the design of the PLx2 accommodates more spherical and anamorphic PL mount lenses than any other doubler on the market. This is achieved by designing the extender with a deep-set optical assembly, thus, making it possible to use lenses with long protruding rear elements.

The PLx2 will mount perfectly to any digital camera with a native PL mount. It will also clear the spinning mirror on ARRI and Aaton 35 mm cameras.

Optically, the PLx2 projects an image circle large enough to cover all commonly used 35 mm formats including 5K on RED Epic and 4:3 full frame on ARRI Alexa.

Maximum image diameter: 34.5 mm

Maximum input T-stop: 1.9

PLx Extenders

Modern cameras require high quality optics designed and optimized for electronic sensors. PL extenders increase the focal length of 35 mm PL mount lenses. Our extenders feature high-index, low-dispersion glass and flare optimized systems to ensure the highest possible resolution and contrast with minimal optical degradation. The highly telecentric optical design avoids all micro lens issues.

Features

  • Advantages:
  • Extends the focal length
  • Telecentric design for digital cameras high performance at all T-stops
  • Flare optimized high-end systems
  • Fits most PL lenses on the market
  • PL-PL Extender
  • PL UMS Mount System for flexibility

Specifications

Optical design (lenses/groups): 7/5

Focal length extension: 2x

Max. image diameter (mm): 34.5

Max. input T-stop: 1.9

Light drop (stops): 2.0

Lens mount: PL Standard

Camera mount: PL UMS Mount*

Length (mm) PL to PL: 48.2

Diameter (mm): 78.0

Weight (kg): 0.55

* without F-Mount
