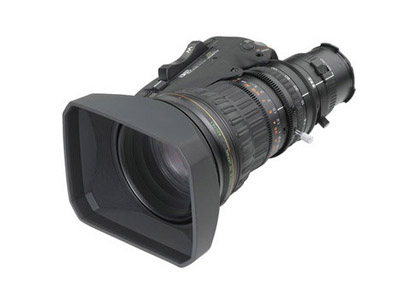

Fujinon XA17X7.6BRM HD Lens with CAC

Code:
Standard ENG Style HD lens for news and production with 2X extender and Digi Power servo. * This is an exclusive OEM product and is only available with Panasonic P2 HD cameras.

For purchasing information

Enquire Now

Standard ENG Style HD lens for news and production without 2X extender. Includes Digi Power servo. * This is an exclusive OEM product and is only available through Panasonic. All other 2/3 inch HD lenses are available for this camera thru normal distribution channels.

There is no media for this item.

Specifications

Camera Format 2/3"
Focal Length 7. 6 to 130 mm
Zoom Ratio 17X
Extender No
Maximum Relative Aperture 1:1.8 (7.6 ~ 105 mm) 1:2.4 (130 mm)
Maximum Photometric Aperture T-No. T1.9~T3.8
Minimum Object Distance from Image Plane 0.84m
M.O.D from Front of Lens 0.6 m
Object Dimensions at M.O.D. 7.6 mm 738 x 415 mm 137 mm 43 x 24 mm
Angular Field of View 7.6 mm 64° 30’ x 39° 03’ 130 mm 4° 13’ x 2° 23'
Filter Size ø 82 mm P=0.75
Size (Diameter x Length) ° 85 X 204 mm
Weight (w/o hood) 1.53kg
