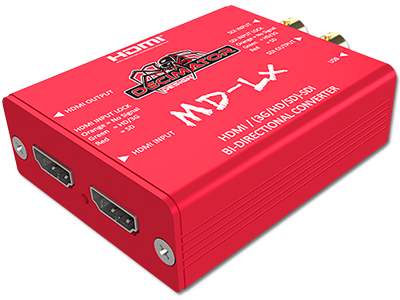

Decimator (Redbyte) HDMI-SDI Bi-Directional Converter

Code: DEC/MD-LX
$150.00
The DECIMATOR MD-LX is a pocket-sized (measuring 60mm x 73.7mm x 23mm) bi-directional converter featuring an HDMI input and output on one side and 3G/HD/SD-SDI input and output on the other. It supports up to 1080p60 resolution and offers multiple input/output conversion modes.

ENQUIRE NOW

Got a question about this product?
Send us a message

In Stock

In stock - Ships in 1-2 days

The DECIMATOR MD-LX is a pocket-sized (measuring 60mm x 73.7mm x 23mm) bi-directional converter featuring an HDMI input and output on one side and 3G/HD/SD-SDI input and output on the other. It supports up to 1080p60 resolution and offers multiple input/output conversion modes.

Features

  • Low power
  • USB provides for power, control and firmware upgrades
  • Supports 3G Level A and B and allows for conversion between both
  • HDMI and SDI input locks
  • Features the following modes:
    • Auto Select (Active input to all outputs or if both inputs are active SDI to HDMI and HDMI to SDI)
    • HDMI IN to SDI OUT
    • SDI IN to HDMI OUT
    • SDI IN to HDMI and SDI OUT
    • HDMI IN to HDMI and SDI OUT

More Decimator Products

For more information on the full Decimator Design range, click here

Specifications

Input 1 x HDMI type A
1 x 3G/HD/SD-SDI
1 x Micro-USB port for power, control, and firmware updates
Output 1 x HDMI type A
1 x 3G/HD/SD-SDI
HDMI Format Support 1920 x 1080p 23.98/24/25/29.97/30/50/59.94/60
1920 x 1080i 50/59.94/60
1280 x 720p 25/29.97/30/50/59.94/60
625i 50
525i 59.94
SDI Format Support 3G-A or 3G-B:
SMPTE 424M at 2.97 and 2.967 Gb/s
1080p 50/59.94/60

HD:
SMPTE 292M/274M/296M at 1.485 and 1.435 Gb/s
1080p 23.98/24/25/29.97/30
1080PsF 23.98/24/25/29.97/30
1080i 50/59.94/60
720p 23.98/24/25/29.97/30/50/59.94/60

SD:
SMPTE 259M at 270 Mb/s
625i 50
525i 59.94
Power USB: 4.4 to 5.25 VDC
Uses under 2.5 W
Dimensions 6 x 7.4 x 2.3 cm / 2.4 x 2.9 x 0.9"
