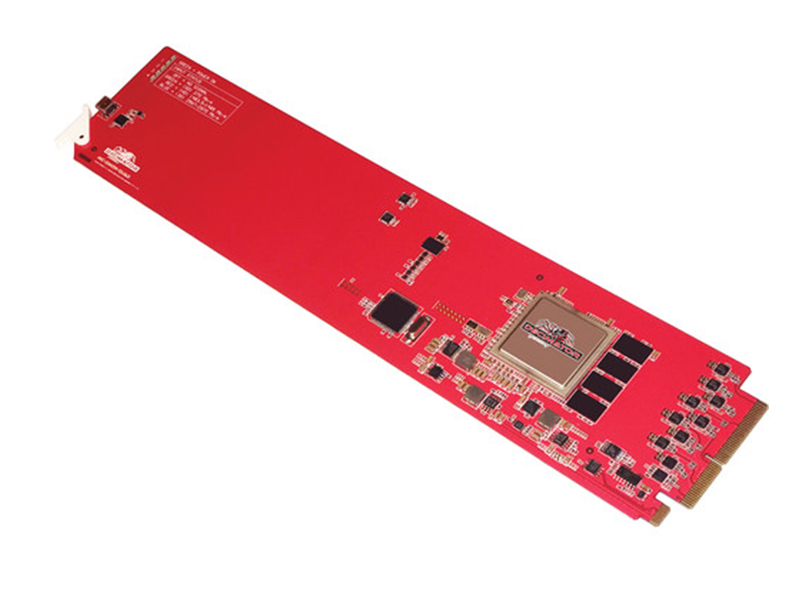

Decimator MC-DMON-QUAD 4-Channel 3G-SDI Multiviewer for openGear Platforms

Code: DEC/MC-DMON-QUAD
$405.00
The MC-DMON-QUAD from DECIMATOR is a 4-channel, 3G-SDI multiviewer for use in openGear frames. It supports a variety of resolutions and formats up to 1080p60 over 2.97 GB/s SDI, and can arbitrarily mix formats and aspect ratios.
Add to Cart

This item is already in your cart, click here to update quantities.

Found this item cheaper elsewhere? Let us know

ENQUIRE NOW

Got a question about this product?
Send us a message

Special Order Item

Usually ships in 1-2 weeks

Request ETA

The MC-DMON-QUAD from DECIMATOR is a 4-channel, 3G-SDI multiviewer for use in openGear frames. It supports a variety of resolutions and formats up to 1080p60 over 2.97 GB/s SDI, and can arbitrarily mix formats and aspect ratios. For SDI connectivity and tally, the card is compatible with the separately available DR1-10B1G rear.

Key Features

  • Four 3G-SDI inputs with automatic format detection
  • Each input can have a unique format - data rate, resolution, and frame rate
  • Supports unique aspect ratios per quadrant
  • Functions as 1 to 4 multiviewer or 4 to 1 multiplexer
  • Custom Layouts with various standard layouts
  • 16-Character UMD overlay per window with custom positioning and size
  • 8-Channel Audio Metering overlay per window with custom positioning and size
  • Audio ID overlay
  • Supports dynamic UMD and tallies via RS422/485 using the widely implemented TSL protocol (requires separately available DR1-10B1G connectivity module)
  • Tallies can be applied to either tally boxes (default) or border element
  • Tally boxes allows for up to four Tallies per window
  • Selectable output format in both Full-Screen MultiViewer mode
  • Low latency buffering enables connection of unsynchronized sources
  • Supports 3G level A and B on inputs and output, allowing conversion between 3G level A and B
  • In pass-through mode, the selected input is passed to both SDI outputs
  • Mini-USB port for firmware updates
  • Supports openGear DashBoard for control
