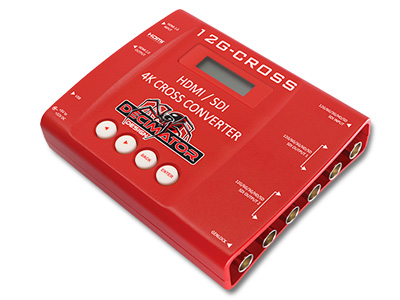

Decimator 12G-Cross HDMI / SDI 4K Converter

Code: DEC/12G-CROSS
$755.00

The 12G-CROSS allows either of the HDMI or SDI outputs to be simultaneously sourced from either the HDMI or SDI input or the new 4K scaling engine.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock

Out of stock - Call for availability

What's In The Box?

  • Decimator 12G-Cross
  • USB port for control and firmware updates
  • Metal Thread Locking DC Power Socket
  • Power Supply and USB Cable
  • The 12G-CROSS is a small low power portable converter encased in a solid robust aluminium case and does not contain a noisy fan. Allowing it to be used in almost any environment.

    Allows either of the HDMI or SDI outputs to be simultaneously sourced from either the HDMI or SDI input or the new 4K scaling engine.

    Supports 294 VESA formats via HDMI input

    The 4K scaling engine can be driven by either the SDI or HDMI input, supports horizontal and/or vertical flipping and can be locked to either the SDI, HDMI or Genlock input.

    • The 4K scaling engine can scale and/or frame rate convert between 351 input formats and 57 output formats. The supported formats are:
    • 294 VESA formats in via HDMI input
    • (3840 or 4096) x 2160p50/59.94/60 via HDMI or 12G-SDI
    • (3840 or 4096) x 2160p30/29.97/25/24/23.98 via HDMI or 6G-SDI
    • (1920 or 2048) x 1080p50/59.94/60 via HDMI or 3G-SDI (Level A or B)
    • 1920 x 1080i60/59.94/50 via HDMI or HD-SDI
    • (1920 or 2048) x 1080p30/29.97/25/24/23.98 via HDMI or HD-SDI
    • (1920 or 2048) x 1080psf30/29.97/25/24/23.98 via HD-SDI
    • 1280 x 720p60/59.94/50/30/29.97/25 via HDMI or HD-SDI
    • 1280 x 720p24/23.98 via HD-SDI
    • 720 x 480p59.94 or 720 x 576p50 via HDMI
    • 720 x 480i59.94 (NTSC) or 720 x 576 (PAL) via HDMI or SD-SDI

    That is an amazing 20,007 possible format conversions!

    The audio pairs in the SDI and HDMI outputs can be rearranged as required.

    Includes 4 x (3G/HD/SD)-SDI outputs, that allow it to be used as a 1 to 4 distribution amplifier.

    The 12G-CROSS is a truly portable product that incorporates an easy-to-use LCD screen and button control system. This gives easy access to the outstanding features without using complicated LED/button controls, dip switches, or having to carry around a computer to change a simple setting.

    More Decimator Products

    For more information on the full Decimator Design range, click here

    Specifications

    Input

    Video Input Connectors 1 x HDMI (HDMI 2.0) Female
    1 x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI / SD-SDI) Female
    Input Video Format HDMI
    DCI 4K: 23.98/24/25/29.97/30/50/59.94/60 fps
    1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
    1080i: 50/59.94/60 fps
    720p: 25/29.97/30/50/59.94/60 fps
    576p: 50 fps
    480p: 59.94 fps
    PAL: 50 fps
    NTSC: 59.94 fps
    SDI
    DCI 4K: 23.98/24/25/29.97/30/50/59.94/60 fps
    1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
    1080PsF: 23.98/24/25/29.97/30/50/59.94/60 fps
    1080i: 50/59.94/60 fps
    720p: 23.98/24/25/29.97/30/50/59.94/60 fps
    PAL: 50 fps
    NTSC: 59.94 fps
    Embedded Audio Input HDMI: 2-Channel (per Input)
    SDI: 2-Channel (per Input)

    Output

    Video Output Connectors 1 x HDMI (HDMI 2.0) Female
    2 x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI / SD-SDI) Female
    2 x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI / SD-SDI) Female (Loop Output)
    Output Video Format HDMI
    DCI 4K: 23.98/24/25/29.97/30/50/59.94/60 fps
    1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
    1080i: 50/59.94/60 fps
    720p: 25/29.97/30/50/59.94/60 fps
    576p: 50 fps
    480p: 59.94 fps
    PAL: 50 fps
    NTSC: 59.94 fps
    SDI
    DCI 4K: 23.98/24/25/29.97/30/50/59.94/60 fps
    1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
    1080PsF: 23.98/24/25/29.97/30/50/59.94/60 fps
    1080i: 50/59.94/60 fps
    720p: 23.98/24/25/29.97/30/50/59.94/60 fps
    PAL: 50 fps
    NTSC: 59.94 fps
    Embedded Audio Output HDMI: 2-Channel (per Output)
    SDI: 2-Channel (per Output)

    Standards

    Video Standard Compliance SMPTE 259M/274M/292M/296M/ST-2036
    HDCP Support None

    Connectivity

    Other I/O 1 x USB (Unspecified Type) Input
    1 x BNC Genlock

    Power

    Power Connector 1 x Barrel (5 to 32 VDC) Input

    General

    Dimensions 5.12 x 4.17 x 1.22" / 13 x 10.6 x 3.1 cm
    Warranty Length Limited 3-Year Warranty
