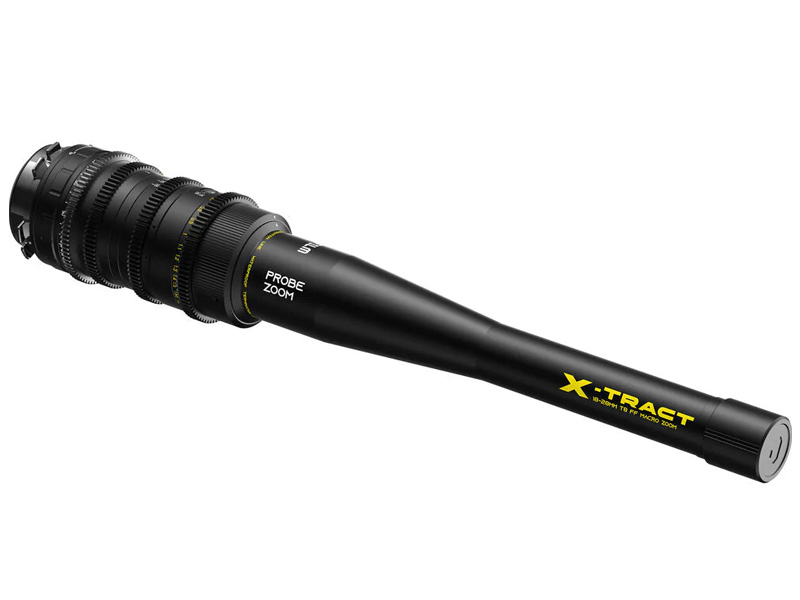

DZOFilm X-Tract 18-28mm T8 FF Probe Zoom Lens (0 Direct View, PL Mount)

Code: VGU/DZO-X1828A
$6,299.00

Offering a 100 to 73° field of view, the ARRI PL-mount X-Tract 0° 18-28mm T8 FF Probe Zoom Lens from DZOFilm brings innovative close-up capture to your productions.

ENQUIRE NOW

Got a question about this product?
Send us a message

Special Order Item

Usually ships in 1-2 weeks

Request ETA

Offering a 100 to 73° field of view, the ARRI PL-mount X-Tract 0° 18-28mm T8 FF Probe Zoom Lens from DZOFilm brings innovative close-up capture to your productions. This compact probe lens measures just 16.3" in length and has a front outside diameter of less than 1.2", making it ideal for tight setups. It features a relatively fast T8 maximum aperture, a 2.1:1 maximum magnification, and a 0.24" minimum focusing distance. This straight version offers a direct view; 90° and 360° periscope lens versions are available separately.


Wide 18-28mm Zoom

This 18-28mm zoom offers an ultrawide to more midrange reach, covering most common focal lengths.

The wide 100 to 73° field of view supports flexible capture.

Close Capture in Narrow Spaces

Craft creative shots using a maximum magnification ratio of 2.1:1.

The extremely close minimum focusing distance of around 0.24" lets you get super tight coverage of your subject.

The large depth of field and wide-angle focal length combine to enable close-ups in constricted areas while maintaining a safe distance from your subject.

Low-Distortion, High-Resolution Optics

The optical design has both ED (extra-low dispersion) and high-refractive index elements, suppressing chromatic and spherical aberrations.

Advanced coatings help minimize flaring and reflections.

Incorporates seven HRI (high-refractive-index) lens elements, producing more natural color.

±2% distortion control across the zoom range.

T8 Maximum Aperture

The relatively fast T8 maximum aperture is maintained throughout the zoom range.

Multilayer, antireflective coatings help ensure sharp, clear images even when shooting wide open.

Waterproof, Cine-Style Design

Focus, iris, and zoom functions all have 0.8 MOD cine-style gears for compatibility with follow focus and lens motor systems.

A lightweight yet rear-heavy design helps reduce vibrations while shooting.

The focus barrel offers a wide 300° rotation for precise focus pulls.

Waterproof and dustproof, this probe lens is also scratch and fog resistant.

Specifications
Maximum Aperture T8
Minimum Aperture T22
Lens Mount ARRI PL
Interchangeable Mount No
Lens Format Coverage Full Frame
Image Circle Not Specified by Manufacturer
Angle of View Full Frame
Horizontal: 100 to 73°
Focus Scales Metric
Filter Thread No
Zoom Ratio 1.56x
Minimum Focus Distance From Camera Sensor: 47.3 cm
From Front of Lens: 6 mm
Maximum Magnification Ratio 2.1:1
Diaphragm Blades Not Specified by Manufacturer
Image Stabilization No
Lens Mounting 1x 1/4"-20 (via Included Support Foot)
3x 3/8"-16 (via Included Support Foot)
Gear Standard Focus: 0.8 MOD
Iris: 0.8 MOD
Zoom: 0.8 MOD
Gear Rotation Focus: 300°
Electronic Communication No
Coating Multi- & Resistance-Coated
Environmental Resistance Water-Resistant (IP57)
Diameter Front: 29.6 mm
Length 415 mm
Weight 1.09 kg
