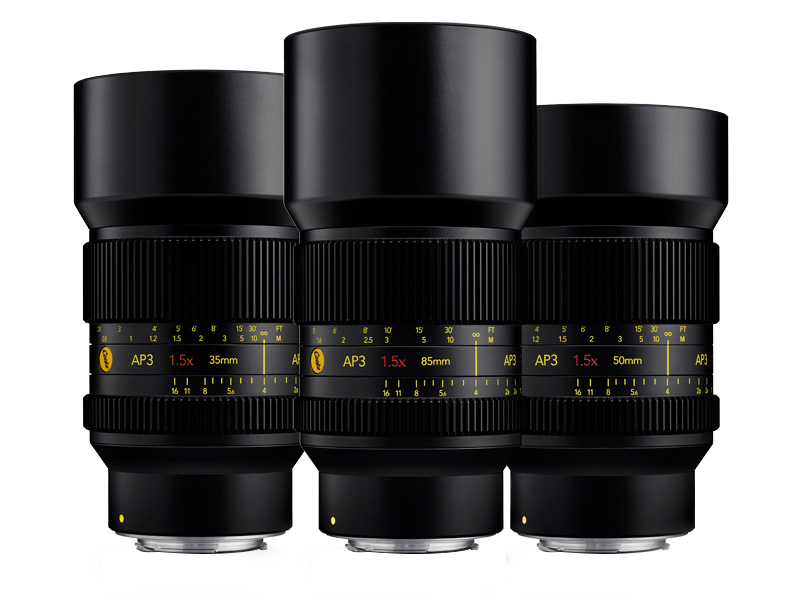

Cooke AP3 Full Frame Anamorphic Lenses

Code:

The new AP3 series brings the optical pedigree of Cooke's high-end anamorphic lineage into a compact, lightweight series built for modern mirrorless cameras. Balanced, purposeful and with the cinematic depth and character you'd expect from Cooke.

For purchasing information

Enquire Now

AP3 – Bring more to your story

Cooke AP3 is an exciting new prime lens building on Cooke's expertise in anamorphic lenses and the success of SP3.

Anamorphic is a format that demands to be taken seriously and rewards patience over novelty. AP3 brings the optical pedigree of Cooke's high-end anamorphic lineage into a compact, lightweight series built for modern mirrorless cameras. Balanced, purposeful and with the cinematic depth and character you'd expect from Cooke.

AP3 is democratizing anamorphic shooting making the kind of imaging historically reserved for high end productions more available. Here are some of the main ways Cooke achieve this:

  • Compact lens design

  • Interchangeable mounts

  • Balanced, natural optical character

  • Good close focus

AP3 borrows certain optical characteristics from Cooke's Anamorphic/i FF and Anamorphic/i S35 lenses, while borrowing some physical and mechanical properties from SP3.

Derived from Cooke's cine anamorphic optical philosophy:

  • Smooth defocus rendering

  • Strong central image structure

  • Controlled anamorphic artifacts

  • Natural highlight behaviour

Extension of Cooke's SP3 mechanical philosophy:

  • Interchangeable mounts

  • Compact housing and light weight

  • Focus and iris scales for handheld

AP3 details

  • 3 Focal Lengths - 35, 50, 85

  • Full Frame

  • T2.4 across the range

  • Dual focus scale

  • 9 bladed iris

  • M82 filter thread across the range

  • User interchangeable mount

    • E-mount (fitted as standard)

    • RF-mount

    • L-mount

    • M-Mount

1.5x squeeze factor

  • Allows for smaller size

  • Fits better with target sensors; less cropping on a 16:9 sensor

  • More controlled distortion

  • Effective field of view for 3 focal lengths

3 focal lengths

Designed as a creative tool that can grow over time. Each focal length act as a natural companion to one another but can also be used as a standalone lens making them the ideal focal lengths for owner operators.

  • Selective use for emphasis

  • Each focal length offers a different perspective

  • Integrate with Spherical lenses

  • Expand storytelling over time

Specifications

Specifications 35mm 50mm 85mm
T-Stop range T2.4 – T16 T2.4 – T16 T2.4 – T16
Angular rotation of iris scale 79° 79° 79°
Min. marked object distance 500 mm / 20 in 600 mm / 2 ft 900 mm / 3 ft
Close focus from lens front 329 mm / 13 in 440 mm / 15.7 in 713 mm / 28.1 in
Angular rotation to MOD endstop 160° 160° 160°
Length from front of lens to lens mount (E-Mount) 153 mm / 6.02 in 142 mm / 5.59 in 159 mm / 6.65 in
Max. front diameter 87 mm / 3.42 in 87 mm / 3.42 in 87 mm / 3.42 in
Max. angle of view – Horizontal (FF 36 x 24mm) 85° 64° 39°
Max. angle of view – Vertical (FF 36 x 24mm) 38° 27° 16°
Total weight (with lens mount) 1279 g / 2.8 lbs 1177 g / 2.6 lbs 1410 g / 3.1 lbs
Screw-in filter M82 x 0.75 M82 x 0.75 M82 x 0.75
Maximum format cover Full Frame, optimised for coverage of 43.3mm
Focus scales Dual Focus Non-Linear scales – Imperial and Metric, marked from infinity to MOD
Focus drive gear 99 teeth 0.8 Metric Module
Iris scales Non-Linear scale, whole and third stops marked
Iris drive gear 99 teeth 0.8 Metric Module
Mount E, RF, L, M (RF-mount, L-mount and M-mount ordered separately)
