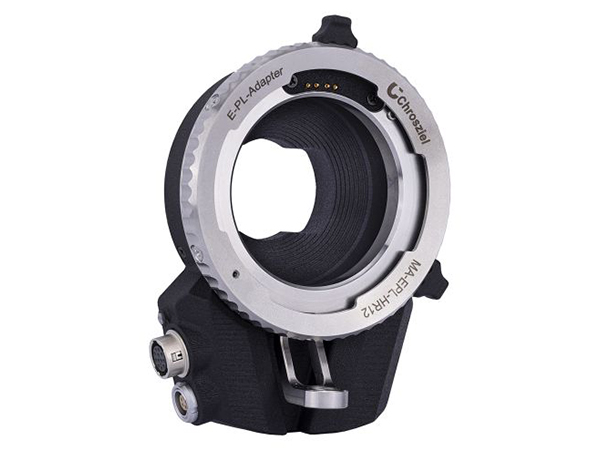

Chrosziel E-to-PL w/Built-in Electronics for Lens Meta Data

Code: ALF/MA-EPL-HR12
$8,545.00

The Chrosziel Meta Mount is a Sony E camera to PL lens “hot mount” adapter with metadata communication. Each mount has the required pin contacts necessary to transmit lens metadata through to the camera and conversely the contacts provide lens control through a 12-pin Hirose out connection to an ENG lens.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when Chrosziel E-to-PL w/Built-in Electronics for Lens Meta Data is back in stock.

What's In The Box?

  • 1x Meta Mount E-to-PL adapter (MA-EPL-HR12)
  • 1x MN-AB (power supply cable 12 Volt A/B D-Tap – 0B 5-pin Lemo)
  • 1x F55-A2-P-CAM
  • 1x Shim Set, E-Mount side
  • 1x USB Mini Adapter

The Chrosziel Meta Mount is a Sony E camera to PL lens “hot mount” adapter with metadata communication. Each mount has the required pin contacts necessary to transmit lens metadata through to the camera and conversely the contacts provide lens control through a 12-pin Hirose out connection to an ENG lens.

When the Meta Mount is used with cine lenses with LDS or Cooke/i Data the metadata such as iris setting, focus distance and

zoom focal length are transmitted through the adapter and appear in the viewfinder, on the monitor and are recorded in the video file for use in post processing.

When the Meta Mount is used with an ENG servo motor-controlled broadcast lens the Focus/Iris/Zoom servo’s can be controlled through the camera and are compatible with the Sony FX9 / FX6 / FX3 hand grips, RCP or camera’s web GUI. This allows for easy and full control of an ENG broadcast lens through a Sony E mount camera.

The Meta Mount is shimmable with the included shim set for the E-mount.

The Chrosziel Meta Mount is available for pre-order through the Chrosziel dealer network and is expected to begin shipping in late September.

Key Features

  • Sony E Mount Camera to PL mount Lens
  • Electronic contacts for metadata communication and lens control
  • Lens metadata displayed in camera and recorded to file
  • Shimmable E Mount
  • Full focus/Iris/Zoom control on servo motor ENG lenses
Specifications
Adapter Type E Mount camera to PL mount lens
Adapter Features Contact and electronics for Metadata communication
I/O 12-pin Hirose out for ENG lens control
USB Type min A-B (for firmware updates only)
5-pin Lemo for 12v power
Supported Socket 3/8th lens support socket
Power Power supply 10-16V (Lemo compatible 0B 5-pin)
Power consumption max. ca. 350mAh @ 12V
Part number MA-EPL-HR12
EAN number 4250618846934
