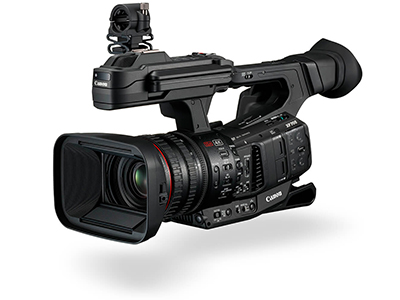

Canon XF705 4K HDR Camcorder

Code: CAN/XF705
The XF705 is Canon's first professional camcorder with the new XF-HEVC file format. It's a professional handheld 4K UHD camcorder with 10-bit 4:2:2 UHD (HLG/PQ) 4K internal recording XF-HEVC files to dual SD cards, plus UHD signal output over a single 12G-SDI interface or ethernet connection.

For purchasing information

Enquire Now

What's In The Box?

  • XF705 Camera Body
  • Shoulder pad
  • Lens hood with lens barrier
  • Battery pack BP-A30
  • Battery Charger CG-A20
  • AC Adapter CA-CP200 L
  • Mic holder
  • Eye-cup
  • Wireless Controller WL-D6000
  • Shoulder Strap SS-1200
  • The XF705 is Canon's first professional camcorder with the new XF-HEVC file format.

    It's a professional handheld 4K UHD camcorder with 10-bit 4:2:2 UHD (HLG/PQ) 4K internal recording XF-HEVC files to dual SD cards, plus UHD signal output over a single 12G-SDI interface or ethernet connection.

    Features

    4K UHD/50P 4:2:2 10-bit support with HEVC

    A 1.0-Type CMOS sensor and DIGIC processor produce professional 4K UHD 50P images in 4:2:2 10-bit, utilising Canon’s new and efficient XF-HEVC file format for smaller files that can be recorded direct to SD cards. Multiple recording formats are also supported including XF-AVC and high frame rates up to 120P.

    Simple HDR workflow

    XF 705 can record internally in two HDR formats, using HLG or PQ and features extensive HDR assist functions that aid the user to control the exposure for HDR shooting. Alternatively, for less time-critical productions, Canon Log3/BT.2020 support enables flexibility in a HDR Post-Production workflow.

    Advanced 12G-SDI and IP streaming

    With four times the bandwidth of 3G-SDI, the 12G-SDI terminal is capable of sending high quality uncompressed data over a single professional interface, while a built-in Ethernet port enables 4K IP streaming.

    Accurate and reliable autofocus

    With a 1.0-Type high resolution sensor, focus accuracy is critical. Therefore, the XF705 features Canon’s innovative Dual Pixel CMOS AF focusing system that provides features to ensure both autofocus and manual focusing is accurate and reliable, giving users the confidence to open-up the aperture, track moving subjects or focus pull with minimal effort.

    Wide angle L-series lens with 15 x zoom

    Image capture starts with outstanding optics and Canon’s L-Series lens delivers this in a compact, 3-ring, 15x wide angle zoom that incorporates a 5-axis IS, designed for exceptional 4K UHD capture.

    Professional Features

    Building on feedback from the hugely popular XF305, XF705 further enhances ergonomics and professional features, including HDR image monitoring using the built-in EVF and vari-angle LCD touchscreen. An improved grip and shoulder pad reduce strain and fatigue, making it an ideal platform for busy professionals on the move.

    4-inch vari-angle touchscreen

    With a large, high-resolution 1.23M dot, high luminance touchscreen LCD, XF705 is able to support accurate focusing, while the vari-angle screen is invaluable for easy viewing in multiple positions.

    Comfortable shoulder mount and angled grip

    A new removable shoulder pad and a more naturally positioned/angled hand grip, with a broadcast style zoom rocker, helps improve stability and reduces fatigue over longer shoots.

    Wide DR gamma

    The Wide DR gamma smoothly compresses highlight areas to offer a wide dynamic range. This enables beautiful skin tone and seamless tone gradations.

    4 Channel digital audio

    XF705 supports 2x switchable AES/EBU, analogue XLR interfaces and 4ch Audio, offering professional audio capabilities.

    Specifications

    Image Sensor

    Sensor 1.0-Inch type CMOS
    Total Pixels 13.4 MP
    Effective pixels per sensor 8.29 MP
    Minimum illumination(PAL/50.00Hz Mode) Approx. 1.3 lux (with 1/25 sec. shutter speed)

    Lens

    Zoom ratio 15 x Optical (UHD Mode) 30 x Advanced Zoom Mode (FHD Only)
    Focal Length 8.3 to 124.5 mm.
    35mm equivalent:
    Approx. 25.5 - 382.5 mm
    Dynamic IS Mode: Approx. 28.3 - 424.6 mm
    Minimum focus distance 10 mm at wide end, 60 cm across entire zooming range
    ND filter 3 densities: turret switched, motor-driven. ND 1/4, ND 1/16, and ND 1/64.
    Zoom control Via Zoom Rocker Switch, Lens Control Ring or Remote Control
    Zoom Speed Selectable. Variable or constant speed. Fast, Normal or Slow speed.
    Focus control Dual Pixel CMOS AF, Face Only, Face Priority, One-Shot AF, AF boosted MF, Focus Assist feature, Manual via Lens Ring,
    Iris control Manual via Iris Control Ring, Auto, Push Auto Iris
    Aperture 9-blade Iris, Max f/2.8 - 4.5
    Filter diameter 58mm
    Lens elements/groups 14 groups of 18 elements (double aspherical lenses and single Hi-UD lenses)
    Image stabilization system Optical system + Electronic Stabilisation
    Powered IS/Dynamic/Standard Mode/IS Off
    Digital zoom/Teleconverter Yes. 300 X Digital Zoom, 1.5/3.0/6.0 X Digital Teleconverter.

    Image Processor

    Type Dual DIGIC DV6
    Dynamic Range 800% in Canon Log3 / Wide DR Gamma
    Custom Picture Settings Preset:
    Normal 1 : BT.709 (Normal 1 (STANDARD) / BT.709 / Video)
    Normal 1 : BT.2020 (Normal 1 (STANDARD) / BT.2020 / Video)
    WideDR : BT.709 (Wide DR / BT.709 / Video)
    WideDR : BT.2020 (Wide DR / BT.2020 / Video)
    PQ : BT.2020 (PQ / BT.2020 / Video)
    HLG : BT.2020 (HLG / BT.2020 / Video)
    Canon Log 3 : BT.709 (Canon Log 3 / BT.709 / Neutral)
    Canon Log 3 : BT.2020 (Canon Log 3 / BT.2020 / Neutral)
    Gamma: PQ/HLG/CANON LOG3/WIDE DR/NORMAL 1(STANDARD/NORMAL2 (x4.0)/NORMAL3 (BT.709)/NORMAL 4 (x5.0)
    Colour Space: BT.2020/BT.709
    Custom Picture setting adjustments Black: Master Pedestal 0 ± 50/Master Black Red 0 ± 50/Master Black Blue 0 ± 50
    Black Gamma: Level 0 ± 50/Range -20 - 0 - +50/Point -20 - 0 - +50
    Low Key Satur: Activate On / Off/Level 0 ± 50
    Knee: Activate On / Off/Automatic On / Off/Slope -35 - 0 - +50/Point +50- 95 - +109/Saturation 0 - ±10
    Sharpness: Level -10 - 0 - +50/Detail Frequency 0 - ±8/Coring Level -30 - 0 - +50/HV Detail Bal. 0 - ±8/Limit 0 - ±50
    Noise Reduction: Level Off / Auto / 1 - 12
    Skin Detail: Effect Level Off / Low / Middle / High/Hue 0 - ±16/Chroma 0 - 16 - +31/Area 0 - 16 - +31/Y Level 0 - 16 - +31
    White Balance: R Gain 0 - +50/B Gain 0 - +50
    Colour Matrix Tuning: Gain 0 - ±50/Phase 0 - ±18
    (R-G) / (R-B) / (G-R) / (G-B) / (B-R) /(B-G) 0 - ±50
    Colour Correction
    Select Area Area A / Area B / Area A&B / Off
    Area (A/B) Setting Phase (0 - 31)/Area (A/B) Setting Chroma (0 - 16 - 31)/Area (A/B) Setting Area (0 - 16 - 31)/Area (A/B) Setting
    Y level (0 - 16 - 31)
    Area (A/B) Revision Level (0 - ±50)
    Area (A/B) Revision Phase (0 - ±18)
    Other Functions
    Over 100 % Through / Clip / Press
    High Dynamic Range Recording HLG / PQ supported
    Recording Media SD/SDHC/SDXC card (2 card slots)
    Class U3 recommended for 160/110 Mbps recording
    Recording time (64GB Card, approx.) Recording time (XF-HEVC , approx.)

    64GB card
    45 Mbps : 185 min.
    60 Mbps : 140 min.
    110 Mbps : 75 min.
    160 Mbps : 50 min.

    128GB card
    45 Mbps : 375 min.
    60 Mbps : 280 min.
    110 Mbps : 150 min.
    160 Mbps : 105 min.

    256GB card
    45 Mbps : 755 min.
    60 Mbps : 565 min.
    110 Mbps : 305 min.
    160 Mbps : 210 min.
    Recording file system FAT32/exFAT
    Recording file format MXF
    Internal Recording XF-HEVC: H.265/HEVC
    Resolution 3840 x 2160 / 1920 x 1080
    Colour sampling YCC 4:2:2 10-bit
    Bit rate: 3840 x 2160: 160 Mbps /110 Mbps (Long GOP)
    1920 x 1080: 60 Mbps /45 Mbps(Long GOP)
    XF-AVC: MPEG-4 AVC/H.264
    Resolution 1920 x 1080
    Colour sampling YCC 4:2:0 8-bit
    Bit rate 45 Mbps (Long GOP)
    External Recording Output (Varies according to Recording Option selected)
    XF-HEVC: Camera mode
    3840 x 2160: 59.94P/50.00P/29.97P/25.00P
    1920 x1080: 59.94P/50.00P/29.97P/25.00P
    PsF:1920 x1080: 59.94i/50.00i
    1920 x1080 (12G-SDI) 29.97PsF/25.00PsF
    1920 x1080 (HDMI) 59.94i/50.00i
    23.98P
    1920x1080  (23.98P)
    PsF --- 1920x1080 (59.94i)
    Simultaneous Recording Options 1. SD Card + SD Card: Relay or Simultaneous recording
    2. SD Card + External device: 4K (Internal) 2K (External)/HDR (Internal), SDR (External)
    Recording frame rate (PAL model) 50.00P/25.00P
    Slow/Fast motion (PAL/50.00Hz Mode) Yes.
    1920 x 1080:  50.00P: x0.5/25.00P: x0.25. Max bit rate 180 Mbps
    Interval Record No
    Frame Record No
    Pre Record (cache record) Yes. 3 Seconds
    Scan Reverse No
    Still Image quality 1920 x1080 JPEG DCF Exif. Ver 2.3
    Photo storage media SD Card. (Photo Function assigned to Assignable Button)

    Audio

    Recording Linear PCM: 24-bit / 48 kHz / 4 channels (4.5 Mbps). EBU/AES3 Standard; 48kHz/24-bit/2-ch
    Control Manual or Auto
    Reference Tone 1KHz, -12dB / -18dB / -20dB / Off
    Microphone level meter Yes

    Panel

    Type LCD Capacitive touch panel
    Size 4-inch (10.1 cm)
    Dots Approx. 1.23 million dots
    Adjustable Yes
    Touch Screen Focus Point Selection Yes. AF point selection, Face AF subject selection. Manual Focus: Focus Assist Reference Point Selection
    Focus Assist Yes. Focus Guide Function in MF
    Peaking Yes. Selectable Peaking Colour: Red / Blue / Yellow
    Zebra Yes. 70%, 100%
    Markers Yes. Horizontal (grey) / Horizontal (white) / Grid (grey) / Grid (white)

    CVF

    Type Wide Screen Organic EL display
    Size 0.46-inch
    Dots approx. 1.77 million dots
    Adjustable Yes
    Viewing Angle 100%
    Correction lens +2.0 - -5 dioptre

    Inputs/Outputs

    Audio in XLR 3-pin jacks (x2), balanced on Handle Unit. 3.5mm Stereo jack (unbalanced) on camera body
    Headphone output Yes. 3.5mm
    Video monitor output No
    HDMI Yes.
    USB Yes. Min-B and Hi-Speed USB supported
    SDI output Yes. BNC Connector.
    [HD]: SMPTE ST 292
    [3G]: SMPTE ST 424, 425
    [6G]: SMPTE ST 2081
    [12G]: SMPTE ST 2082
    Audio: SMPTE ST 299
    Output Impedance: 75 Ω
    Output Signal Level: 0.8 Vp-p
    Time code Yes. BNC. (IN/OUT)
    Genlock/Sync Yes. BNC. Function selected via menu
    LAN Yes. Ethernet connector (RJ45) (supports 1000 BASE-T)
    AV terminal No
    DC input Yes. 3.4mm Jack
    Remote Control Terminal Yes.
    REMOTE A : 2.5 mm stereo mini-mini jack (input only)
    REMOTE B : Round 8-pin jack (for RS-422)
    IP Streaming Capability Yes
    IP Streaming Output MPEG2-TS, HEVC/H.265; 3840 x 2160, 16 Mbps/9Mbps/59.94P/29.97P/50.00P/25.00P
    HEVC/H.265; 1920 x 1080, 9Mbps/4Mbps: 59.94P/29.97P/50.00P/25.00P
    MPEG2-TS, AVC/H.264; 1920 x 1080, 9Mbps/4Mbps: 59.94i/50.00i

    Exposure

    Exposure metering Standard (centre-weighted metering), Spotlight and Backlight . The Standard setting is used in the FULL AUTO mode.
    Exposure Compensation Centre ±8 levels (±2.0, ±1.75, ±1.5, ±1.25, ±1.0, ±0.75, ±0.5, ±0.25, ±0)
    AE Response function via the menu.
    Wave Form Monitor Yes
    Auto Exposure mode Full Auto Mode
    Auto Gain Control setting Yes
    Auto Gain Control limit -6 dB - OFF / 33 dB (1 dB increments)
    Gain setting Gain L/M/H
    System Frequency 59.94kHz (NTSC)/50.00kHz (PAL). User selectable.

    White Balance

    Settings Auto, Manual
    Preset Daylight:5600 K (Initial value: 5600 K / ±0 CC) Adjustable range: 4300 K - 8000 K / -5 CC - +5 CC
    Tungsten: 3200 K (Initial value: 3200 K / ±0 CC) Adjustable range: 2700 K - 3700 K / -5 CC - +5 CC
    Colour Temperature Setting: Adjustable range: 2000 K - 15000 K / -20 CC - +20 CC Initial value: 5600 K / ±0 CC
    Set A / Set B

    Shutter Speed

    Control Modes Auto, manual, Clear Scan, Slow, Angle ,Off
    Shutter speed (PAL) 1/2 - 1/2000 sec (depending on shooting option selected).
    Shutter Angle Yes; 11.25° - 360.00° (depending on shooting option selected).
    Slow Shutter (SLS) 50.00P: Auto slow shutter On: 1/25 to 1/500 sec. Auto slow shutter Off
    1/50 to 1/500 sec
    25.00P: Auto slow shutter On 1/12.5* to 1/500 sec.(*Display is 1/12.)
    Auto slow shutter Off: 1/25 to 1/500 sec.
    Clear Scan Yes

    Infrared

    Infrared shooting mode Yes
    Built-in IR lamp Yes, in Handle Unit

    Misc.

    Tally lamp Yes
    Colour Bars EBU / SMPTE (PAL); SMPTE / ARIB (NTSC)
    Accessory shoe Cold Shoe
    Custom Button Assignment Yes. 14 assignable buttons (Camera Mode), 82 assignable functions via menu.
    Wireless LAN standards IEEE802.11b/g/n/a (2.4 GHz/5 GHz)
    Supported Wi-Fi Functions Browser Remote. (Camera Mode) FTP file transfer (Media Mode)
    Encryption Open Encoding, Open WEP, Shared key/WEP, WPA, WPA2-PSK, or WPA2-PSK AES.
    Supported Browser for Remote Operation Internet Explorer 8 or later, Safari (iOS 9 or 10), Safari (MacOS), Android standard browser Android 4.4 - 6.0
    Remote Operation Control Features Aperture, ND control, Focus, focus adjustment, White balance, Shutter speed, Gain, Exposure compensation, Shooting mode, Zoom, Slot selection. The free memory remaining on the media, time code, remaining battery charge, etc. can be checked. Live View.
    Live view image Resolution Camera setting mode: 680 x 383
    Simplified setting mode: 284 x 160
    GPS Information (Optional Accessory) Location (latitude, longitude and altitude) as well as the GPS
    information while using Coordinated Universal Time (UTC) can be added to MP4 movies and photos. Also, based on this information, the satellite data acquisition status can be checked in camera mode.

    Time code

    Countup system Rec Run / Free Run
    Start value setting 00:00:00:00 - 23:59:59:29 (PAL 23:59:59:24)
    Drop Frame DF / NDF
    User BIT Type Setting (00 00 00 00 - FF FF FF FF) / Time / Date
    Supplied Lens cap, Lens hood with barrier, Mic holder unit (with screws), Shoulder strap (SS-1200), Wireless Controller, (WL-D6000),
    Lithium battery (CR2025), Compact Power Adapter (CA-CP200L), AC cable, Battery Pack BP-A30, Battery Charger (CG-A20)
    Optional Accessories (Includes items not currently on sale) Canon Battery Pack BP-A30/BP-A60
    Canon Battery Charger CG-A10/CG-A20
    Canon Compact Power Adapter CA-CP200L
    Canon Wireless Controller WL-D6000
    RC-V100 Remote Control Unit
    Canon Tele Converter TL-U58
    Canon Wide Attachment WA-U58
    Canon Shoulder Strap SS-1200
    Canon PROTECT filter 58 mm
    Canon ND4-L filter 58 mm
    Canon ND8-L filter 58 mm
    Canon GPS Receiver GP-E2
    Canon Remote Controller RC-V100
    Tripod Adapter TA-100
    Canon Interface Cable IFC-300PCU/S / IFC-400PCU

    Power Supply/Battery

    Power Consumption Approx. 20.8 W (3840x2160 XF-HEVC 160Mbps recording)
    Battery Pack 14.4 V DC, BP-A30 (Supplied), BP-A60 (Optional)
    Continuous Recording Time Approx. 125 min with BP-A30(3840x2160 XF-HEVC 160Mbps recording)
    Approx. 255 min with BP-A60(3840x2160 XF-HEVC 160Mbps recording)
    Mains Power 24V DC (Compact Power Adapter CA-CP200L, supplied)
    Dimensions Approx. 191 x 258 x 433 mm / 7.5 x 10.2 x 17.0 in. (including lens hood, eyecup and mic holder unit)
    Weight (camera only) Approx. 2660g
    Operating Temperature range Approx. 0 to 40 °C, 85% (relative humidity), Approx. -5 to 45 °C, 60% (relative humidity)
