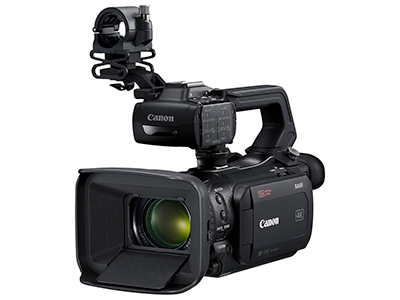

Canon XA55 UHD 4K Camcorder

Code: CAN/XA55
$3,450.00
The Canon XA55 Professional UHD 4K Camcorder is a compact, lightweight camera featuring UHD 4K capture, a 1" CMOS sensor, two XLR audio inputs, and one mini-HDMI, and one BNC 3G-SDI output which fits right into the ENG category for documentary or journalism-style productions.

ENQUIRE NOW

Got a question about this product?
Send us a message

Special Order Item

Usually ships in 1-2 weeks

Request ETA

Key Features

  • 8.29MP, 1" CMOS sensor
  • Integrated 15x optical zoom lens
  • 5-axis optical image stabilization
  • UHD 4K30 fps, HD 59.97 fps recording
  • Dual XLR, 3.5mm mic/line audio inputs
  • MP4 recording
  • DIG!C DV 6 processor
  • Two SD memory card slots
  • Mini-HDMI and 3G-SDI outputs

The Canon XA55 Professional UHD 4K Camcorder is a compact, lightweight camera featuring UHD 4K capture, a 1" CMOS sensor, two XLR audio inputs, and one mini-HDMI, and one BNC 3G-SDI output which fits right into the ENG category for documentary or journalism-style productions.

The XA55's optics include an integrated 15x HD optical zoom and a nine-bladed circular iris for more natural highlights, and wide DR gamma support for low-light recording. The camera's pro-style features include Dual Pixel and Contrast autofocus, fast- and slow-motion recording, full manual control, optical and electronic image stabilization, a 3" touchscreen LCD, user-assignable buttons, infrared mode, and a DIG!C DV 6 image processor with high sensitivity and low noise. The XA55 also has display monitoring features such as zebra, color bars, and test tone and a built-in neutral density filter mechanism offering ND4, ND16, and ND64 options.

The camera records UHD 4K30 and Full HD 1080p60 captured to dual SD card slots, and outputs to mini-HDMI and 3G-SDI ports. The dual SD card slots allow for automatic switching from one card to another, as well as simultaneous recording to both. The camera can output up to 1920 x 1080p 10-bit 4:2:2 video at 59.94 fps via its mini-HDMI and 3G-SDI outputs. On the audio side, the XA55 features up to four channels of LPCM audio with manual/automatic recording levels, two XLR inputs with phantom power, and a 3.5mm stereo mini input. It features a built-in stereo microphone as well as a headphone jack. The camera's functions can also be controlled by the separately available RC-V100 remote control.

Specifications

Imaging

Image Sensor 1-Chip 1" CMOS Sensor
Sensor Resolution 4268 x 3148 (13.4 MP)
Effective Sensor Resolution 3840 x 2160 (8.29 MP)
Minimum Illumination 1.7 lux at 1/30 Shutter Speed
0.1 lux at 1/2 Shutter Speed
White Balance Range 2000 to 15,000K

Lens

Focal Length 8.3 to 124.5mm
35mm Equivalent Focal Length 25.5 to 382.5mm
Optical Zoom Ratio 15x
Maximum Aperture f/2.8 to 4.5
Minimum Focusing Distance Wide: 0.4" / 1.0 cm
Entire Zoom Range: 23.6" / 60.0 cm
Filter Size 58 mm
Image Stabilization Optical
Digital
Focus Control Autofocus
Manual Focus

Camera

Shutter Speed 1/ to 1/2000 sec
Built-In ND Filter Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters
Built-In Microphone Type Stereo
Recording Media 2 x SD (Unspecified Type) UHS-I Card Slots

Recording

Broadcast System Compatibility NTSC
Recording Modes H.264/MP4 4:2:0 8-Bit:
3840 x 2160p at 23.98/24/29.97/30 fps
1920 x 1080p at 23.98/24/29.97/30/59.94/60 fps (35 to 45 Mb/s)
1280 x 720p at 59.94/60 fps (8 Mb/s)
XF-AVC 4:2:0 8-Bit:
3840 x 2160p at 23.98/24/29.97/30 fps
1920 x 1080p at 23.98/24/29.97/30/59.94/60 fps
Audio Recording MP4: 2-Channel 16-Bit AAC Audio
MP4: 4-Channel 16-Bit LPCM Audio
XAVC: 4-Channel 24-Bit LPCM Audio

Interfaces

Video Connectors 1 x Mini-HDMI (HDMI 2.0) Output
1 x BNC (3G-SDI) Output
Audio Connectors 2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input
1 x 1/8" / 3.5 mm Stereo Headphone Input
1 x 1/8" / 3.5 mm Stereo Mic Level Input
Other I/O 1 x USB Mini-B Output
1 x 2.5 mm Input

Display

Display Type LCD
Screen Size 3"
Touchscreen Yes
Screen Resolution 460,000 Dots

EVF

EVF Display Type LCD
Screen Size .24"
EVF Resolution 1,560,000 Dots

Power

Battery Type Canon BP-8 Series
Power Connectors 1 x Proprietary (8.4 VDC)

Environmental

Operating Temperature 32 to 104°F / 0 to 40°C (Recommended)
Storage Temperature 23 to 113°F / -5 to 45°C
Operating Humidity 85%
Storage Humidity 60%

General

Accessory Mount 1 x Cold Shoe Mount
Tripod Mount None
Dimensions 8.4 x 4.3 x 3.6" / 21.34 x 10.92 x 9.14 cm (Without Protrusions)
10.4 x 4.9 x 3.6" / 26.42 x 12.45 x 9.14 cm (With Protrusions)
Weight 2.1 lb / 953 g
