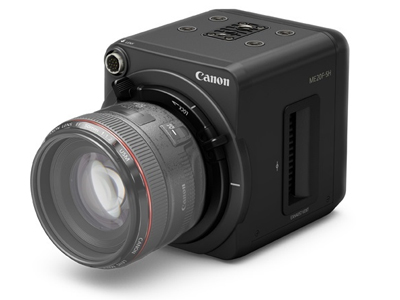

Canon EOS ME20F-SH Camera Body

Code: TBC

The ME20F-SH is a professional multi-purpose video camera, capable of capturing full colour images in extremely low-light environments. Boasting an industry leading unrivalled maximum ISO in excess of 4 million (+75dB), the ME20F-SH is designed to be as small as possible whilst delivering high quality, professional grade Full HD footage.

For purchasing information

Enquire Now

Overview
Specifications

Low Light Capability

The ME20F-SH delivers exceptionally high sensitivity to make possible the capture of Full HD video with a minimum subject illumination of less than 0.0005 lux (at maximum 75 dB gain setting, equivalent to an ISO sensitivity of over 4 million).

Ultra-high-sensitivity

The ME20F-SH’s CMOS sensor has pixels measuring 19 μm square, which is more than 7.5 times the surface area of the pixels on the CMOS sensor featured in Canon’s top-of-the-line EOS-1D X.

Interchangeable Lenses

This mulitpurpose camera employs the same EF mount (Cinema Lock type) as Canon’s SLR cameras and Cinema EOS System-series professional digital cinematography cameras enabling wide range of imaging possibilities.

Versatile

The ME20F-SH Supports various standard video-recording interfaces employing output-only 3G/HD-SDI and HDMI terminals enabling users working on location to output video via a single cable to a variety of peripheral equipment, including external recorders and monitors.

ME20F-SH Key features:

Ultra low-light performance at ISO 4million

High quality Full HD 1080p/1080i/720p output

Flexible control with auto and custom settings

Compatible with a wide range of EF lenses

Remote control of camera settings and built-in ND and IR cut filters possible

Small and lightweight for ease of integration

Specifications

35mm full-frame CMOS sensor (single), effective pixel count: approx. 2.26 million pixels
Minimum subject illumination: Less than 0.0005 lux (at maximum 75 dB gain setting, equivalent to an ISO sensitivity of over four million)
Pixel Pitch: 19 Microns
Lens mount: Canon EF mount (Cinema Lock type)
Optical filters: ND filter with two density levels (motorized manual / auto) IR cut filter (motorized manual)
Frame rates: 59.94P / 59.94i / 50.00P / 50.00i / 29.97P / 25.00P / 23.98P
Gamma: Canon Log, Wide DR

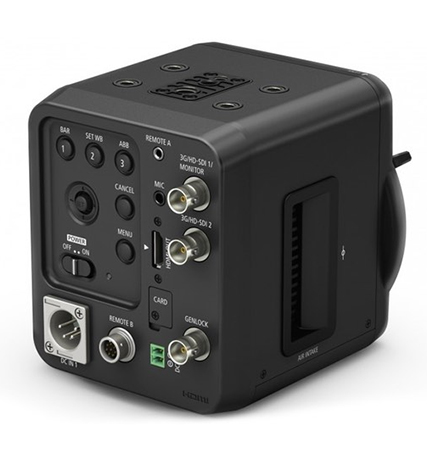

Two 3G / HD-SDI BNC jacks (1080P / 1080i / 720P)
One HDMI connector
Genlock terminal: BNC jack (input only)
Remote terminal: φ2.5mm stereo mini-mini-jack (Canon-proprietary protocol), Round 8-pin jack (for RS-422, Canon-proprietary protocol)
Microphone terminal: φ3.5mm stereo mini-jack
AF: One-shot AF
Auto-exposure: Combined interlocking (iris / gain / ND / shutter)
White balance: AWB, color-temperature setting (setting range: 2000 to 15000 degrees Kelvin), natural light, light bulb, Setting A, Setting B
Digital teleconverter: 2x, 4x
Power input: 4-pin XLR DC11-17V, Terminal block 2-pin jack DC11-17V
Operating temperature: 32 degrees F (0 degrees C) to 104 degrees F (40 degrees C)
Body dimensions: Approx. 4 inches (102mm) (w) x 4.5 inches (116mm) (h) x 4.4 inches (113mm) (d) (excluding protrusions)
Weight: Approx. 2.4 lbs (1.1 kg) (body only)
