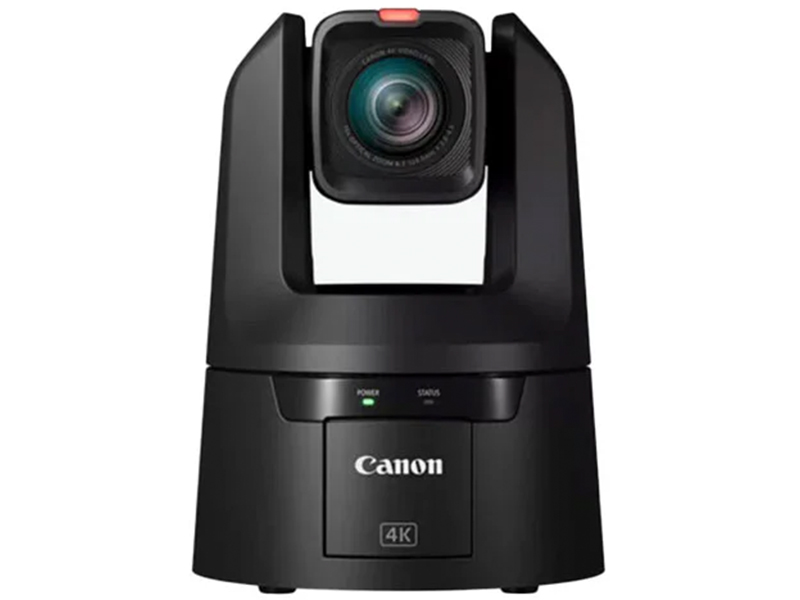

Canon CR-N700BK 4K 60p Indoor PTZ Remote Camera w/ 1" Sensor (Black)

Code: CAN/CR-N700BK
$11,725.00

Harness the power of a 1.0-type 4K sensor and DIGIC DV7 processor with Dual Pixel AF. A 15x optical zoom (30x in Full HD) captures productions in exceptional detail, even in Night Mode.

ENQUIRE NOW

Got a question about this product?
Send us a message

Special Order Item

Usually ships in 1-2 weeks

Request ETA

Harness the power of a 1.0-type 4K sensor and DIGIC DV7 processor with Dual Pixel AF. A 15x optical zoom (30x in Full HD) captures productions in exceptional detail, even in Night Mode. Stream 4K60P and HDR quality broadcast footage via a wide range of IP protocols and automate your productions using Auto Tracking and Auto Loop functions.



4K 60P Image Quality

Captures exceptional broadcast level imagery in up to 4K UHD 60P, 4:2:2 10-bit

1.0-inch Type CMOS sensor

Produces incredible depth of field with high sensitivity and low noise, even in low light

DIGIC DV7 Processor

Powerful image processing for exceptional results

15x Optical and 30x Advanced zoom

Image stabilised 15x Optical zoom in 4K or up to 30x Advanced zoom in Full HD

Region of Interest cropping

Intelligent cropping of a feed enables a single camera to produce two video feeds up to FHD

HDR Imagery

Exceptional 4K HDR imagery for PQ or HLG formats, plus Canon Log 3 and Wide DR

Dual Pixel CMOS AF with EOS iTR AF X

Smooth, fast, and accurate autofocus with ‘deep learning’, head detection, eye detection and tracking

Inbuilt Protocols

Including NDI|HX*, SRT, FreeD, RTMP/RTMPS, RTP/RTSP, Canon XC and Standard Communication protocol

* NDI is a trademark or registered trademark of NewTek, Inc. in the United States and other countries

Flexible connectivity

A host of connectors such as 12-G-SDI, 3G-SDI, HDMI, Gen lock and Dual XLR audio inputs

Auto Tracking

Free with latest firmware, take advantage of Auto Tracking App RA-AT001(Lite) to follow a subject automatically. A paid version (RA-AT001) unlocks extra versatility.

Auto Loop functionality

Programme repeated camera pan, tilt and zoom movements on a loop via an additional paid application

4K detail for imaging excellence

A 1.0-Type CMOS sensor and DIGIC DV7 processor deliver 4K UHD 60P imagery in up to 4:2:2 10-bit, 12G-SDI and HDMI for broadcast-standard image quality, plus 4K60P over IP.

Class-leading optical precision

The CR-N700’s high-performance lens has a 15x optical zoom (25.5mm - 382.5mm, 35mm equivalent) plus a 30x Advanced Zoom when shooting in Full HD. And when conditions are unstable, Canon’s renowned Image Stabilizer captures optimal footage.

Accurate 4K Auto Tracking*

Unlock the potential to track the main speaker with face/header detection as they move around the stage, automatically. Capable of multiple adjustments, settings such as composition size, tracking sensitivity, exclusion zones, priority display area and more mean the ideal tracking set-up can be easily achieved.

*Free Auto Tracking App RA-AT001(Lite) available via new FW, 1.4.0 or later. Paid license is necessary for full functionality of auto tracking

Intelligent Auto Loop*

Programme repeated camera pan, tilt and zoom movements to track repeated live action, consistently and accurately thanks to Canon’s advanced drive mechanism. Experience the flexibility of programming movements with the ability to initialise a loop back and forth, meaning no camera operator is required. Five automatic movement routes can be registered and are easy to create or customise thanks to an easy setting UI.

*Requires paid licence

Multiple protocols for seamless integration

The CR-N700 features SRT and NDI|HX1 that produce high quality video streams for broadcasters. RTMP/RTMPS, RTP/RTSP are included, along with Canon XC and Standard communication protocols, plus FreeD for integration into virtual productions.

Powerful HDR imagery and low light capture

Achieve stunning HDR imagery with direct recording into either PQ or HLG formats. A range of custom picture settings includes Canon Log 3 and Wide Dynamic Range to match your image with other Canon cameras.

Crop function – single camera, two video feeds

Select and extract a point of interest via a separate feed. The chosen area can then be output as a main or secondary signal and up to two cropped areas can be set in FHD.

Night Mode

Capture footage in near-darkness thanks to IR Mode, which extends the spectrum visible to the camera.

Comprehensive connectivity

Connect flexibly with 12G-SDI, HDMI or IP (PoE++) all supporting 4K60P, as well as professional dual XLR audio inputs. CR-N700 also includes 3G-SDI and GEN-LOCK.

Smooth and precise control

The CR-N700 has a high-precision drive mechanism for fine Pan and Tilt movement as slow as 0.1°/s. Compatible with the RC-IP100 controller and Remote Camera Control Application controllers, it can also be configured with selected third-party units.

PTZ Remote Camera Compatibility

Canon PTZ remote cameras are compatible with a wide variety of third-party software solutions. Discover which cameras work seamlessly with specific third-party software.

Camera
Image Sensor Type 1.0 (1.0 in.) single-plate CMOS sensor
Effective Pixels approx. 8.29 megapixels (3840 x 2160)
Lens 15x optical zoom, 9-bladed iris diaphragm
Optical Zoom 15x optical zoom (30 x with advanced zoom)
Digital Zoom 20x digital zoom
Focal Length 8.3 – 124.5 mm, f/2.8 – 4.5,
35mm equivalent focal length:
approx. 25.5 (W) – 382.5 mm (T)
Angle of View Horizontal: 73.0 (W) – 5.7° (T)
Vertical: 45.2° (W) – 3.2° (T)
Minimum Subject Illumination Approx. 3.0 lux (with 59.94 Hz frame frequency, 1/60 sec. shutter speed, 59.94P frame rate, and 21 dB gain)
Approx. 2.5 lux (with 50.00 Hz frame frequency, 1/50 sec. shutter speed, 50.00P frame rate, and 21 dB gain)
Shutter Speed 1/3 – 1/2000 sec. (specific values depend on the frame frequency and frame rate)
Iris Manual/Automatic aperture
Gain -6.0 dB - 36.0 dB
ND Filter Built-in (Off, 1/4, 1/16, 1/64), motor operated
Night Mode (IR Cut Filter Off) Yes
White Balance AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K1, tungsten lamp: 3,200 K2),
Focus Focus mode: Manual, AF-boosted MF, Continuous AF, Face AF, Tracking
AF type: Dual Pixel CMOS AF, Contrast AF
Detection: Face Detection, Eye Detection
Minimum Focusing Distance 1 cm at wide end, 60 cm across entire zooming range
Gamma BT.709 Normal, BT.709 Wide DR, BT.709 Standard, Canon Log 3, Canon 709, PQ, HLG
Pan and Tilt Pan operation range: Horizontal ±170°
Pan operation speed: 0.1° – 100°/sec.
Tilt operation range: Vertical -30° – +90°
Tilt operation speed: 0.1° – 100°/sec.
Server
Video Output Format: SDI [12G-SDI]
3840 x 2160:
59.94P/29.97P/23.98P/50.00P/25.00P (4:2:2 10 bit)
1920 x 1080: 59.94P/59.94i/29.97P/29.97PsF/23.98P/50.00P/50.00i/25.00P/25.00PsF (4:2:2 10 bit)
1280 x 720: 59.94P/50.00P (4:2:2 10 bit)
720 x 576: 59.94i/50.00i (4:2:2 10 bit)
[3G-SDI]
1920 x 1080: 59.94P/59.94i/29.97P/23.98P/50.00P/50.00i/25.00P (4:2:2 10 bit)
1280 x 720: 59.94P/50.00P (4:2:2 10 bit)
720 x 576: 59.94i/50.00i (4:2:2 10 bit)
Video Output Format: HDMI 3840 x 2160:
59.94P/29.97P/23.98P/50.00P/25.00P (4:2:2 10 bit)
1920 x 1080: 59.94P/59.94i/29.97P/23.98P/50.00P/50.00i/25.00P (4:2:2 10 bit)
1280 x 720: 59.94P/50.00P (4:2:2 10 bit)
720 x 576: 59.94i/50.00i (4:2:2 10 bit)
Video Output Format: IP [Frame frequency 59.94 Hz]
3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360:
59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
[Frame frequency 29.97 Hz]
3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360:
29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
[Frame frequency 50.00 Hz]
3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360:
50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
[Frame frequency 25.00 Hz]
3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360:
25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
[Frame frequency 23.98 Hz]
3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360:
23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit)
*59.94 fps/50.00 fps is only when H.265.
– JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected)
Resolution: 1280 x 720
59.94/29.97 Hz: 14.99 fps,
50.00/25.00 Hz: 12.50 fps,
23.98 Hz: 11.99 fps
Video Output Format: USB No
Video Transmission Protocol Canon XC, RTSP/RTP, NDI3|HX, RTMP/RTMPS, Standard Communication (Serial), Standard Communication (IP), SRT, FreeD
Preset Number of presets: Max. 100 (including home position)
Interface
Communication Control LAN, Wi-Fi, Serial, IR
Network Terminal LAN x 1, RJ45, 1000Base-T
SDI OUT Terminal 12G-SDI OUT Terminal
BNC jack (output only) x 1, 0.8 Vp-p/75 Ω,
SMPTE ST 2082, 2081, 424, 425, 292, 259, 299, 272 compliant
Embedded audio, Time code (VITC/LTC)

6G-SDI OUT Terminal
No

3G-SDI OUT Terminal
BNC jack (output only) x 1, 0.8 Vp-p/75 Ω,
SMPTE ST 424, 425, 292, 259, 299, 272 compliant
Embedded audio, Time code (VITC/LTC)
GEN-LOCK Terminal BNC jack (also serves as the SYNC OUT terminal)
TIME CODE Terminal BNC jack (for both input/output)
HDMI OUT Terminal HDM connector (Type A), both video and audio are output only
RS-422 Terminal RJ45 connector x 1
INPUT 1/INPUT 2 Terminals XLR 3-pin jack (balanced) ((1) shield, (2) hot, (3) cold), two lines
Sensitivity (MIC): -60 dBu (manual volume center, -18 dB full scale)
Sensitivity (LINE): +4 dBu (manual volume center, -18 dB full scale)
Supply Voltage: 48 V DC (Bias resistance: 6.8 kΩ)
MIC Terminal Ï• 3.5 mm stereo mini-jack (unbalanced; supports plug-in power)
Sensitivity (MIC): -72 dBu (manual volume center, -18 dB full scale)
Sensitivity (LINE): -10 dBV (manual volume center, -18 dB full scale)
Supply Voltage: 2.4 V DC (Bias resistance: 2.2 kΩ)
USB Terminal No
Physical Features
Operating Environment Temperature
0°C – +40°C (+32°F – +104°F)
Humidity
10% – 90% (without condensation)
Power Supply PoE: PoE++ power supply via LAN connector (IEEE802.3bt compliant)
– PoE and PoE+ cannot be used
External power source: 12 V DC
Power Consumption PoE++ Input: Approx. 37.4 W4/1.2 A max. (body only)
DC Input: Approx. 36.7 W/3.5 A max. (body only)
Dimensions (W x H x D) Approx. 200 x 269 x 208 mm (excluding protrusions)
Weight Approx. 4.4 kg (9.7 lbs) [Body Only]
Noise NC 30 or less
