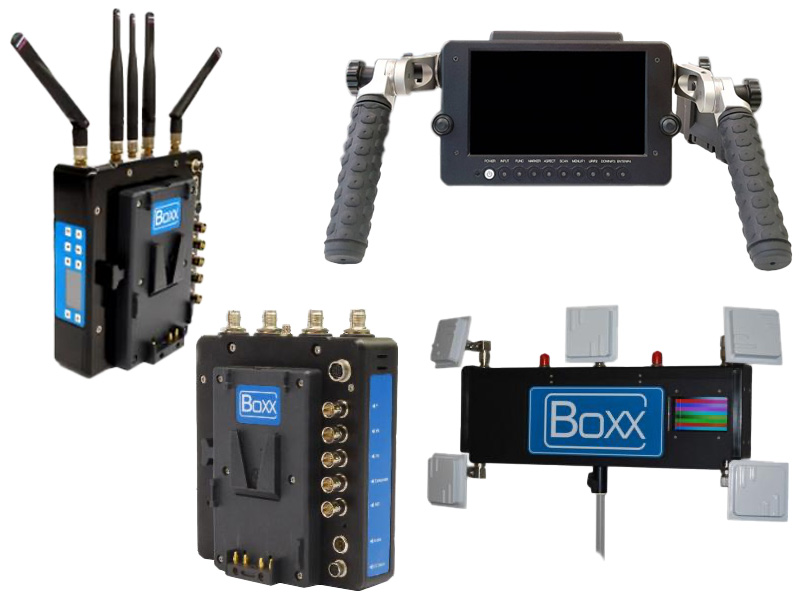

Boxx Meridian Transmitter/Receiver System

Code: BOX/BOX-S-M

Boxx TV provides revolutionary microwave broadcast equipment designed around ease of use by technical and industry professionals.

For purchasing information

Enquire Now

Boxx TV provides revolutionary microwave broadcast equipment designed around ease of use by technical and industry professionals.

Traditionally, delivering a perfect picture through walls and floors with digital microwave links has been the exclusive preserve of High End Production companies and large Outside Broadcast firms. With their radical new technology, Boxx is revolutionising the industry by providing the same reliability at a fraction of the cost.

This ground-breaking technology has been especially designed for the needs of live-to-air broadcasts, ENG operations and is also ideal for Steadicam, portable field monitoring or video-assist applications.

Having microwave broadcast systems in operation all over the world Boxx TV understands the demands of a global market. Boxx TV prides themselves on being at the forefront of innovations and introducing new technologies into the industry. In 2005 Boxx TV won an Emmy for Engineering Excellence

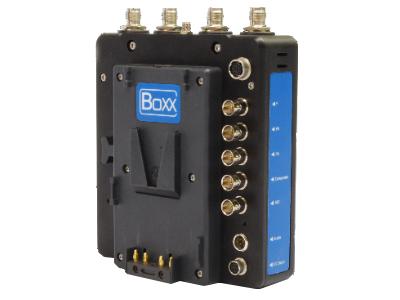

Meridian Transmitter

The Meridian wireless microwave broadcast system is designed for high quality, uncompressed zero delay HD and SD live transmission, where extremely low latency is essential. Meridian transmitters have been specifically designed to be lightweight, compact and are available with either an Anton Bauer, V-lok battery mount or without battery plates for mounting on DV, Red or film camera.

Key Features

  • Zero frame latency (<1 millisecond)
  • HDSDI, SDI, component, composite video input
  • 5.1-5.9GHz licence, and licence exempt band
  • Extremely high quality 4:2:2 video transmission
  • Removable antennas
  • Lightweight design
  • Switch between Anton Bauer and V-lok plate

Meridian Portable Receiver

Meridian portable receivers are designed to be lightweight, compact and are available with either an Anton Bauer or V-Lok battery mount. The antenna configuration of the portable receivers allows the operator to utilise a range of different antennas to optimise performance or use as a portable, wireless director’s monitor.

Key Features

  • Zero frame latency (<1 millisecond)
  • 5.1-5.9GHz licence, and licence exempt band
  • Extremely high quality 4:2:2 video transmission
  • Manual or automatic channel select
  • Switch between multiple cameras
  • Simultaneous HD downconverter/scaler
  • Lightweight design
  • Headphone monitoring

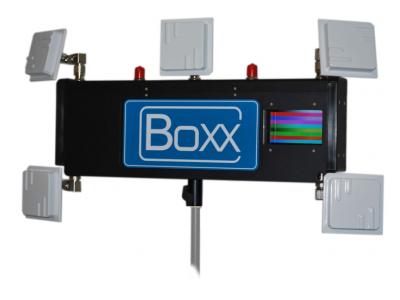

Meridian Broadcast Receiver

The Meridian broadcast receivers are ideal for multi camera production, sporting arenas, stage and studio productions, and live-to-air broadcasts. Broadcast receivers use an array of five receive antennas to enhance performance and reliability. With a range of accessories developed for performance and flexibility, this receiver can be tailored to meet a variety of production requirements.

Key Features

  • Zero frame latency (<1 millisecond)
  • 5.1-5.9GHz licence, and licence exempt band
  • Extremely high quality 4:2:2 video transmission
  • Manual or automatic channel select
  • Simultaneous HD down-converter/scaler
  • Signal strength meter on each antenna
Boxx Meridian Camera Link Transmitter
Latency <1 millisecond
Video output SDI, HDSDI, component SD/HD, composite
Format SDI, PAL, NTSC, HDSDI up to 1080 60i
Audio output 2 channels embedded or balanced analogue line level
Transmission method Pixel Prioritisation Protocol
RF Power Output Up to 100mW
Modulation OFDM
Bandwidth 20MHz
Frequency 5.1GHz - 5.9GHz
Antennas 4 x RP-TNC connectors
Firmware Upgradable via USB port
Control Configuration via LCD touch screen
Power 6.5 - 32V DC 9 Watts on 4 pin Hirose
Size Approx. 145mm x 155mm x 38mm
Weight 998g/1kg
Temperature Range -5° to 50° C
Made in United Kingdom
Boxx Meridian Camera Link Portable Receiver
Latency <1 millisecond
Video output SDI, HDSDI, component SD/HD, composite
Format SDI, PAL, NTSC, HDSDI up to 1080 60i
Audio output Embedded and 2 channels balanced line analogue level (simultaneous output)
2 headphone monitor outputs
Downconvertor HD format converted to PAL or NTSC
Transmission method Pixel Prioritisation Protocol
Modulation OFDM
Bandwidth 20MHz
Frequency 5.1GHz - 5.9GHz
Range Up to 60 metres with on-board antennas
Up to 800 metres with hi-gain antennas for video assist
Antennas 5 x RP-SMA connectors
Channel select Automatic or manual
Firmware Upgradable via USB port
Control Configuration via LCD touch screen
Power 6.5 - 32V DC 9 Watts on 4 pin Hirose
Size Approx. 145mm x 155mm x 38mm
Weight 998g/1kg
Temperature Range -5° to 50° C
Made in United Kingdom
Boxx Meridian Transmitter/Receiver System
Latency <1 millisecond
Video Output SDI, HDSDI, component SD/HD, composite
Format SDI, PAL, NTSC. HDSDI up to 1080 60i
Audio Output Embedded and 2 channels balanced analogue line level
Down-converter Any HD format simultaneously converted to PAL or NTSC
Transmission Method Pixel Prioritisation Protocol
Modulation OFDM
Bandwidth 20MHz
Frequency 5.1-5.9GHz
Antennas 5 receive N-TYPE
Firmware Upgradable via USB port
Range Up to 150 metres line of sight for Broadcast
Up to 800 metres video assist
Channel Select Automatic or manual
Control Configuration via LCD touch pad
Power 6.5 -18V DC, 4 pin XLR, 9 watts
Antenna Ports N-type
Temperature Range -5° to 50° C
Mounting Light stand spigot or 1 unit rack mount
Made in United Kingdom
