Camera Features |
Sensors |

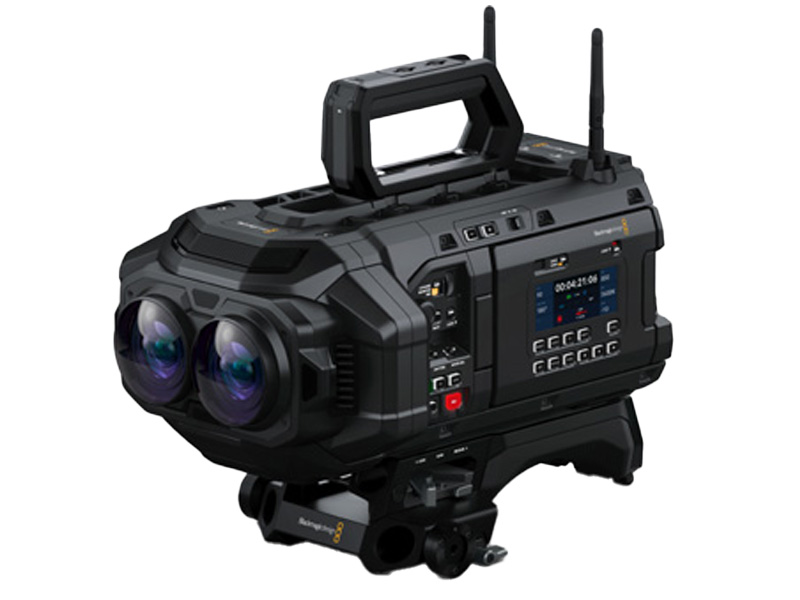

2 x 8K sensors.
Left eye and right eye. |
Effective Sensor Size |
23.66 mm x 20.88 mm each. |
Pixel Pitch |
2.9 microns. |
Lens |
Fixed focal length, 180°+ field of view, stereo lens pair. |
Dynamic Range |
16 Stops. |
Shooting Formats |
8160 x 7200 x 2 (stereo immersive) |
Frame Rates |
Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 and 90 fps supported. |
High Speed Frame Rates |
8K stereo immersive up to 90 fps. |
Built in ND Filters |
Button activated ND filters with clear, 2‑stop, 4‑stop, 6‑stop and 8‑stop IR ND filters. |
Iris Control |
Fixed iris. |
Screens |
2 x Monitoring Screens.
1 x Camera Status Screen. |
Monitoring Screen Dimensions |
5 inch. |
Monitoring Screen Resolution |
1920px x 1080px. |
Monitoring Screen Brightness |
1500 nits. |
Monitoring Screen Type |
LCD capacitive touchscreen. |
Monitoring Options |
Left Eye, Right Eye, Punch In. |
Metadata Support |
Discrete left and right eye optical calibration metadata. Automatic recording of camera settings and slate data such as project, scene number, take and special notes. |
Controls |
Touchscreen menus on 5 inch screen. Push buttons for other controls. 7 assignable shortcut keys plus 3 assignable shortcut keys on PYXIS Monitor. Fischer connector for remote run/stop. |
Timecode Clock |
Highly accurate timecode clock. Less than 1 frame drift every 8 hours. |
Connections |
Total Video Outputs |
2 |
SDI Rates |
1.5G, 3G, 6G, 12G. |
Analog Audio Inputs |
2 x XLR analog switchable between mic, line and AES audio. Phantom power support. |
Analog Audio Outputs |
1 x 3.5mm headphone jack. |
Reference Inputs |
Tri-Sync/Black Burst and Timecode. |
USB-C Monitor Outputs |
2 x USB-C side monitor ports support URSA Cine EVF, PYXIS Monitor or DisplayPort monitors. |
Computer Interface |
2 x USB-C side expansion ports for camera accessories.
Software updates using side USB-C closer to rear. |
Ethernet |
1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control and streaming. |
Audio |
Microphone |
Integrated stereo microphone. |
Built in Speaker |
1 x mono speaker. |
Standards |
SD Video Standards |
None |
HD Video Standards |
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
|
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
|
SDI Compliance |
SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1
|
SDI Audio Sampling |
48 kHz and 24 bit. |
Media |
Media |
1 x Blackmagic Media Module. |
Media Format |
Blackmagic |
Supported Codecs |
Codecs |
Blackmagic RAW Constant Bitrate 5:1
Blackmagic RAW Constant Bitrate 8:1
Blackmagic RAW Constant Bitrate 12:1
Blackmagic RAW Constant Bitrate 18:1
Blackmagic RAW Constant Quality Q0
Blackmagic RAW Constant Quality Q1
Blackmagic RAW Constant Quality Q3
Blackmagic RAW Constant Quality Q5
|
Control |
External Control |
Blackmagic PYXIS Monitor can trigger record plus camera functions assigned to the F1, F2, F3. External Camera Control supported using REST API over Ethernet or WiFi. Blackmagic iPad control and Bluetooth control supported. Blackmagic Zoom Demand for controlling camera. |
Network Management |
NTP |
Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice. |
FTP |
Download files from any drive attached to your camera using FTP. |
Web Media Manager |
Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera. |
SMB |
File sharing using SMB. |
Storage Features |
Storage Type |
1 x Blackmagic Media Module 8TB. |
Storage Rates |
Storage rates based on 90 frames per second. |
8K Stereo Immersive |
8160 x 7200 x 2
Blackmagic RAW 5:1 - 3,202 MB/s
Blackmagic RAW 8:1 - 2,001 MB/s
Blackmagic RAW 12:1 - 1,334 MB/s
Blackmagic RAW 18:1 - 890 MB/s
Blackmagic RAW Q0 - 1,601 to 5,337 MB/s
Blackmagic RAW Q1 - 1,334 to 4,574 MB/s
Blackmagic RAW Q3 - 801 to 4,003 MB/s
Blackmagic RAW Q5 - 534 to 2,287 MB/s
Constant Quality Rates are: Q0 10:1 - 3:1, Q1 12:1 - 3.5:1, Q3 20:1 - 4:1, Q5 30:1 - 7:1
Actual storage rates are dependent on image subject matter. |
Recording Formats |
ackmagic RAW 5:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at 8160 x 7200 resolution for each eye. |
Software |
Software Included |
URSA Cine Blackmagic OS
DaVinci Resolve Studio for Mac and Windows including activation key
Blackmagic Camera Setup
Blackmagic RAW Player
Blackmagic RAW QuickLook Plugin
Blackmagic RAW SDK |
Operating Systems |
Mac 14.0 Sonoma,
Mac 15.0 Sequoia or later.
Windows 10 and 11. |
Power Requirements |
Power Supply |
+24V DC external power supply 100 - 240 AC 50/60Hz compatible with IEC C14 socket.

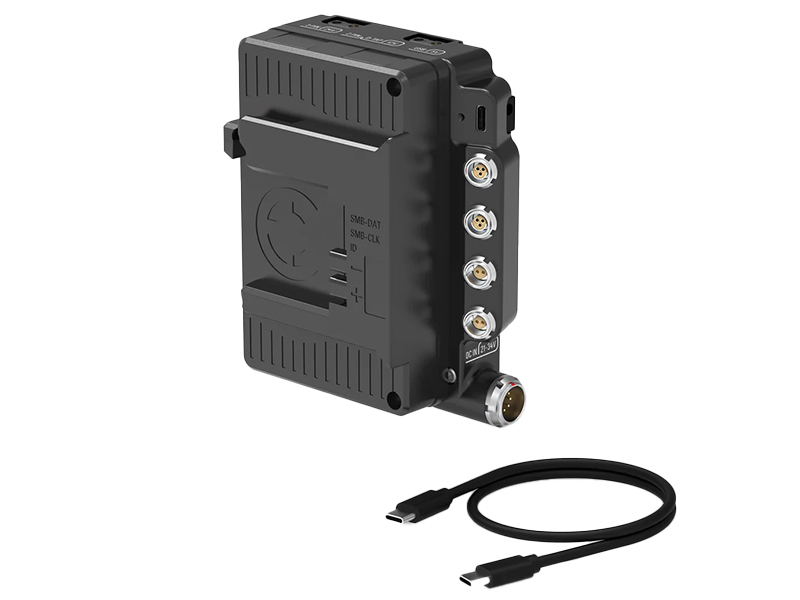

B-Mount battery plate. |
Power Input |
1 x 8 pin Lemo compatible socket for external power or battery use.
Molex connector for rear battery plate. |
Power Output |
B-Mount battery plate including 2-pin connector with +12V regulated output from camera. |
Accessories |
Optional Accessories |
Blackmagic PYXIS Monitor
Blackmagic PYXIS Monitor Kit
Blackmagic PYXIS Monitor EVF Kit
Blackmagic URSA Cine EVF
Blackmagic URSA Cine Battery Plate B Mnt
Blackmagic URSA Cine Battery Plate Gold
Blackmagic URSA Cine Battery Plate VLock
Blackmagic URSA Cine Baseplate 15
Blackmagic URSA Cine Baseplate 19
Blackmagic URSA Cine Handle
Blackmagic URSA Cine 5" LCD Sunshade
Blackmagic Media Dock
Blackmagic Media Module 8TB
ATEM Streaming Bridge |
Environmental Specifications |
Operating Temperature |
0° to 40°C (32° to 104°F) |
Storage Temperature |
-20° to 45°C (-4° to 113°F) |
Relative Humidity |
0% to 90% non-condensing |
Warranty |
1 Year Limited Manufacturer’s Warranty. |
