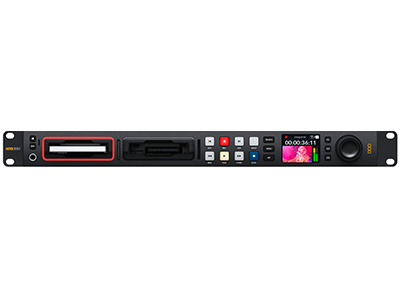

Blackmagic HyperDeck Studio 4K Pro

Code: NMA/HYPERDSTDG4P
$2,220.00

For extreme power, the HyperDeck Studio 4K Pro has all the features of the HD models, combined with incredible processing for working in Ultra HD. This model’s SDI has been upgraded to full 12G-SDI with a loop 12G-SDI output. The two SDI outputs are both 12G-SDI so you can play ProRes 4444 files for true Ultra HD fill and key out. The HDMI connections and the ProRes and DNx file formats all switch between SD, HD and Ultra HD television standards. Like the other models, H.264 is included for SD and HD, but then switches to H.265 when recording in Ultra HD. Even the networking has been upgraded to 10G Ethernet for incredible speed! You also get 2 redundant AC power supplies!

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock

Out of stock - Call for availability

For extreme power, the HyperDeck Studio 4K Pro has all the features of the HD models, combined with incredible processing for working in Ultra HD. This model’s SDI has been upgraded to full 12G-SDI with a loop 12G-SDI output. The two SDI outputs are both 12G-SDI so you can play ProRes 4444 files for true Ultra HD fill and key out. The HDMI connections and the ProRes and DNx file formats all switch between SD, HD and Ultra HD television standards. Like the other models, H.264 is included for SD and HD, but then switches to H.265 when recording in Ultra HD. Even the networking has been upgraded to 10G Ethernet for incredible speed! You also get 2 redundant AC power supplies!

Professional broadcast decks that record and playback using SD cards and SSD media!

HyperDeck Studio lets you record broadcast quality video files directly onto SD cards and SSD media! The new redesigned HyperDeck Studios feature modern design with more codecs and quieter cooling. All models now support recording to H.264, Apple ProRes or DNxHD files with either PCM or AAC audio. Plus the 4K model adds support for H.265 files! When you've finished recording, media can be mounted on any computer to access the files using your favorite video software. For ISO recording, there's even built in timecode and reference generators for syncing multiple units! All of these powerful features make HyperDeck Studio perfect for broadcast, live production or multi screen digital signage!

Elegantly Designed Professional Broadcast Deck

The new HyperDeck Studio recorders have been totally redesigned with dozens of new features! The advanced models have new broadcast style front panel controls and more connections on the rear panel. The LCD screen supports both light and dark modes, plus the transport control buttons are stronger with a firm professional feel. The Pro models feature a machined metal search dial with increased mass and a soft rubber surface that feels nice to the touch. Plus the search dial features an active clutch, just like a traditional broadcast deck! With dual media slots, you can change cards without interrupting recording! The advanced models even include a front headphone connection and speaker!

Perfect for Live Production, Broadcast and Archive

Mastering Recorder

All models record to H.264, ProRes and DNx files, so are perfect for recording broadcast masters! You can even use PCM or AAC audio, plus the 4K model adds H.265 when recording to Ultra HD files. You get everything you need to send shows to broadcasters and for uploading to YouTube.

ISO Recording

All models feature timecode and reference generators, with outputs to loop to other HyperDecks. This means you can build a rack of HyperDeck Studios for ISO camera recording, allowing multi-cam editing after live events! You can even sync cameras to the SDI output and the SDI input has a frame sync!

Digital Signage

HyperDeck Studio is perfect for digital signage as all models have HDMI output for connecting to large screen TVs and projectors. The built in sync generator lets you combine multiple HyperDecks for large multiscreen video walls. There's even FTP for file upload and a protocol for remote control!

Broadcast Archive

HyperDeck Studio supports all SD and HD standards so it’s ideal for archiving old television shows from broadcast decks such as Digital Betacam, Betacam SP, 1", U-matic and VHS. You can even record direct to H.264 to maximize storage. For analog decks, just add a Mini Converter Analog to SDI!

Bright Colo

r LCD Status Display

HyperDeck Studio features traditional deck style transport controls, including a search dial for jog, shuttle and scroll. The compact LCD shows timecode and transport information, plus a full color thumbnail preview of the current clip in record or playback. It also displays information about each card’s recording status, along with video format, frame rate information and audio levels, all on the same display! The LCD includes monitoring for video, plus audio level meters, selectable between technically accurate VU or PPM ballistics. The combination of familiar VTR style controls with the built in LCD screen makes HyperDeck Studio incredibly fast to use and very easy to learn!

Traditional Broadcast Deck Controls

HyperDeck Studio includes a traditional broadcast style control panel that's very fast to use. Simply press the record button and you instantly start recording the video input to a file! You can also change the record file format from the menu. There are transport control buttons for playback, rewind, fast forward, previous clip, next clip and more. The Pro models have a machined metal search dial that supports shuttle, jog and scroll so you can find clips fast. Any button pressed on the front panel is sent to the rear RS-422 remote output for looping control to multiple HyperDecks. The Plus and Pro models also include a front panel speaker and headphone socket for live audio monitoring.

Supports SD Cards, UHS‑II Cards or SSDs

All HyperDeck Studio models support recording to common SD cards and UHS-II cards so you don't need expensive custom media. However the Pro models also add two SSD slots so you can use two different types of media! SD cards and SSDs are the perfect choice for broadcast media because they are small and very affordable. When using H.264, the files are so incredibly small you get very long recordings even on smaller low cost cards. Plus, you can even record to external USB disks! With H.265, you can record up to 58 hours in 2160p60 Ultra HD or up to 157 hours of H.264 recording in 1080p59.94 on a 1 TB card. That's over 6 days of recording in HD using a single 1 TB card!

Dual Media Slots For Non‑Stop Recording!

All HyperDeck Studio models feature dual media slots for non stop recording. When the recording card becomes full, recording automatically continues onto the next card. That’s perfect when recording long live events because you can "hot swap" a full card for an empty card while recording continues in the other slot! Each slot has a status indicator to show which card is being used, either red for record or green for playback. Plus all models now feature very long file recordings to a single file for easy file distribution. HyperDeck Studio is easily repairable with each card slot using an individual PCB assembly that can be replaced if it ever becomes worn out from heavy use.

Record to External USB-C Media Disks

If recording to other types of media is required, the USB-C expansion port lets you plug in an external flash disk for recording. USB-C flash disks have unlimited capacity because they can be physically larger than an SD card or SSD. Plus, it's even possible to record to a disk array you'll use for editing, so you don't need to waste time copying files before starting post production. Just move the disk over to a computer and instantly start editing! You can even add a Blackmagic MultiDock 10G that has 4 separate SSD media slots, so you can add compatibility with SSD media to the HyperDeck Studio Mini and Plus models. There are also menus for managing external disks on the built in LCD.

Popular ProRes, DNx, H.264 and H.265 Files!

HyperDeck supports the most popular codecs in use today! All models include DNx and ProRes file formats. However all models also include H.264 in quality levels up to full 10 bit 4:2:2 when recording in NTSC, PAL, 720p, 1080p and true 1080i interlaced formats. While the 4K model adds H.265 when recording in Ultra HD. That means you get tight 60:1 to 285:1 compression ratios for very small files at full broadcast quality. Plus you can choose uncompressed PCM audio, or even AAC audio when uploading files to YouTube. All models support both ExFAT and HFS+ disk formats and long duration single file recordings. The Plus and Pro models even support ProRes 4444 allowing fill and key playback!

Advanced Broadcast Connections!

Depending on the model HyperDeck Studio features a wide range of video and audio connections such as 3G-SDI, 6G-SDI or 12G-SDI. All models include HDMI for connecting to televisions and projectors. There's even a dedicated SDI monitoring output on the Pro and Plus models with on screen status. The Pro and Plus models include two SDI outputs so you can play ProRes 4444 files, allowing simultaneous fill and key output for keying in live production switchers. The internal timecode and reference generator connections can be looped to sync multiple units for ISO recording! The 4K model has 10G Ethernet for extremely fast network file copying! All models even include AC and locking DC power!

USB Webcam Output for Video Software

For compatibility with a wide range of computer software, HyperDeck Studio features webcam support using the USB connection. If you're not recording to an external USB disk, you can plug the HyperDeck USB connection directly into a computer to get live video into any video software. The computer is tricked into thinking the HyperDeck is a common webcam, but it's really a broadcast quality video source! That guarantees full compatibility with any video software and in full resolution 1080 HD quality. HyperDeck Studio's USB webcam feature works with any video software including Zoom, Microsoft Teams and Skype, or get live streaming with Open Broadcaster, XSplit Broadcaster and more!

Advanced HDR Support and Monitoring 3D LUTs

You'll be ready for the latest feature film workflows with support for advanced HDR standards. All HDR status information is embedded into the SDI connections so downstream equipment can detect when HDR files are played. When recording, the SDI and HDMI inputs will also automatically detect HDR video standards and then tag the files with the correct HDR information. Static metadata PQ and HLG formats are handled according to the ST2084 standard. Plus the front panel LCD has a wider color gamut for both Rec. 2020 and Rec. 709 colorspaces. HyperDeck Studio Plus and Pro models even allow you to load a 3D LUT into the monitoring output to add looks or to convert film to video gamma.

Includes Professional Multi Channel SDI Audio

HyperDeck Studio includes professional multi channel SDI audio for recording up to 16 channels. When recording from the SDI input, you can select in the menu to record 2, 4, 8 or 16 channels of audio in real time. There's extra space on the SDI monitoring status overlay, which allows the audio meter display to show the number of channels you have enabled all at the same time, and the audio meters will show 2, 4, 8 or 16 channels simultaneously. The audio meters are designed to use the correct ballistics, and you can change between different VU and PPM meter displays in the LCD menu. HyperDeck Studio is more than just a video recorder, as it also has fantastic sound!

Incredibly Fast Network File Transfers

All HyperDeck models allow media files to be uploaded remotely, using simple FTP client software. With 10G Ethernet built into the HyperDeck Studio 4K Pro model, file transfers are so fast, they are faster than the SD card or SSD media disks! For remote deck control, all models use an easy to learn text based protocol, so you can use a simple terminal app like Telnet to test control commands. Simply log into the HyperDeck and then type "play" or "record" and it will execute the command. It's that simple! If you combine the control protocol and file transfers with a HyperDeck connected to a large USB-C disk array, you get a fantastic broadcast server for ingest, media management and play out.

Traditional RS-422 Broadcast Deck Control

The most popular control connection used on broadcast decks since the early 1980s is the RS-422 protocol. Originally developed by Sony, RS-422 is used on almost all broadcast gear. HyperDeck Studio features wide protocol support so you can connect it direct to broadcast systems. It also supports extra commands for the Advanced Media Protocol for managing disk recorders. When designing RS-422 control solutions, you'll know you’re connected to a HyperDeck Studio when you see the ID 0xF0E0 in 30/60p, 0xF1E0 in 25/50p or 0xF2E0 in 24p. The full set of support remote commands are included in the instruction manual and you can download this from the support page of our web site.

Built in Timecode and Sync Generators

With a timecode and sync generator built into all models, you can stack multiple units for digital signage or multi channel recording. Each HyperDeck has dedicated outputs for reference and timecode, direct from the internal sync and timecode generators. The generators "free run" unless reference or timecode is connected to the inputs, and then generators will automatically lock. This means you can loop from HyperDeck to HyperDeck to create perfectly timed array or recorders.

Includes the Power of Blackmagic OS

The innovative Blackmagic OS has been designed for high performance film and broadcast products and it manages all functions on HyperDeck Studio. Only Blackmagic OS provides instant power on, while including powerful features such as LCD with video, timecode and audio metering, monitoring with overlays, menus, fast networking, multi-disk media management, 3D LUTs plus localization. The on screen LCD menus include settings to customize your HyperDeck Studio, plus the menus now support both light and dark mode! Blackmagic OS provides world leading network performance and HyperDeck Studio 4K Pro can sustain data transfers at a massive 1.2 gigabytes per second on its 10G Ethernet connection!

Use All Video Software and Streaming Sites

HyperDeck Studio records files that are compatible with virtually all post production software. Plus if you record in H.264, you can upload files from HyperDeck Studio direct to streaming services such as YouTube, Facebook, Vimeo, Twitter and more! You can use popular editing software such as DaVinci Resolve, Apple Final Cut Pro, Adobe Premiere Pro or Avid Media Composer, because HyperDeck uses the same file formats used in post production. Even VFX software such as Fusion and Adobe After Effects work with the files! Because HyperDeck records to disks formatted on computers, you can simply mount the disk on any computer and start editing without needing to transcode or convert the files.

Built in Redundancy Keeps You On Air!

Serious broadcasters need redundancy because it increases reliability. HyperDeck Studio includes redundant features to help ensure you stay on air. With dual media slots on all models, and the Pro models having 4 media slots, you can stay on air, even if one of the slots becomes damaged. Plus with the HyperDeck Studio HD Mini model you get 3 totally independent recorders in a single rack unit, while the HyperDeck Studio HD Plus model allows 2 independent recorders in a single rack unit. All HyperDeck models include both AC and a locking DC power connection, so you use the DC connection with an external battery pack for redundant power.

Designed for Both Portable or Rack Mount Use!

When you need a portable broadcast solution, the HyperDeck Studio HD Mini model includes most features miniaturized into an elegant 5 inch wide compact design that's only one third of a rack unit wide. That means you can fit 3 recorders in a single rack unit! Just use the optional Teranex Mini Rack Shelf and you can mount the 3 units side by side, then bolt it into a standard equipment rack. Or you can combine HyperDeck Studio Mini with other modules, such as a Teranex Mini Analog to SDI 12G to convert the input from analog to SDI, all in the same rack which is perfect for archive work. HyperDeck Studio HD Mini looks great when it’s not rack mounted and simply used by itself on a desktop!

Compatible with Switchers, Disk Docks and Cameras!

There's a wide range of Blackmagic Design products you can use with HyperDeck including switchers, cameras and streaming solutions! As the Mini and Plus models don't include SSD slots, you can add a Blackmagic MultiDock 10G to use regular SSDs, allowing compatibility with media from other HyperDeck models. HyperDeck Studio will manage all the disks for you and automatically record to disks in the MultiDock. You can even use the MultiDock with the HyperDeck Studio Pro models just to add extra SSDs for longer recording times! HyperDeck Studio is also a perfect mastering recorder when used with ATEM switchers, a clip player with fill and key, or looped on switcher inputs for ISO recording.

Connections
SDI Video Inputs 1
SDI Video Outputs 2
SDI Monitor Outputs 1
SDI Rates 270Mb, 1.5G, 3G, 6G, 12G.
HDMI 2.0 Video Inputs 1
HDMI 2.0 Video Outputs 1
Built in Speaker Mono
Audio Output 1 x 6.35 mm headphone jack.
Screen 2.2 inch LCD.
Timecode Connections 1 x XLR In, 1 x XLR Out.
Reference Connections 1 x BNC In, 1 x BNC Out.
Tri-Sync or Black Burst.
SDI Audio Inputs 16 channels embedded audio.
SDI Audio Outputs 16 channels embedded audio.
HDMI Audio Inputs 8 channels embedded audio.
HDMI Audio Outputs 8 channels embedded audio.
Remote Control 1 x RS-422 In, 1 x RS-422 Out.
Recorder Configuration Via user interface or Blackmagic HyperDeck Ethernet Protocol.
Ethernet 10Gb/s
Computer Interface 1 x USB Type-C 3.1 Gen 2 (up to 10Gb/s) for external drive recording, webcam out, software configuration and updates.
Standards
SD Video Standards 525i59.94 NTSC, 625i50 PAL
HD Video Standards 720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2K DCI Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI,
2Kp29.97 DCI, 2Kp30 DCI
Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K DCI Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084 and SMPTE 2108‑1.
SDI Metadata Support HD RP188 and closed captioning CEA‑708. HDR Metadata supported on SDI.
Supported HDMI Formats 525i59.94 NTSC, 625i50 PAL,
720p50, 720p59.94, 720p60,
1080i50, 1080i59.94, 1080i60,
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI,
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60,
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
Audio Sampling Television standard 24‑bit, 48 kHz sample rate.
Video Sampling 4:2:2 YUV
Color Precision 10‑bit
Color Space REC 601, REC 709, REC 2020. 33 point 3D LUTS can be applied to SDI monitor out.
HDR Support Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084.
Multi Rate Support Auto detection of SD, HD, 6G‑SDI and 12G‑SDI.
Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Media
Media 2 x 2.5 inch disc slots 2 x SD card slots 1 x USB‑C 3.1 Gen 2 expansion port for external recording of SD, HD, 2K DCI, Ultra HD and 4K DCI.
Media Type SATA-II or SATA-III 2.5 inch solid state media. UHS-I and UHS-II SD cards.
Media Format Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Supported Codecs
Codecs ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 2160p60. Playback only of ProRes 4444 QuickTime up to 1080p60 with auto routing of fill and key over SDI A and B outputs. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps.DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p formats up to 60fps.H.265 SDI 4:2:2 10‑bit, H.265 High 4:2:0 10‑bit, H.265 Medium 4:2:0 10‑bit, H.265 Low 4:2:0 10‑bit for all 2160p formats up to 60 fps. H.264 SDI 4:2:2 10‑bit, H.264 High 4:2:0 8‑bit, H.264 Medium 4:2:0 8‑bit, H.264 Low 4:2:0 8‑bit for all progressive formats up to 1080p60.
Control
Built in Control Panel 16 buttons for transport and device control with search dial featuring electronic clutch and 2.2 inch color display.
External Control RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol. Supports remote FTP file upload.
Software
Software Included Blackmagic OS Blackmagic HyperDeck Setup Internal Software Upgrade Loaded at system start, or via Blackmagic HyperDeck Setup using USB port.
Operating Systems Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Display Specs
Display Built in 2.2 inch LCD for video, audio and timecode monitoring and menu settings.
LED bezel indicator lights around SSD media slots and LED indicator lights above the SD media slots.
Power Requirements
Power Supply 1 x Internal 100 - 240V AC 50/60Hz.
Connector 1 x 4 pin XLR 12V DC In for external power supply or battery use.
Power Usage 100 W max.
Accessories
Optional Accessories HyperDeck Extreme Control
Physical Installation
1 rack unit height.
Environmental Specifications
Operating Temperature 0° to 40° C (32°to 104° F)
Storage Temperature -20° to 60° C (-4° to 140° F)
Relative Humidity 0% to 90% non‑condensing
Warranty
12 Month Limited Manufacturer's Warranty.
