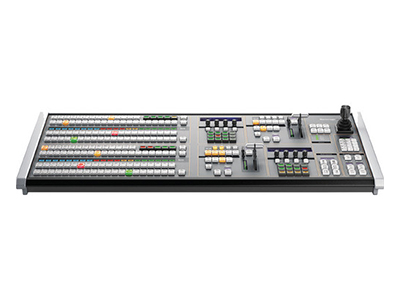

Blackmagic ATEM 2 M/E Broadcast Panel

Code: NMA/SWPANEL2ME
$27,550.00

The Blackmagic Design ATEM 2 M/E Broadcast Panel is a perfect companion to a professional live switcher, such as Blackmagic Design's ATEM 2 M/E Production Switcher.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock

Out of stock - Call for availability

The Blackmagic Design ATEM 2 M/E Broadcast Panel is a perfect companion to a professional live switcher, such as Blackmagic Design's ATEM 2 M/E Production Switcher (not included). With a broad field populated by high-quality buttons, knobs, T-bars, and a 3-axis joystick, you'll be able to customize your panel's operation to your exact needs and preferences – without compromise.

Complex, multi-layer productions deserve a versatile panel, and the ATEM 2 M/E certainly fits the bill for live broadcast events. All controls are at your fingertips, so you can instantly command the switcher to switch cameras and execute transitions, fades, DVE effects, and more. This 37" wide panel gives you plenty of elbow room in which to operate.

The ATEM 2 M/E Broadcast Panel connects to a switcher via 10/100/1000 BaseT Ethernet, and there's loop-through Ethernet for connecting to another panel or to a media-management computer. The panel receives firmware updates via its USB input.

Key Features

  • Tri-color LED crosspoint buttons – 20 direct crosspoints and 40 shifted crosspoints
  • High-contrast RGB bitmap crosspoint labels
  • LCD bitmap buttons for menu control
  • On-air indicator
  • Transition preview, with transition rate display
  • Specifications
    Connectionstd 10/100/1000 BaseT with loop output for additional control panels or computers
    1 x USB for firmware updates
    Buttons Tri-color LED crosspoint buttons (20 direct crosspoints; 40 shifted crosspoints) with high-contrast RGB bitmap labels
    LCD bitmap buttons for menu control
    Next transition selectors: BKG, Key1 - Key2 (per M/E)
    DSK transition selectors: Auto, Cut, Tie/Pvw
    Controls 3-axis joystick, numeric keypad, 2x fader bars
    Operating System Aerospace-certified embedded OS
    Redundant Power Yes
    Input Voltage 12V
    Power Consumption 75W
    Dimensions 4.8 x 37.27 x 14.14" (120 x 947 x 359mm)
    Cutout HxWxD: 4.8 x 36.27 x 16.67" (120 x 921 x 423mm)
    Weight 33.6 lb (15.25 kg)
