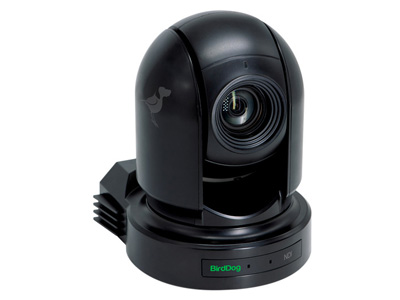

BirdDog Eyes P200 NDI Production PTZ Camera

Code:

Designed for serious production the image quality of P200 is best in class. By teaming up BirdDog’s custom NDI silicon chip, a Sony CMOS Backlit Sensor, and a true Sony Image Module, P200 has lightening auto focus, incredibly sharp images, and insanely fast zoom.

Product Options:

Code: BLO/BDP200B
$4,425.00
Code: BLO/BDP200W
$4,425.00

ENQUIRE NOW

Got a question about this product?
Send us a message

NDI has never looked so good.

Designed for serious production the image quality of P200 is best in class. By teaming up BirdDog’s custom NDI silicon chip, a Sony CMOS Backlit Sensor, and a true Sony Image Module, P200 has lightening auto focus, incredibly sharp images, and insanely fast zoom. P200 has frame rates up to 1080p60, 30x optical zoom, and features independent, live triple outputs in SDI, HDMI and Full NDI.

Full NDI. No compromises.

In the world of NDI there are two flavours, NDI and NDI|HX. NDI is a variable bit rate, I-Frame codec that is reaches around 140Mbits at 1080p60 and is visually lossless. NDI|HX is a compressed, long-GOP, H.264 variant that reaches around 12Mbits at 1080p60. P200 is a Full NDI camera.

Sony Sensor. You deserve the best.

The best pictures come from the best silicon. P200 is teams up a world class Sony CMOS Backlit Sensor with the BirdDog custom NDI chip to form a match made in silicon heaven. Your productions deserve the best.

Sony Image Module. Optics done right.

Lightning auto focus. Insanely fast zoom. Precision optics. The only way to achieve the best picture quality is with image module made by the world’s best. P200 uses a true Sony image module to give unparalleled performance, picture quality, and responsiveness.

BirdDog and Bolin. BFF’s.

Sometimes a partnership is so strong it creates more than the sum of the individual parts. BirdDog and Bolin have joined forces to bring the World’s Best range of NDI PTZ gear to market. With Bolin’s commitment to using the highest quality Sony Sensors and their ability to build weatherproof cameras BirdDog knew there was only one PTZ partner that shared BirdDog’s vision of bringing to market the highest quality products at reasonable prices. Through BirdDog’s NDI know-how and Bolin’s unrivalled PTZ engineering pedigree an unbreakable partnership has formed. Batman and Robin. Mulder and Scully. Joanie and Chachi. You get the idea.

Triple output. NDI, SDI and HDMI.

With NDI, SDI, and HDMI simultaneous outputs the P200 is ready to go live with your full NDI workflow today or if you are still in an old school SDI workflow you can control via RS422, RS485, and RS232. No matter which way you like to work, you can rest easy in the knowledge that P200 has you covered for all workflow situations.

30x Optical zoom. Over there is now over here.

Never miss a shot again. 30x optical zoom brings the whole world to you. Now you can zoom in to the other end of a football game and stay locked in on the action. The incredible optical zoom function makes P200 perfect for sports such as football, baseball, hockey, ski fields, basketball, soccer, and more.

PoE or DC. You have the power.

P200 can be powered by Power over Ethernet (PoE) or from the included power adapter.

PTZ Keyboard. Take control.

Combine P200 with the BirdDog PTZ Keyboard and you have total control of all functions remotely. PTZ Keyboard is a full featured PTZ Keyboard that can control up to 255 PTZ cameras on a single network so can scale to even the most complex installations. PTZ Keyboard can control P200 over NDI or by RS422 / RS232 when using in SDI mode.

Free Comms Lite. Upgrade to Comms Pro.

P200 includes free Audio Intercom software, Comms Lite. Comms Lite supports four BirdDog devices and one Director.

Need a more powerful Audio Intercom solution? Comms Pro gives you all the amazing features of Comms Lite plus allows you create you up to five groups, adds additional push to talk buttons for the director, ability to change groups on the fly, plus more.

Distribute NDI content everywhere. Just add Central.

BirdDog Central is a software platform set to redefine the way we think about driving content to TV screens. By teaming up Central with any NDI source, including all BirdDog hardware capable of creating NDI sources, you can now drive your NDI streams to any BirdDog Studio NDI or Mini to decode NDI back to SDI or HDMI.

Specifications

Image Sensor

Image Sensor1-Chip 1/2.8" CMOS Sensor
Sensor Resolution2.13 MP
Minimum Illumination0.01 Lux at 1/30 Shutter Speed

Camera

Shutter Speed1/1 to 1/10,000 sec
Max Digital Zoom12x
Flip / Mirror SupportImage Flip, Mirror (Vertical)

Lens

Optical Zoom Ratio30x
Focal Length4.3 to 129mm
Field of ViewHorizontal: 2.3 to 63.7°
Maximum Aperturef/1.6 to 4.7
Focus ControlAutofocus
Manual Focus

Video Output

Output FormatsSDI, HDMI, RJ45: 1920 x 1080p at 25, 29.97, 50, 59.94, 60 fps
1920 x 1080i at 50, 59.94, 60 fps
1280 x 720p at 25, 29.97, 50, 59.94, 60 fps

Control

Presets128
Move Speed150°/sec
Movement RangePan: 350°
Tilt: -30 to 90°
Supported Control ProtocolsPelco-D
VISCA

Interfaces

Video Output Connectors1 x RJ45 (NDI)
1 x BNC (3G-SDI)
1 x HDMI Type A (HDMI 1.4)
Audio I/O1 x 1/8" / 3.5 mm Stereo Input
1 x 1/8" / 3.5 mm Stereo Output
Control Interface1 x RJ45 (IP Control)
Other I/O2 x RJ45 (RS-232, RS-422, RS-485)
1 x USB (Unspecified Type)

Power

PoE SupportPoE+ 802.3at
Power Connectors1 x Barrel / Coaxial (12 VDC)
Environmental
Operating Temperature14 to 122°F / -10 to 50°C
Operating Humidity80%

General

Tripod Mounting Thread1 x 1/4"-20 Female
Dimensions6.3 x 7.01 x 8.66" / 16 x 17.8 x 22 cm
Weight4.41 lb / 2 kg
