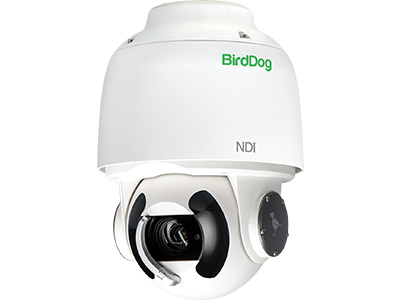

BirdDog Eyes A200 PTZ Camera with NDI

Code: BLO/BDA200
$7,750.00
Designed for fixed outdoor installations such as sports, the IP67 rating means A200 can withstand pretty much any weather conditions. By teaming up BirdDog’s custom NDI silicon chip, a Sony CMOS backlit sensor, and a true Sony Image module A200 has lightning auto focus, incredibly sharp images, and insanely fast zoom. A200 has frame rates up to 1080p60, 30x optical zoom, and outputs SDI and Full NDI simultaneously.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when BirdDog Eyes A200 PTZ Camera with NDI is back in stock.

Your entry into the world of NDI.

Built on BirdDog’s custom NDI silicon chip, the P100 PTZ camera is your entry into the world of full NDI. Featuring frame rates up to 1080p60, 10x optical zoom, and dual SDI and NDI outputs, P100 gives you professional level quality, performance, and total flexibility. 3.5mm audio connectors allow P100 to work with BirdDog Comms, the world’s first NDI audio intercom platform.

Full NDI. No compromises.

In the world of NDI there are two flavours, NDI and NDI|HX. NDI is a variable bit rate, I-Frame codec that is reaches around 140Mbits at 1080p60 and is visually lossless. NDI|HX is a compressed, long-GOP, H.264 variant that reaches around 12Mbits at 1080p60. Eyes A200 hardware only Encodes and Decodes Full YUV422 NDI.

Sony Sensor. You deserve the best.

The best pictures come from the best silicon. A200 is teams up a world class Sony CMOS Backlit Sensor with the BirdDog custom NDI chip to form a match made in silicon heaven. Your productions deserve the best.

Sony Image Module. Optics done right.

Lightning auto focus. Insanely fast zoom. Precision optics. The only way to achieve the best picture quality is with image module made by the world’s best. A200 uses a true Sony image module to give unparalleled performance, picture quality, and responsiveness.

All weather. Keep your NDI dry.

With an IP67 rating A200 is perfect for fixed installations in outdoor and indoor environments. The external housing has been treated for corrosion resistance against salt spray and the -40°C to +60°C operating temperature rating means it has been designed to withstand the most extreme elements on earth. It even has a rain wiper to keep water off the lens.

Dual Output. NDI and SDI.

With NDI and SDI simultaneous outputs, the A200 is ready to go live with your full NDI workflow, or if you are still in an old school SDI workflow you can control via RS422, RS485, and RS232 to future proof your investment by using baseband video now and move to NDI when you are ready.

30x Optical zoom. Over there is now over here.

The two punch 30x optical zoom and all weather abilities of makes A200 perfect for outdoor and indoor fixed installations for sports such as football, baseball, hockey, ski fields, basketball, soccer, and more.

You spin me right round baby. Right round.

360 degree continuous rotation, 255 preset positions, Zero Deviation Positioning technology, and a preset movement speed of 150 degrees per second mean you will never miss a shot again.

PTZ Keyboard. Take control.

Combine A200 with the BirdDog PTZ Keyboard and you have total control of all functions remotely. PTZ Keyboard is a full featured PTZ Keyboard that can control up to 255 PTZ cameras on a single network so can scale to even the most complex installations. PTZ Keyboard can control A200 over NDI or by RS422 / RS232 when using in SDI mode.

PoE and Mounts. All options available.

A200 can be powered by PoE with an optional PoE Injector. Designed to hang upside down the choice of mounting options gives coverage for virtually any situation. Wall mount, Ceiling Mount, Corner Mount and Pole Mounting options all available.

Free Comms Lite. Upgrade to Comms Pro

A200 includes free Audio Intercom software, Comms Lite. Comms Lite supports four BirdDog devices and one Director. For more information on Comms Lite and how to get your free copy click here.

Need a more powerful Audio Intercom solution? Comms Pro gives you all the amazing features of Comms Lite plus allows you create you up to five groups, adds additional push to talk buttons for the director, ability to change groups on the fly, plus more. You can read more about it here.

Specifications

Camera
Image Sensor 1 / 2.8" CMOS 2.13MP
Lens 4.3-129mm
Optical Zoom 30x
Digital Zoom 12x
Horizontal Angle of View 63.7° (W) - 2.3° (T)
Aperture F1.6 (W) - F4.7 (T)
Min. Illumination Color: 0.01 lux (F1.6, AGC on ,1/30s, High sensitive mode), 0.1 lux (F1.6, AGC on, 1/30s, Normal sensitive mode)
Shutter Speed 1/1 - 1/10000s
Focus Auto, Push, Manual
White Balance Auto, Indoor, Outdoor, Manual, OPW, ATW
Exposure Auto, Manual, Shutter/Iris Priority
Backlight Comensation YES
Mechanical
Pan Movement Horizontal: +/-360°s continuous pan
(Zoom Adaptive Speed Range: 0.01° ~ 150°/S )
Tilt Movement Vertical: -90° to +15°
(Zoom Adaptive Speed Range: 0.05° ~90° /S)
Preset Positions 255 (Speed adjustable: Up to 150°/s)
Environmental Outdoor/Indoor, IP67, corrosion resistant treated housing
Operating Temperature -40° + 60° C
Operating Humidity =< 80%
Infrared Adaptive infrared, illumination up to 100m
Video Interface
Video Output NDI/SDI
Video Formats 1080P 60, 59.94, 50, 29.97, 25
1080i 60, 59.94, 50
720p 60, 59.94, 50, 29.97, 25
Audio I/O 3.5mm Audio In (Stereo)
3.5mm Audio Out (Stereo)
Control Interface
IP PTZ Control NDI Control (auto configuring)
Serial PTZ Control 2x RJ45: RS232/RS422/RS485
Serial Control Protocol VISCA / Pelco D
Power & Dimensions
Power Input AC 24v, PoE 80W Ready
(BirdDog PoE 80W Injector needed, optional)
Power Consumption Min. 15W, Max. 60w (-40°C)
Dimensions 210x210x333mm
Weight 5.5kg
Network
Video Compression Full NDI - i-frame high quality low latency NDI for production
Network Protocol DI - Discovery, configuration and control
Web Control interface Full control via Web/Mobile UI including Scene presets
