What's In The Box?

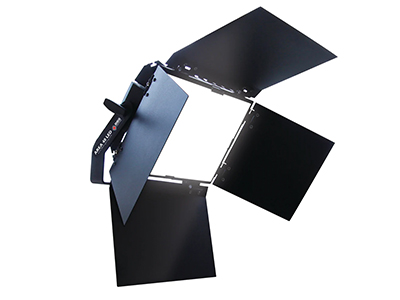

1x BAR/BBS2044K Area 48 Soft LED Fixture
1x BAR/BBS2053 Interchangeable 5600K Phosphor Panel

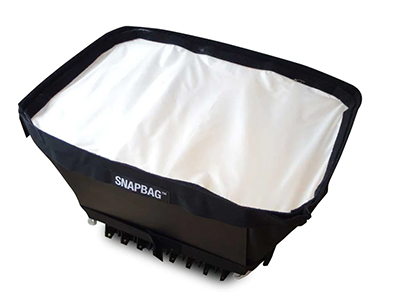

1x BAR/DOPSBAREAV DoPchoice Versa Soft Box
The AREA 48 Soft LED operates on 110-240 VDC as well as 10-20 VDC for Battery operation with HD-friendly 98 TLCI soft light output is comparable to a 1200 Watt traditional soft light while drawing only 122 watts and represents the next-generation in lighting technology for studio and location work.
BB&S new integrated LED technology moves the phosphor away from the LED itself, thereby greatly improving color rendering, consistency, and light output.
The system’s color rendering accuracy is up to 98 TLCI with multiple power options including an integrated battery or standard AC power. The Power Supply is mounted with metal clamps to hold PSU on the Yoke and has a locking AC Cable. Moreover, the phosphor panels themselves are interchangeable, allowing you to quickly change the fixture from Daylight to Tungsten, to Chroma-Green, all in a matter of seconds.
BB&S AREA 48 Soft LED has High-Output, Great Color, and the option to Run on Gold Mount or V-Lock 10 Amp or higher Batteries at full power!
Area 48 Fixture Includes:
- High CRI Chroma Blue Media Panel
- Detachable Barn Doors
- Angled Yoke with Manfrotto TVMP
- 160 Watt Power Supply mounted on Yoke & Locking AC Power Cord
The Area 48 was awarded by TVBEurope as ‘Best of IBC′
Area 48 Features:
Phosphor Panels - Chroma Green/ 98 TLCI 2700k / 98 TLCI 3200k / 98 TLCI 4300k / 98 TLCI 5600k / 98 TLCI 6500k, Chroma Blue and 10,000k
- Extremely High Light Output
- Excellent Shadow Rendering
- Flicker-Free Dimming from 0 - 100%
- 8 / 16 Bit Dimming 0-100%
- Special Effects Strobing Mode
- Silent Operation (no fan)
- V-Lock or Gold Mount (AB) Battery options
- Internal DMX 512 for remote control
- 4 Pin XLR for Power / Power + DMX
- Very Compact Versatile Unit
Specifications
Power
AC Power: 100 - 240V 50/60 Hz
Max Power Consumption 122W
Battery Operational Voltage Range: 12V– 20V 10-12 AMP Discharge Batteries recommended
LED
Premium LED Array - 70K hour life
Control
Manual or internal DMX512/RDM
DMX in/out for Daisy-Chaining
8 / 16 Bit Dimming 0 - 100%
Up to 4 Control Channels in 16 Bit
Mode, Selectable via Digital Display
Dimensions (With Closed Barn Doors)
W: 356mm/13.97”
H: 275mm/10.82”
D: 115mm/ 4.53”
Weight: 3.6 kg / 7.94 lbs
Thermal
Ambient Operating Temperature: 0-40°C / 0-104°F
Broadcast studios Photo shoots Film Video Production Theatres Concerts Museums Churches Science Centers Exhibitions Trades Fashion Shows Events Venues On Location Display Lighting
