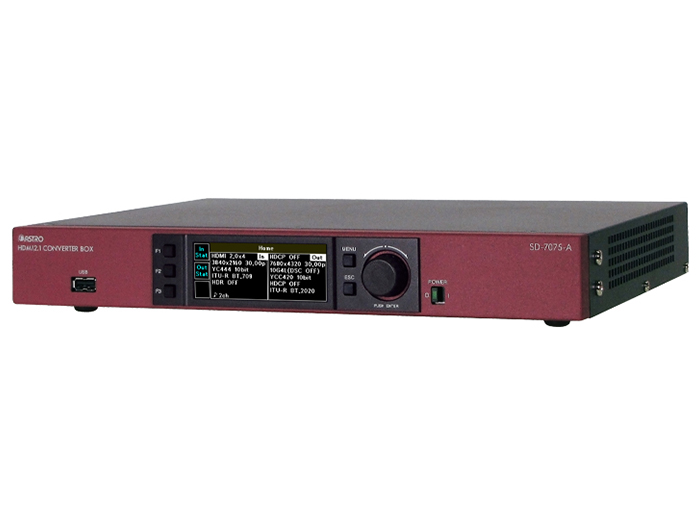

Astrodesign HDMI 2.0 (4Ch) - HDMI 2.1 Converter

Code: AST/SD-7075-A

SD-7075-A is an HDMI converter box to convert 4 channels of HDMI 2.0 to 1 channel of HDMI 2.1.

For purchasing information

Enquire Now

Overview
Specifications

SD-7075-A is an HDMI converter box to convert 4 channels of HDMI 2.0 to 1 channel of HDMI 2.1.

It is useful for connecting to an HDMI 2.1 TV from a set top box or graphic board that has 4 channels of HDMI 2.0 output.

Key Features

Converts HDMI 2.0 TMDS (4ch) to HDMI 2.1 FRL (1ch)
Supports DSC (Display Stream Compression) 1.2
Supports HDCP 1.4 and 2.3
EDID, SCDC and Link Training status are displayed on the front panel
LAN, RS-232C and GPIO (customized base) for external control

Product Note

1 : Frame rate and bit depth of output video are same as input video. In case of 8K/50p, 59.94p and 60p output, it becomes YCBCR 4:2:0 automatically.
2 : FRL output rate is determined according to the EDID of the HDMI Sink. If there is no EDID in the HDMI Sink, maximum FRL rate will be output.
3 : All 4 input channels should be connected to the Source.

HDMI	Ch	Resolution	Resolution/Ch	Frame Rate	Color Space	bit	Transmission method
2.0	4	7680 x 4320	3840×2160	60p/59.94p/50p	RGB/YCBCR 4:4:4	8	SQD
					YCBCR 4:2:2	12
					YCBCR 4:2:0	12
						10
						8
				30p/29.97p/25p/24p/23.98p	RGB/YCBCR 4:4:4	12
						10
						8
					YCBCR 4:2:2	12
		3840×2160	1920 x 1080	120p/119.88p/100p	RGB/YCBCR 4:4:4	12
						10
						8
					YCBCR 4:2:2	12
					YCBCR 4:2:0	12
						10
						8
Audio Format
L-PCM: 8ch(max) 32kHz / 44.1 kHz / 48kHz / 88.2kHz / 96kHz / 176.4kHz / 192kHz, 16bit / 20bit / 24bit
AAC LC: 6ch(max), 32kHz / 44.1 kHz / 48kHz / 96kHz, 576kbps(max)
DTS: 6ch(max), 44.1 kHz / 48kHz, 1536kbps(max)
AC-3: 6ch(max), 32kHz / 44.1 kHz / 48kHz, 640kbps(max)
DSC	Resolution	Frame Rate	Colorimetry	Bit	FRL Rate
DSC	Resolution	Frame Rate	Colorimetry	Bit	12G/4L	10G/4L	8G/4L	6G/4L	6G/3L	3G/3L
OFF	7680 × 4320	60/59.94/50p	YCBCR 4:2:0	12	●
				10	●	●
				8	●	●	●
		30/25p	RGB/YCBCR 4:4:4	12	●
		30/25/24p	RGB/YCBCR 4:4:4	10	●	●
			RGB/YCBCR 4:4:4	8	●	●	●
			YCBCR 4:2:2	12	●	●	●
	3840 × 2160	120/100p	RGB/YCBCR 4:4:4	12	●
				10	●	●
				8	●	●	●
			YCBCR 4:2:2	12	●	●	●
				10	●	●	●
				8	●	●	●	●
ON	7680 ×　4320	60/59.94/50p	RGB/YCBCR 4:4:4	8	●	●	●	●
			YCBCR 4:2:2	12	●	●	●	●
			YCBCR 4:2:0	12		●	●	●
				10			●	●
				8				●
		30/25/24p	RGB/YCBCR 4:4:4	12		●	●	●	●
				10			●	●	●
				8				●	●
			YCBCR 4:2:2	12				●	●	●
	3840 × 2160	120/100p	RGB/YCBCR 4:4:4	12		●	●	●	●
				10			●	●	●
				8				●	●
Items	Description
HDMI	Dot Clock	25MHz to 2376MHz
	Color Format	RGB, YCBCR 4:4:4/4:2:2/4:2:0
	Color Depth	8, 10, 12-bit
	Audio Sampling Frequency	32kHz to 192kHz (L-PCM 2 to 8ch) IEC60958, 61937
	HDCP	Ver. 1.4/2.3
	E-EDID	Ver. 1.4 (DDC2B)
	External Supplying Power	5V /Max. 50mA
Power Requirements	AC 100 - 240V
Power Consumption	100W MAX
Dimensions	330(W)x44(H)x250(D)mm　(excluding protrusions)
Weight	Approx. 2 kg
