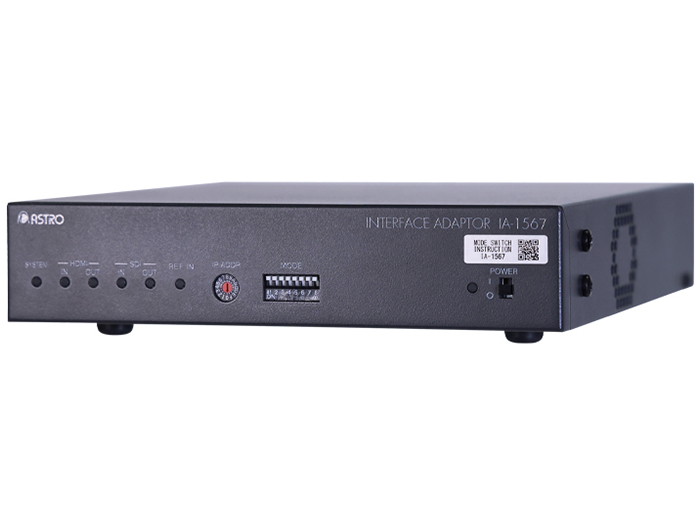

IA-1567 is an interface adapter that can convert between HDMI 2.1 and 12G/6G-SDI signals that support 8K and 4K.

For purchasing information

Enquire Now

Overview
Specifications

IA-1567 is an interface adapter that can convert between HDMI 2.1 and 12G/6G-SDI signals that support 8K and 4K.

It can be used to connect SDI devices to 8K TVs or 4K120Hz monitors, or to connect game consoles or GPUs to SDI devices.

Key Features

Mutual conversion between HDMI 2.1 and 12G/6G-SDI
Small size and light weight
3D LUT function

Supports various formats

7680×4320 (2SI) 60p/59.94p/50p/30p/29.97p/25p/24p/23.98p
7680×4320 (SQD) 60p/59.94p/50p
4096×2160 (2SI) 60p/59.94p/50p/48p/47.95p
3840×2160 (2SI) 120p/119p/100p/60p/59.94p/50p/48p/47.95p
3840×2160 (O/E) 120p/119p/100p (60p/59.94p/50p x2)

SDI I/O
Format	Link	Resolution	Frame Rate					Sampling Structure/ Pixel Depth	Interface	Related Standards
8K	Quad	7680×4320	60p/59.94p/50p					YCBCR 4:2:2 10bit	12G-SDI Type1 2SI	SMPTE ST 2082-1/12
	Quad(SQD)	7680×4320	60p/59.94p/50p					YCBCR 4:2:2 10bit	12G-SDI Type1 4K(2SI)×4	SMPTE ST 2082-1/10
	Dual	7680×4320	30p/29.97p/25p/24p/23.97p					YCBCR 4:2:2 10bit	12G-SDI Type1 2SI	SMPTE ST 2082-1/11
	Quad	7680×4320	30p/29.97p/25p/24p/23.97p					YCBCR 4:2:2 10bit	6G-SDI Type1 2SI	SMPTE ST 2081-1/12
4K	Quad	3840×2160	120p/119.88p/100p					YCBCR 4:2:2 10bit	6G-SDI Type1 2SI	SMPTE ST 2082-1/12
	Dual	3840×2160	120p/119.88p/100p					YCBCR 4:2:2 10bit	12G-SDI Type1 2SI	SMPTE ST 2082-1/11
	（Odd/Even）	3840×2160	120p/119.88p/100p					YCBCR 4:2:2 10bit	12G-SDI Type1 2SI×2	SMPTE ST 2082-1/10
	Single	4096×2160	60p/59.94p/50p/48p/47.95p					YCBCR 4:2:2 10bit	12G-SDI Type1 2SI	SMPTE ST 2082-1/10
	Single	3840×2160	60p/59.94p/50p/48p/47.95p					YCBCR 4:2:2 10bit	12G-SDI Type1 2SI	SMPTE ST 2081-1/10
HDMI2.1 I/O
Format	Resolution	Frame Rate	Sampling Structure/ Pixel Depth	FRL Rate　 ✔：Supported					TMDS	Remarks
Format	Resolution	Frame Rate	Sampling Structure/ Pixel Depth	10G/4L	8G/4L	6G/4L	6G/3L	3G/3L	TMDS	Remarks
8K	7680×4320	60p/59.94p/50p	YCBCR 4:2:0 10bit	✔						HDCP:Not supported DSC:Not supported Related standards：CTA-861-G
		60p/59.94p/50p	YCBCR 4:2:0 8bit	✔	✔
		30p/29.97p/25p/24p/23.97p	RGB 4:4:4 10bit	✔
		30p/29.97p/25p/24p/23.97p	RGB 4:4:4 8bit	✔	✔
		30p/29.97p/25p/24p/23.97p	YCBCR 4:4:4　10bit	✔
		30p/29.97p/25p/24p/23.97p	YCBCR 4:4:4　8bit	✔	✔
		30p/29.97p/25p/24p/23.97p	YCBCR 4:2:2 10bit	✔
		30p/29.97p/25p/24p/23.97p	YCBCR 4:2:2 8bit	✔	✔
		30p/29.97p/25p/24p/23.97p	YCBCR 4:2:0 10bit	✔	✔	✔
		30p/29.97p/25p/24p/23.97p	YCBCR 4:2:0 8bit	✔	✔	✔	✔
4K	3840×2160	120p/119.88p/100p	RGB 4:4:4 10bit	✔
		120p/119.88p/100p	RGB 4:4:4 8bit	✔	✔
		120p/119.88p/100p	YCBCR 4:4:4 10bit	✔
		120p/119.88p/100p	YCBCR 4:4:4 8bit	✔	✔
		120p/119.88p/100p	YCBCR 4:2:2 10bit	✔
		120p/119.88p/100p	YCBCR 4:2:2 8bit	✔	✔
		120p/119.88p/100p	YCBCR 4:2:0 10bit	✔	✔	✔
		120p/119.88p/100p	YCBCR 4:2:0 8bit	✔	✔	✔	✔
	4096×2160 3840×2160	60p/59.94p/50p/48p/47.95p	RGB 4:4:4 10bit	✔	✔	✔
		60p/59.94p/50p/48p/47.95p	RGB 4:4:4 8bit	✔	✔	✔	✔		✔
		60p/59.94p/50p/48p/47.95p	YCBCR 4:4:4 10bit	✔	✔	✔
		60p/59.94p/50p/48p/47.95p	YCBCR 4:4:4 8bit	✔	✔	✔	✔		✔
		60p/59.94p/50p/48p/47.95p	YCBCR 4:2:2 10bit	✔	✔	✔	✔		✔
		60p/59.94p/50p/48p/47.95p	YCBCR 4:2:2 8bit	✔	✔	✔	✔		✔
		60p/59.94p/50p/48p/47.95p	YCBCR 4:2:0 10bit	✔	✔	✔	✔		✔
		60p/59.94p/50p/48p/47.95p	YCBCR 4:2:0 8bit	✔	✔	✔	✔	✔	✔
Audio Performance
Sample Frequency		48kHz
Quantization		24bit
Number of Audio Channels		Max 32ch（HDMI Up to 8ch）
Reference Input
Format		Black Burst Input (Compliant with EIA RS-170A） Tri-Level Sync Input（Compliant with SMPTE 240M/274M/296M）
General Specifications
Power Requirements		DC 12V
Power Consumption		45W MAX
Operating Temperature Range		5～40℃
Operating Humidity Range		20～80％RH (no condensation)
Dimensions		210(W) × 44(H) × 210(D)mm(Excluding protrusions)
Weight		Approx. 2.0 kg
