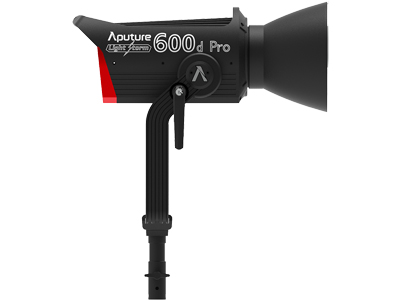

Aputure Light Storm 600D Pro V-Mount Kit

Code: KAY/24.LS600D

The LS 600D Pro is a powerful COB LED fixture with expansive power and control options and output comparable to a 1200W HMI. The precision fixture has a solid 5600K colour temperature with a high CRI/TLCI rating of 95 that is great for location shooting outdoors, or in areas dominated by other daylight-balanced fixtures such as HMIs.

For purchasing information

Enquire Now

The LS 600D Pro is a powerful COB LED fixture with expansive power and control options and output comparable to a 1200W HMI. The precision fixture has a solid 5600K colour temperature with a high CRI/TLCI rating of 95 that is great for location shooting outdoors, or in areas dominated by other daylight-balanced fixtures such as HMIs.

Besides power, control is a driving force in the design of the 600D.The light also has a myriad of wireless control methods, including Aputure's 2.4GHz remote, the Sidus Link mobile app, and the built-in wireless DMX control. While you can make adjustments locally on the fixture, you can also make them wirelessly from 0 to 100% at a distance via any of these methods - a real attribute for lights mounted overhead or in hard to reach places.

The 600D is IP54 weatherproof (dust and water resistant), so it is built to withstand any shooting environment and is compatible with a the separately-sold 4-way barndoors and F10 Fresnel. Among its other impressive features are eight built-in lighting FX: Paparazzi, Fireworks, Lightning, Faulty Bulb, TV, Pulsing, Strobe, and Explosion

Production Ready

Every aspect of the LS 600d Pro was designed with professionals in mind, with incredible output, a weather-resistant construction, a wide variety of power options, and professional level lighting controls, including Sidus Link, Art-net, and Wireless DMX. This is the LS 600d Pro, and it’s ready to blow away traditional lighting.

Unmatched Brightness

Equipped with its native Hyper-Reflector, the 600d Pro can output 8,500 lux at 3 meters (10 feet). With the F10 Fresnel modifier, the combination can reach an illuminance of 29,300 lux at 3 meters in 15° spot. With a maximum power draw of 720W, the 600d Pro is on par with industry-standard HMI lights.

Weather-Resistance

The LS 600d Pro is the first Light Storm fixture, and the first Bowens Mount LED to feature a weather-resistant design. Using waterproof fans, sealed internal structures, rubber caps for all ports, and weatherproof connectors, the LS 600d Pro can withstand various inclement weather environments.

0.1% Stepless Dimming

The 600d Pro is the first product in the Light Storm series to not only feature enhanced, smooth, stepless dimming but also light control in tiny 0.1% increments, ensuring that you get the exact amount of light that you need.

Professional Control

In addition to its responsive on-board controls, 2.4G remote, DMX512 5-Pin XLR In and Out, and Sidus Link® app compatibility, the LS 600d Pro is the first-ever Aputure light to support ArtNet and LumenRadio wireless DMX compatibility.

Impeccable Colour

With high colour accuracy measurements of CRI≥96, TLCI≥96, CQS≥95, and an SSI (D56) score of 72, the 600d Pro provides consistently accurate white light for indie filmmakers and professionals alike, upholding a color temperature standard of 5600±200K.

Intelligent Power

The LS 600d Pro utilises the most advanced power system in the LED marketplace, featuring a standard 3-pin XLR 48V (15A) DC input, as well as multi-voltage V-Mount or Gold Mount battery plates, allowing users to high-output 14.4V, 26V, 28.8V* batteries.

Battery Charging Functionality

When the LS 600d Pro is plugged into AC power, it becomes the first fixture that can double as a high-intensity light and a backup charger for V-Mount & Gold Mount batteries. This revolutionary technology from the 600d Pro opens up a wide variety of options for any filmmaker.

4 Dimming Curves

The LS 600d Pro, like the other recent additions to the Light Storm lineup, has four different dimming curve options. Each of these dimming curves has a unique output behaviour to tailor each light and its cues to each technician and situation at hand.

Built-In Lighting Fx

The LS 600d Pro can utilise 8 different built-in light effects: "Paparazzi", "Fireworks", "Lightning", "Faulty Bulb", "TV", "Pulsing", "Strobe", and "Explosion". The 600d Pro also has the potential to expand further into the SidusPro FX ecosystem.

Active Cooling

The ultra-quiet and powerful heat-conducting fan allows the lamp to move large volumes of air to dissipate heat at ≤30 decibels at 1 meter, and does not cause excessive noise interference on your film set.

Run-And-Gun Operation

By using LED technology and separating the lamp head and control box, the LS 600d Pro’s optimised lamp head weighs only 4.3kg (9.48lbs), making it lightweight enough to be suitable for baby pin light stands, with the same Dual Junior/Baby Pin found on the Nova P300c and the Spotlight Mount.

Bowens Mount

Continuing Aputure’s philosophy of modular lighting control, the 600d Pro’s Bowens Mount makes it compatible with Aputure’s lighting modifiers like the F10 Fresnel, Light Dome II, Spotlight Mount, and Lantern 90, but also third-party accessories from companies like DoPchoice and Chimera Lighting.

Due to its intense output, the LS 600d Pro is not compatible with all modifiers in their original configuration.

Advanced UI

The LS 600d Pro is also the first Aputure fixture to utilise a detailed LCD screen interface, allowing users to making operating the light incredibly straightforward.

Durable Transport Case

The LS 600d Pro comes standard with a durable carrying case that features wheels and a telescoping handle, making transporting the fixture to and from set a breeze.

Sidus Link Ecosystem

Sidus Mesh integration allows the 600d Pro to be controlled from nearly any smartphone or tablet with the Sidus Link mobile app up to 400 meters away with the addition of other fixtures, including the Aputure LS C300d II, LS 300x, Accent B7c, MC, and Nova P300c.

CCT 5600K±200K
CRI ≥96
TLCI ≥96
CQS ≥94
SSI (D55) ≥72
Beam Angle 105°
Beam Angle (600 Series Hyper Reflector) 55°
Power Consumption ≤720W
Operating Current 8A
Operating Voltage (Power Supply) 100V~240V, 50Hz/60Hz
Operating Voltage (Battery): V-Mount / Gold Mount (Two Batteries) Half Output 12.5V-16.8V (14.4/15A) 22V-33.6V (26V/8.5A, 28.8V/7.5A)
Operating (Battery): Voltage V-Mount / Gold Mount (Two Batteries) Full Output 22V-33.6V (26V/18A, 28.8V/16A)
Operating Voltage (3-Pin XLR [48V DC]) 48V/15A
Battery Charging (Voltage) 16.8V/29.4V
Battery Charging (Amperage) 3A
Operating Temperature -20°C~45°C
Control Methods On-board, 2.4GHz, Sidus Link (Sidus MeshTM), Art-net, LumenRadio
Wireless Operating Range (2.4GHz) ≤100m
Wireless Operating Range (Bluetooth) ≤80m
Wireless Operating Range (LumenRadio) ≤100m
Screen Type Adaptive Brightness LCD
Firmware Upgradeable USB (FAT16/FAT32), Sidus Link OTA
Cooling Method Active Cooling
Weatherproofing Dust & Light Rain Resistant
Cable Type: Max Head Cable Length 6m
Cable Type: Power Cable Neutrik® powerCON AC Power Cable (6m)
Accessory Mount Bowens Mount
Mounting 16mm / 28mm | 5/8in (Baby Pin) / 1.125in (Junior Pin)
Carrying Case 16mm / 28mm | 5/8in (Baby Pin) / 1.125in (Junior Pin)
Weight: Lamp Head w/ Yoke 4.64kg / 10.23lbs
Weight: Control Box (V-Mount) 5.8kg / 12.79lbs
Weight: Control Box (Gold Mount) 5.8kg / 12.79lbs
Weight: Lightning Clamp 670g / 1.48lbs
Weight (Total w/ Case) 18.2kg / 40.12lbs
Dimensions: Lamp Head w/o Yoke 30.8*15.61*15.01cm / 12.13*6.15*5.91in
Dimensions: Lamp Head w/ Yoke 30.8*25.03*45.6cm / 12.13*9.85*17.95 in
Dimensions: Control Box (V-Mount) 32.41*17.9*14.28cm / 12.76*7.05*5.62in
Dimensions: Control Box (Gold-Mount) 32.41*17.9*13.27cm / 12.76*7.05*5.22in
Dimensions: Lightning Clamp 10.35*8.74*12.5cm / 4.07*3.44*4.92in
Dimensions: Case 62.5*43.5*39cm / 24.61*17.13*15.35in
Photometrics
Distance 1m 3m 5m
Bare Bulb (105°) 22,150 (lux) 2,600 (lux) 1,020 (lux)
Bare Bulb (105°) 2,058 (fc) 242 (fc) 95 (fc)
Hyper- Reflector (55°) 98,500 (lux) 8,500 (lux) 3,000 (lux)
Hyper- Reflector (55°) 9,150 (fc) 790 (fc) 280 (fc)
F10 Fresnel (Flood 45°) 89,200 (lux) 11,440 (lux) 4,260 (lux)
F10 Fresnel (Flood 45°) 8,289 (fc) 1,063 (fc) 395 (fc)
F10 Fresnel (Spot 15°) 224,200 (lux) 29,300 (lux) 10,580 (lux)
F10 Fresnel (Spot 15°) 20,836 (fc) 2,723 (fc) 983 (fc)
